state, whereas a parameter with varying states could have many different enumeration values.
(For further details on Enumeration and how to create the different states, refer to section 4.9 in the
Administration section).
Units - Select the unit of measurement for the parameter from the list.

2.1.3 Switches

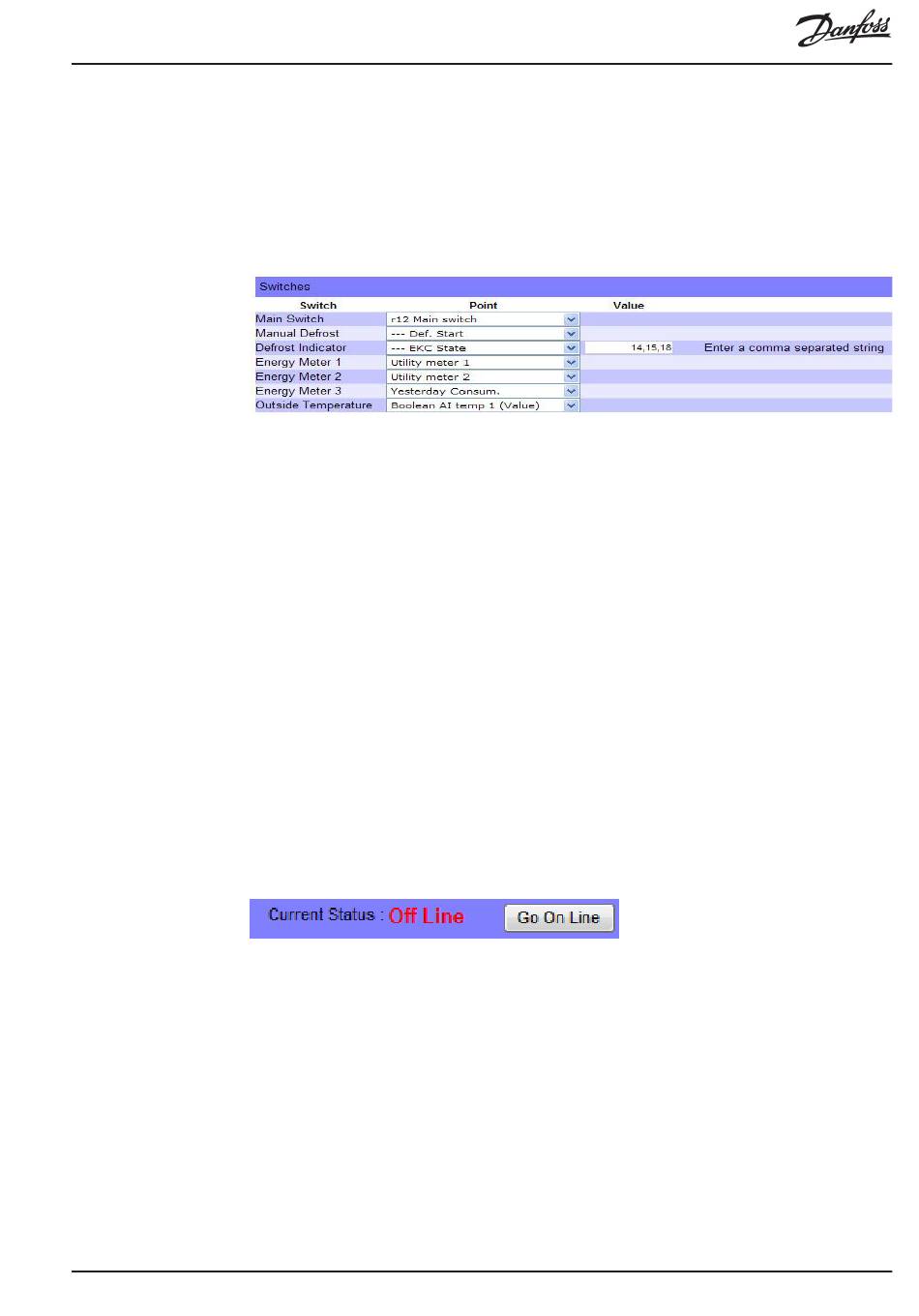

There is a separate Switches parameter heading at the bottom of the Asset Configuration page which
relates to the functional switches of the controller itself, such as the main switch and defrost switch, which
are used in the Store Mimic (refer to section 3).
Main Switch relates to the main switch on the controller, and should be connected to the main switch
parameter which will already have been diagnosed and enumerated, and can be found by finding the
parameter under the group heading from the drop down menu.
Manual Defrost follows the same procedure as the Main switch, in that it should be linked to an already
enumerated parameter. Again, the parameter is found under one of the parameter headings found in the
drop down menu.
Defrost Indicator indicates which parameter indicates a defrost state. The defrost Indicator should have
already be set up and then selected from the drop down list which contains only selected log files relevant
to HACCP reports. The value would then be the relevant enumeration setting or settings and should be
entered numerically, separated by a comma, so that when a defrost cycle takes place, a defrost symbol will
be shown in the HACCP reports, and not fluctuating temperature values brought on by a defrost cycle.
Energy Meter 1 displays as the first available "Point" on the "Energy Consumption" page.
Energy Meter 2 displays as the second available "Point" on the "Energy Consumption" page.
Energy Meter 3 displays as the third available "Point" on the "Energy Consumption" page.
Outside Temperature displays as the "Outside Temperature" point on the "Energy Consumption" page.

2.1.4 Go On Line

This option allows you to work off line, so that you can configure assets from any location without any
interference from updating data.
Press the button to work off line and then again for vice versa. Values or settings that have been edited
while off line will be displayed beside the old value and will update once the status is changed to 'On Line' .

2.1.5 Copying an Asset

When an asset has been finally edited, there is an option of copying the settings and applying them to
those assets that are of similar version and code ID. This function saves you a lot of time and effort by not
having to go through every single asset separately.
1. Click on the 'Copy Asset' button.
2. Select the asset from which you will copy from the list at the top of the page.
3. When selected, the destinations box will be populated automatically with similar assets to that of
the selected one. Select the asset which you wish to copy to, or select the 'All' box to select all of the
assets.
