3.9.2 Add an Annotation

Annotated text can be added to a mimic and works in a similar manner as adding an image, and can also
be used as links to other mimics.
1. Right click on the mimic and select 'Fixed' / 'Annotation' from the menu.
2. Type the text in the top field of the menu.
3. Select a colour for the text.
4. Select a font size.
5. Choose a link from the middle list if you want the text to act as a link to another mimic, template or
report, or leave blank.
6. Enter text for the tool tip and press 'OK' to display and reposition the annotation by dragging it to a
new location.

3.9.3 Adding a parameter

1. Select 'Dynamic' / 'Parameter' to add a point.
2. Go through the normal stages as you did for a template (section 3.6.1), where this time the asset's
point will be the actual point which will be displayed.
3. Check the box to add the parameter's name to the value when 'live' .

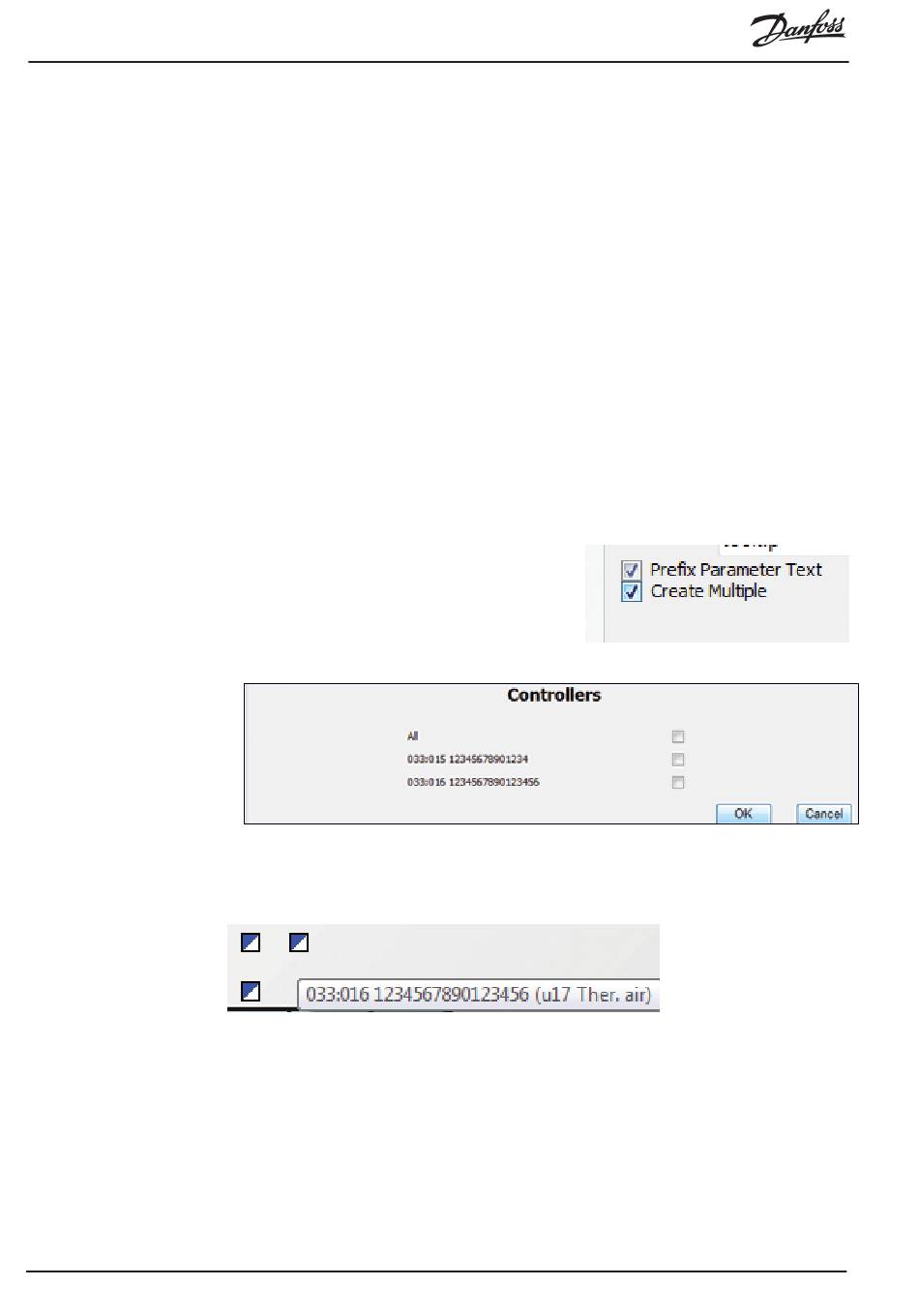

4. Underneath this there is an extra option called 'Create
Multiple' . This allows you to view the same point across
all assets which share the same Code ID and Version
number. This is instead of having to create the same
number points many times for different assets manually.
5. When selected, you will be shown the screen of all similar assets
6. Select either 'All' the assets or choose them individually and press the OK button.
7. All of the parameters will then be displayed together and can be moved around the mimic
individually.

3.9.4 Add an Alarm

When an alarm is activated, an alarm bell icon will be displayed on the mimic for an asset. When the alarm
icon is clicked in the 'live' view, it will display the current alarm list for that asset. When the site is live, the
alarm will remain hidden until raised.
1. Right click on the mimic and select 'Dynamic' / 'Alarm' from the menu.
2. Select the asset in the drop-down list.
3. Like the adding of multiple parameter points described in the previous section, so too can multiple
alarms be created. Check the 'Create Multiple' box and from the next screen select the assets which
you would also like to view the alarms for.
4. When the site is live, the alarm will remain hidden until raised.
