3. Configuration of UI

3.1 Overview

3.2 Create Store Name

22 RC8BX402
Once the general set up has been completed, the final part of the system configuration process is the User
Interface of the store via the Store mimic.
The Store Mimic is a visual representation of a store which displays the readings of all the assets and
their controllers contained within the store. Once set up, it provides an overall view of the store and its
individual assets in real time, providing up-to-date informations due to automatic refreshes. The Store
Mimic allows you to see at a glance if there are any assets in a state of alarm and act upon them quickly.
The Mimic is set up by importing a series of ready made template and images. This saves time and effort
as there is no need to create individual mimics from scratch. Templates allow predefined mimics (such as
freezer units) to be imported, which then only have to be linked to the main mimic, as well as individual
assets to be configured to them.

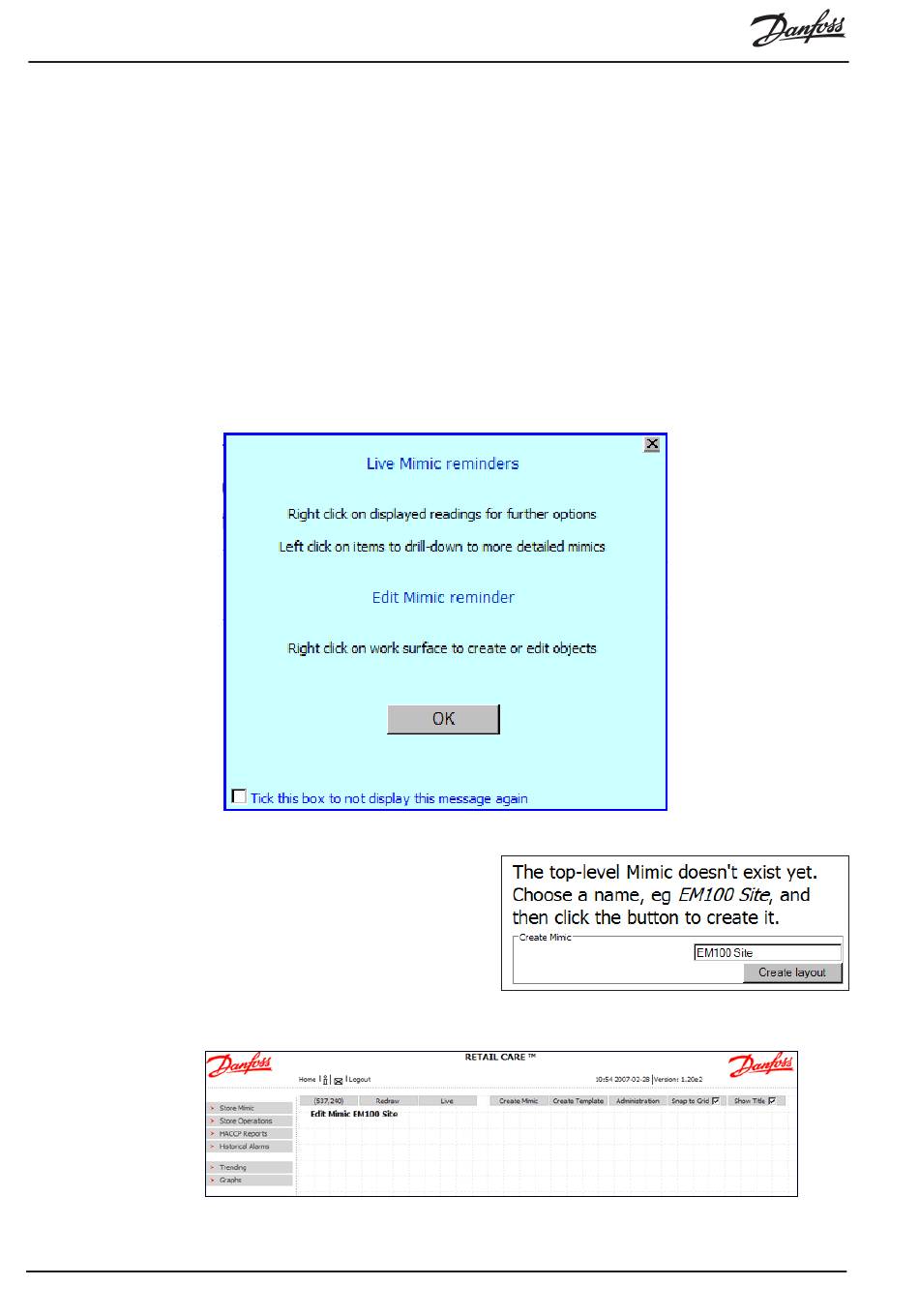

The first task when the store mimic is accessed is to give the site a name. When the 'Store Mimic' button
is pressed, a reminder will be displayed which will give you helpful options for viewing and editing the
mimics. The reminder can be turned off by ticking the box in the bottom right corner.
There will be a dialogue box prompting you
to name the top most mimic, which should
typically be the floor plan of the store.
Enter the name in the dialogue box and press
the 'Create Layout' button.
When the name is set, you will be presented
with a blank page in Edit mode. The first thing
to do now is to upload all of the necessary
templates and images which will be used to create the mimic.
