1.5 Log Files

AK-EM 100 Installation Guide
Viewing Log files is available on the ADAP-KOOL® and System Manager gateways. Log files contains
the list of points which are to be monitored from an asset's controller and will therefore be available to
adjust in the Asset Configuration (section 3.1) and view in the Store Mimic. Selected points which are
to be assigned to log files will also be automatically assigned to Trending and HACCP reports.

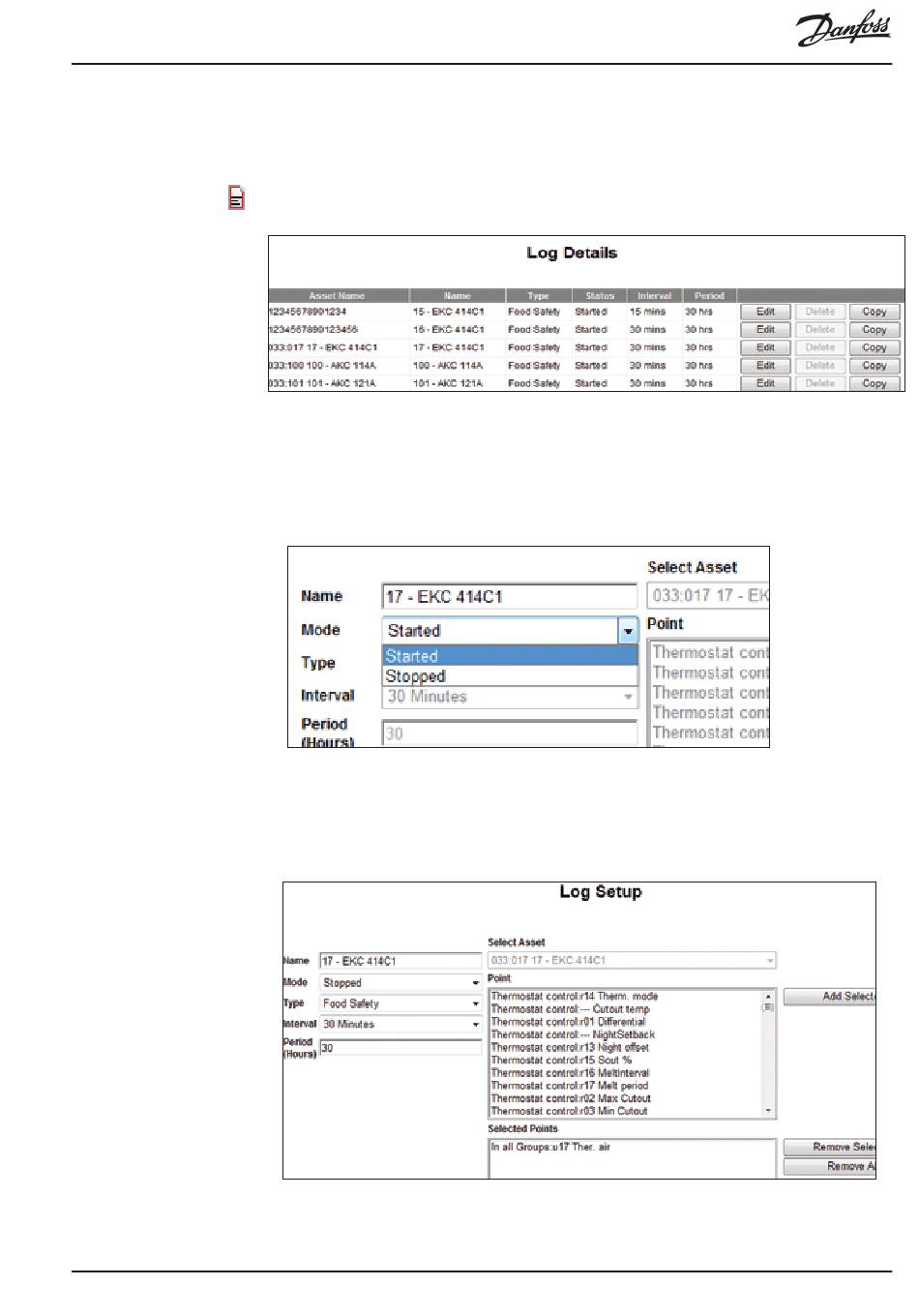

Log files are normally added into the Gateway and are then available to view once the data runs have
been complete. Clicking on the log icon (left) of an asset will take you to the Log Details page for that
asset, while clicking on the topmost log details icon will show you the Log Details page for all assets
together.

1.5.1 Editing Log Files

1. When viewing an assets' log details, press the 'Edit' button to show the logs' details.
2. This will show the log name, what parameters are available for log selection, the current status,
type (Service or Food Safety), interval and period of time for logging. To edit a log, the Mode (or
status) must be changed to 'Stopped' and saved first before editing can begin. This will enable the
'Edit' button on the Log Details page.
3. Points can be added or removed to the Selected Points list for logging by either double clicking
on the points or selecting then pressing the Add or Remove buttons.
4. The name, log type interval and period can now also be changed. Once the points have been
added/removed, make sure that the Mode is changed back to 'Started' before saving. Once saved, it
log will be updated in the Log Details list.
