Appendix B: Installation Guide

The AK-EM 100 unit

Installation

50 RC8BX402
This section will describe how to install an AK-EM 100 on site for the first time when used in
conjunction with an ADAP-KOOL®, AK-SC 255 or System Manager gateways, in order to extract data
concerning the monitored refrigeration control system within the store.
The AK-EM 100 contains a web server that provides an interface to the electronic control equipment fitted
in a store. The AK-EM 100 communicates directly with via a RS232 connection or by a LAN connection, if the
Gateway is fitted with a DigiOne box.
The sections below describe how to communicate with an AK-EM 100 to extract data from the system.

Hardware Setup

Plug the AK-EM 100 into the mains network and connect the AK-EM 100 to a keyboard, mouse, monitor and
network cable.

Set up mini network

When the image has been successfully moved across, use the hub/switch to connect the AK-EM 100 to a
laptop. The Network cable must be in port number 1.

Set IP Address

This can be done via the Commissioning Toolbox once logged on to the AK-EM 100 (refer to the Establish
Network Connection section of the manual).

Verify Remote access via network

If no network is available, set up mini network as described in point 3.

Connect to the Gateway

When the physical installation is complete, log on to the AK-EM 100.

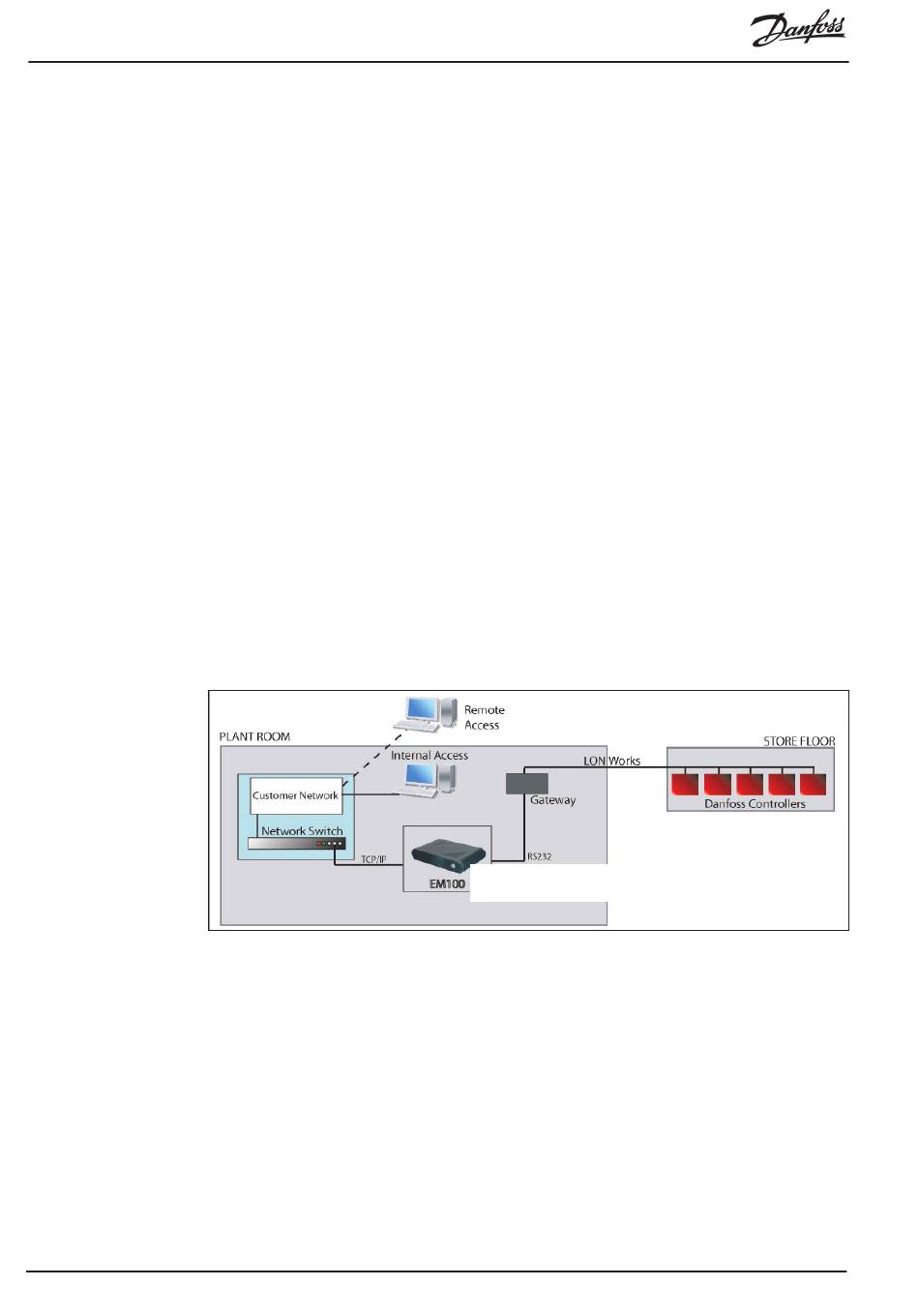

A typical layout of the AK-EM 100
within a store
