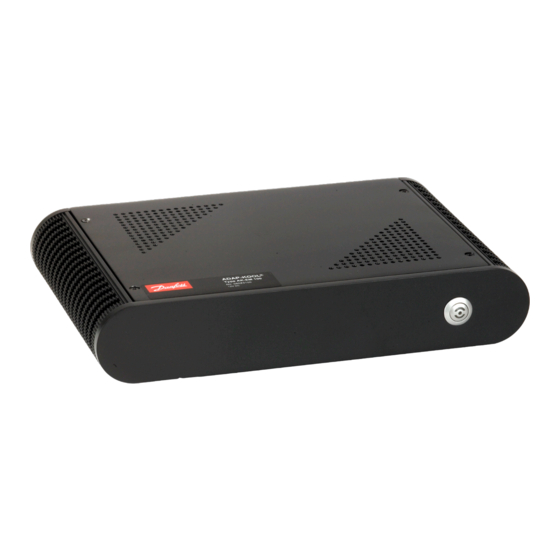

- Page 1 Store Configuration Guide AK-EM 100 REFRIGERATION AND Installation guide AIR CONDITIONING...
-
Page 2: Table Of Contents
3.3 Uploading Templates and Images ..........23 8. Commissioning Quick Task List .............47 3.3.1 Importing Templates ............23 9. AK-EM 100 Technical Specification ............48 3.3.2 Importing Images ..............23 Appendix A: Time Change Reboot ............49 3.4 Adding background image to the Top Level Mimic ....23 Appendix B: Installation Guide ..............50... -
Page 3: Introduction
Introduction The AK-EM 100 provides a web based graphical user interface of a store which allows a range of daily users to monitor data, alarms and reports, either locally or remotely, regarding all of their refrigeration equipment. Advantages of the AK-EM 100 •... -
Page 4: Establish Network Connection
The Gateway Details section contains information regarding the set up of the Gateways. From here, multiple gateways can be added and configured to the AK-EM 100, as well as the connection addresses to the gateway. There is also a link to the advanced settings options. -
Page 5: Site Details
When the AK-EM 100’s site details are entered, the next task is to add the Gateways. An AK-EM 100 is capable of having up to 2 types of gateways attached at any one time. The gateways comprise of: * ADAP-KOOL®... -
Page 6: Adding An Adap-Kool® Gateway
On the ADAP-KOOL® gateway, clicking on the ‘Advanced’ link will take you to the Network List. Once the gateway has been connected to the network and the assets have been established, it will produce a table of all of the current assets connected to the gateway. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 7: Adding Additional Gateways
Fields with a pink background need to be filled out to allow it to be saved. The new gateway will be added to the Gateway Details. Use the scroll buttons to view the different gateways. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 8: Adding A System Manager Gateway
1. Scroll through to the desired gateway 2. Make sure that there are no connections to any controllers by stopping the network uploads or communications (see next section). Then press the ‘Delete’ button. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 9: Network Communications
3. Wait until the Network Upload is complete; this will take some time depending on the amount of assets attached to the controller. The status will change to Stopped and assets will be displayed in the Network list table. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 10: Network Comms
1.4.2 Network Comms The next stage is to start the data collection from the available controllers. 1. To start gathering the data to the AK-EM 100, press the ‘Start’ button to connect and run the available alarm, configuration, and data runs. -
Page 11: Log Files
4. The name, log type interval and period can now also be changed. Once the points have been added/removed, make sure that the Mode is changed back to ‘Started’ before saving. Once saved, it log will be updated in the Log Details list. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 12: Creating New Log Files
Logs can only be deleted from the Gateway once the Mode has been stopped In the Log setup page. When stopped, the delete button is made available. When pressed, you will be given a warning about deleting. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 13: Network Communications
User Administration - Create users and groups g) Mimic Set up - Create the store UI h) Restore Configuration - Restore the configuration of the AK-EM 100 to a back up configuration i) Modem Settings - set the modem address and user name for remote access 2.1 Asset Configuration... -
Page 14: Configuring An Asset
The type of enumeration required is determined by the parameter’s setting, where a boolean value (either true or false) would typically have a 2 AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 15: Switches
3. When selected, the destinations box will be populated automatically with similar assets to that of the selected one. Select the asset which you wish to copy to, or select the ‘All’ box to select all of the assets. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 16: Custom Files
1. Go to the Upload DES file link (refer to section 2.3 ), and from the drop down list select CUSTOM. This will then load the custom file into the CUSTOM folder in the AK-EM 100. 2. Browse to the custom DES file and press the ‘GO’ button. -
Page 17: Loading A New Des File
2. Browse to the location of the DES file. Make sure the DES file extension is in uppercase. 3. Press the ‘Go’ button to upload the file to the AK-EM 100. Once you are happy with the overall set up of the EM100, the settings can be saved as a means of safety 2.4 Save Configuration... -
Page 18: Restore Configuration
5. Press the ‘Save’ button at the bottom of the page when finished to store the group. Repeat the process for adding more groups. When the groups have been added, close the Group window. 2.6.2 Adding New Users AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 19: Adding New Users
The list of users can be displayed differently by clicking on the column headers to display them alphabetically. The modem settings section is where the set up connections to the AK-EM 100 are made for remote or on AK-EM 100 Installation Guide RC8BX402 ©... -
Page 20: Modem Settings
Normally, the image which is copied across to the AK-EM 100 when it is being installed will contain the IP settings and user name and password. -
Page 21: Print Asset Details
This option allows you export every asset’s details into an XML page. Wait for the details to be gathered and then right click on the link to save locally as a hardcopy. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 22: Configuration Of Ui
When the name is set, you will be presented with a blank page in Edit mode. The first thing to do now is to upload all of the necessary templates and images which will be used to create the mimic. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 23: Uploading Templates And Images
2. Press the ‘Edit’ button and right click anywhere on the empty mimic and select ‘Background’ / ‘Select’ . 3. Choose the store layout image from the list of background images you have previously loaded and press the ‘OK’ button. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 24: Creating A New Template
2. As this is a template, no assets or their respective points can be called as a mimic from a template could reference any number of assets. Instead, Assets and parameters are available to act as a guide AK-EM 100 Installation Guide RC8BX402... -
Page 25: Adding An Alarm
For example, if an asset’s parameter has three different states depending on its value, then an image can be used as a visual representation for each state. 1. Right click on the mimic and select ‘Dynamic’ / ‘Multivalue’ from the menu. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... - Page 26 When ‘OK’ is pressed, the dialogue box will change (and allow you to show the graphical image for each state by pressing the ‘Show’ button. When ‘OK’ is pressed again, the multivalue signature will change to the default image. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011...
-
Page 27: Adding A Fixed Image
Right clicking on the text allows you to edit the text or remove it. 3.6.6 Adding a Background Refer to section 3 .5 Creating a Template for adding a background to a template. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 28: Status Report
(see next page for example). When added to a mimic, the single object signature can signature be moved around as necessary. Once the templates (both Background and Object) are completed, then the mimics can be produced by selecting the ‘Create Mimic’ button while in ‘Edit’ view. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 29: Creating A Mimic Based Template
3. Choose a link from the list if you want the image to act as a link to another mimic or report or leave it blank for no links. 4. Enter the dimensions of the image. Leave blank for the default image size. 5. Enter text for the tool tip and press ‘OK’ . AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 30: Add An Annotation
Check the ‘Create Multiple’ box and from the next screen select the assets which you would also like to view the alarms for. 4. When the site is live, the alarm will remain hidden until raised. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 31: Add A Multivalue
‘Live’ view, all of the elements are shown as individual readings, images etc. Object Template Added to a mimic Live View AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... - Page 32 Template Object signature Once all of the mimics are completed, then all that needs to be done is to link the top level mimic to them all. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011...
-
Page 33: Mimic Administration
Exporting templates is a means of transferring a template to your local PC so that it can then be imported into other systems so that the same template can be reused over and over again, saving time by not having to recreate the same templates. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 34: Images Administration
This is the default page for Images, and from here you can look at every image available by either scrolling through the list by using the scroll buttons, or selecting an image from the drop down menu. AK-EM 100 Installation Guide RC8BX402... - Page 35 Give the image a Title in the appropriate text box, making sure to check the box if the image is to be used as a background. Then press the ‘Go’ button. List To view a list of all current images and their respective filenames, press the ‘List’ button. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011...
-
Page 36: Reset Site
Free standing mimcs (which have no references) can be deleted from the system. They can be selected individually from the list, or by pressing the ‘All On’ button to select them all. Press the ‘Delete Selected Mimics’ . AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 37: Administration Options
4. Administration Options The Administration section contains a variety of options for the general set up of the AK-EM 100, some of which will have more importance than others when setting up the store for the first time by a Commissioner or Technical Engineer. -
Page 38: Favourites And Settings
Role - Similar to the above, except it displays the pages alphabetically based on the user role. 4. Press the ‘GO’ button to display the report. Below is an example of the List report. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 39: Hide Alarm Times
2. Select a radio button to display all of the available phrases or those phrases that are currently not translated. 3. To search for a specific phrase or piece of text, use either the search arrows to scroll through the AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 40: Adding A New Phrase
Note: The import of phrases will either create new or update existing translations on the destination EM100. It will not remove or overwrite any translations that were not in the imported file. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 41: Food Types Configuration
HACCP report. Notice that when saved you have the option to delete it. This is because it has no parameters assigned to it, whereas the others in the example below have. To delete others, they must all be unassigned in the Asset Config section. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 42: Making Specific Reports
1. To add a new enumeration, enter a name in the top text field and press the ‘New’ button. It will then appear in the list alphabetically. 2. In the blank text boxes of the new enumeration, enter the a value and display name and press the ‘New’ button. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 43: Import/Export Enumerations
Refer to section 3 for more information regarding the set up of the Store Mimic. 4.11 Mimic Setup If there are any additional upgrades to be added to the AK-EM 100, such as new specifications, they can 4.12 Upload Patch be uploaded from here. -
Page 44: Initial Configuration Of Refrigeration System
Advanced Details provides a broader range of settings and measurements than Basic Details. Parameters are grouped logically under each tab. Settings are changed by clicking on a parameter value in an editable field with a white background. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 45: User Manuals
The manual will open within the same browser window as the EM100, so it is sugested that the manual is viewed in a separate window by using the right-click option for this. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 46: List Of Menu Options
Graphs - Displays a graph for one or more points over a user specified time. Points Commission Toolbox - This is where the majority of the configuration between the AK-EM 100 and the gateway takes place. Administration - The administration section contains different levels depending on access rights of the daily user. -
Page 47: Commissioning Quick Task List
The Commissioning Overview list is to provide a quick reference guide for the Commissioner and contains a list of tasks they would typically perform when installing the AK-EM 100 system after the physical connections are completed. The section following this task list provides a more detailed look at the procedures for each task. -
Page 48: Ak-Em 100 Technical Specification
9. AK-EM 100 Technical Specification • 1GHz VIA CPU • 1GB RAM • 40 GB hard disk • 1 10/100Mbit network • PSU supply 60W max • Operation Temperature 0 – 40°C • Operation Humidity 5 – 90% @40°C non-condensing... -
Page 49: Appendix A: Time Change Reboot
If the user has pop-ups blocked or if they close the window by clicking the ‘X’ on the top right, then the banner on the main web page will give the same warning. Again, the user has the option of waiting for 10 minutes or they can click the Re-boot Now button. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... -
Page 50: Appendix B: Installation Guide
The AK-EM 100 contains a web server that provides an interface to the electronic control equipment fitted in a store. The AK-EM 100 communicates directly with via a RS232 connection or by a LAN connection, if the Gateway is fitted with a DigiOne box. -
Page 51: Change History
Log section EM1729 20.11.08 018 Moved Installa- 1047 from 4 to was 1, tion of hard disk to App B App B 20.11.08 019 Additional Tasks New image and new Export menu item. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011... - Page 52 24.11.08 040 Add multivalue to Amended text to include EM1711 3.9.5 a mimic value range 25.11.08 041 Reset Site Removed ‘Remove All Con- 3.12.4 tent’ as no longer applicable. AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011...
- Page 53 Update image and procedure 19.05.11 058 Adding New Update image and addition 2.6.2 Users of Wk 1 field 19.05.11 059 Modifying Phrase Update image 4.7.1 19.05.11 060 Export/Import Addition of new section 4.7.3 translations AK-EM 100 Installation Guide RC8BX402 © Danfoss 05-2011...
