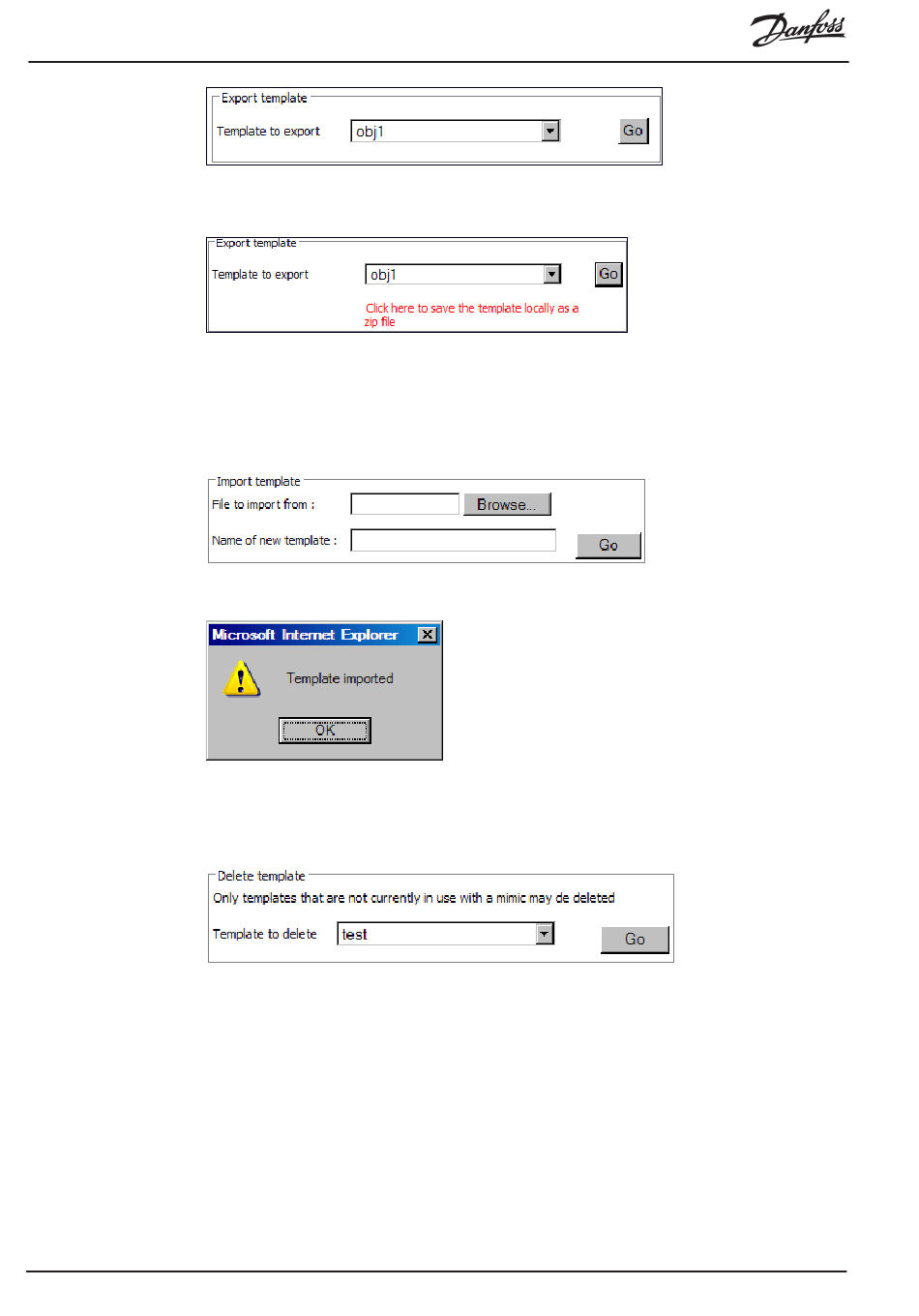

Select the Template to export from the list and press the 'Go' button. The list contains both templates and
object templates.
Wait a few moments and then click on the link and save the file locally as a zip file.
Import
Once templates have been exported as zip files, they can be imported to another store by clicking on the
'Import' button. Select the 'Browse' button and locate the zip file, then give the template a new name. Then
press the 'Go' button.
When done, a message will be displayed to say that the import has been import successfully, and the
template will be added to the template list.
Delete
Templates can be deleted from the system, but only those that are not in use in the store mimic can be
deleted.
Those that appear in the list are currently unattached, and so can be deleted.

3.12.3 Images Administration

In the images section, it is possible to export images locally, as well as import them to another store.
Images can also be renamed and listed.
Select
This is the default page for Images, and from here you can look at every image available by either scrolling
through the list by using the scroll buttons, or selecting an image from the drop down menu.
AK-EM 100 Installation Guide
34
RC8BX402
© Danfoss 05-2011
