Danfoss SonoMeter 30 User Manual

Ultrasonic energy meter for heating and cooling applications
Hide thumbs Also See for SonoMeter 30:
Table of Contents

Advertisement

Quick Links

See also: Installer and User Manual

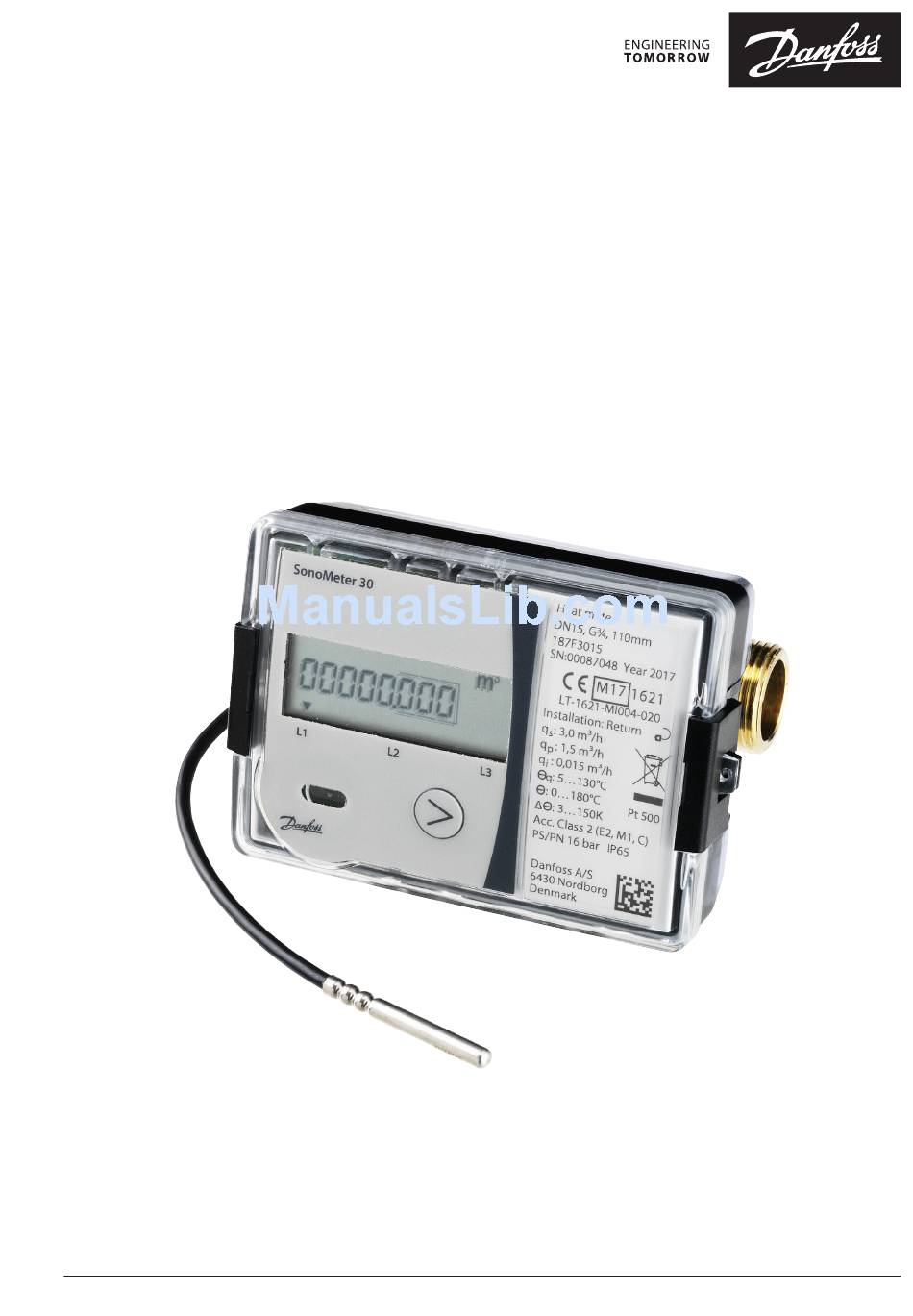

User guide
User guide
SonoMeter 30
SonoMeter 30
Ultrasonic energy meter
Ultrasonic energy meter
for heating and cooling applications
for heating and cooling applications
© Danfoss | 2018.01
VUIGI102 | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SonoMeter 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Danfoss SonoMeter 30

Summary of Contents for Danfoss SonoMeter 30

  • Page 1 User guide User guide SonoMeter 30 SonoMeter 30 Ultrasonic energy meter Ultrasonic energy meter for heating and cooling applications for heating and cooling applications © Danfoss | 2018.01 VUIGI102 | 1...

  • Page 2: Table Of Contents

    4.3 Menu structure ...................................6 4.4 Remote data reading ..............................13 5. Meter access and configuration ..................... 14 5.1 Jumper placement and optical head ..........................15 5.2 Pre-settings (delivery from factory) ..........................15 5.3 Software “SonoMeter30UserConfig” ..........................15 2 | VUIGI102 © Danfoss | 2018.01...

  • Page 3: Safety Information

    2. Application field The ultrasonic energy meter SonoMeter 30 is designed for measuring heating and cooling energy and the recording of data in two separate registers. It is intended for commercial accounting of energy consumption in objects of local or district heating systems: in dwelling houses, office buildings or energy plants.

  • Page 4: Onboard Communication Modules And Interfaces

    The optical interface starts work (is activated) only after pressing control button and automatically shuts down after 5 minutes, after the last pressing any button or after completing data transmission via interface. 4 | VUIGI102 © Danfoss | 2018.01...

  • Page 5: Supply Voltage

    ) service life not less than 11 years (without data reading via a digital interface) – for powering of the meter, when the external power supply is turned off - Mains supply 24V AC/DC module is mounted inside in the meter © Danfoss | 2018.01 VUIGI102 | 5...

  • Page 6: Operation Of Calculator

    (loop 1, ID1.1) are displayed if the button has not been pressed for more than 60 seconds. Full list of shown parameters is represented. For the specific meter it can be reduced via Software SonoMeter30UserConfig (see next chapter). 6 | VUIGI102 © Danfoss | 2018.01...
  • Page 7 Customer number via M-Bus protocol be modified by installing a meter with configuration software SonoMeter30 UserConfig. In the same way it is possible to 1.12 Control number switch off indication of irrelevant parameters. © Danfoss | 2018.01 VUIGI102 | 7...
  • Page 8 Registration Time: 23:59:59 Quantity of thermal energy for Changing with date stamp every 1 cooling on set day of previous second month with date stamp 8 | VUIGI102 © Danfoss | 2018.01...
  • Page 9 Maximum flow rate of previous Changing with date stamp every 1 2.17 month with date stamp second Maximum temperature in flow pipe Changing with date stamp every 1 2.18 of previous month with date stamp second © Danfoss | 2018.01 VUIGI102 | 9...
  • Page 10 36 previous months * LOOP 3 – informative parameters Thermal power Flow rate Temperature in flow pipe Temperature in return pipe Temperature difference Next replacement date of the battery 10 | VUIGI102 © Danfoss | 2018.01...
  • Page 11 In the same way it is possible to Similarly ID 3.11, only 3.12* If tariff function is not active display See 3.11 switch off indication of irrelevant „L1“,changes in the „L2“ shows: “L 2 OFF” parameters. © Danfoss | 2018.01 VUIGI102 | 11...
  • Page 12 * values of the parameters calculation error be modified by installing a meter with configuration software SonoMeter30 UserConfig. In the same way it is possible to 3.22 Battery operation time switch off indication of irrelevant parameters. 12 | VUIGI102 © Danfoss | 2018.01...

  • Page 13: Remote Data Reading

    - RF module 868 MHz - MODBUS RS485 module - BACnet RS485 All communication interfaces do not affect the measured parameters and their calculation, and therefore can be replaced by another type without removing of verification seal. © Danfoss | 2018.01 VUIGI102 | 13...

  • Page 14: Jumper Placement And Optical Head

    Microsoft Windows must have Microsoft NET FrameWork v3 installed. You can install SonoMeter 30 User - Config from SonoMeter 30 UserConfig.exe file. You will be asked to enter user name and your organization. 14 | VUIGI102...
  • Page 15 Finish to complete the installation. Fig. 5.6 Completing the setup 5.3.2 Software interface SonoMeter 30 UserConfig has four user interface windows for different purposes: - Actual: the actual data window; - LCD Menu: LCD configuration window. - Configuration: Configuration window for pulse channels, archive date and tariffs;...
  • Page 16 ID number (8 digits decimal number) M-Bus address M-Bus address (decimal number) Press the button to write time parameter to SonoMeter 30 device Press the button to write new SonoMeter 30 device ID number Press the button to write new SonoMeter 30 device M-Bus address 16 | VUIGI102 ©...
  • Page 17 LCD configuration from file. 5.3.2.3 Configuration window Device pulse channels, archive time values and tariffs are configured in the window Configuration. TEST mode needed. Fig. 5.9 Configuration window © Danfoss | 2018.01 VUIGI102 | 17...
  • Page 18 Device will archive information of 1 year duration measurements Archive month day Device will archive information of 1 month duration measurements Tariff thresholds Tariff ½ enable Tag to allow tariffs Threshold 1 / Threshold 2 Levels of selected trigger. 18 | VUIGI102 © Danfoss | 2018.01...
  • Page 19 Parameter Timestamp is date and time of archive record. Archive window fields Name Note Archive Field for archive data from device Make report Press the button to save data to xml or csv file © Danfoss | 2018.01 VUIGI102 | 19...
  • Page 20 SonoMeter 30 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary eady agreed.
