Terminal Diagram - Reflex Fillcontrol Auto Operating Instructions Manual

6.5.1

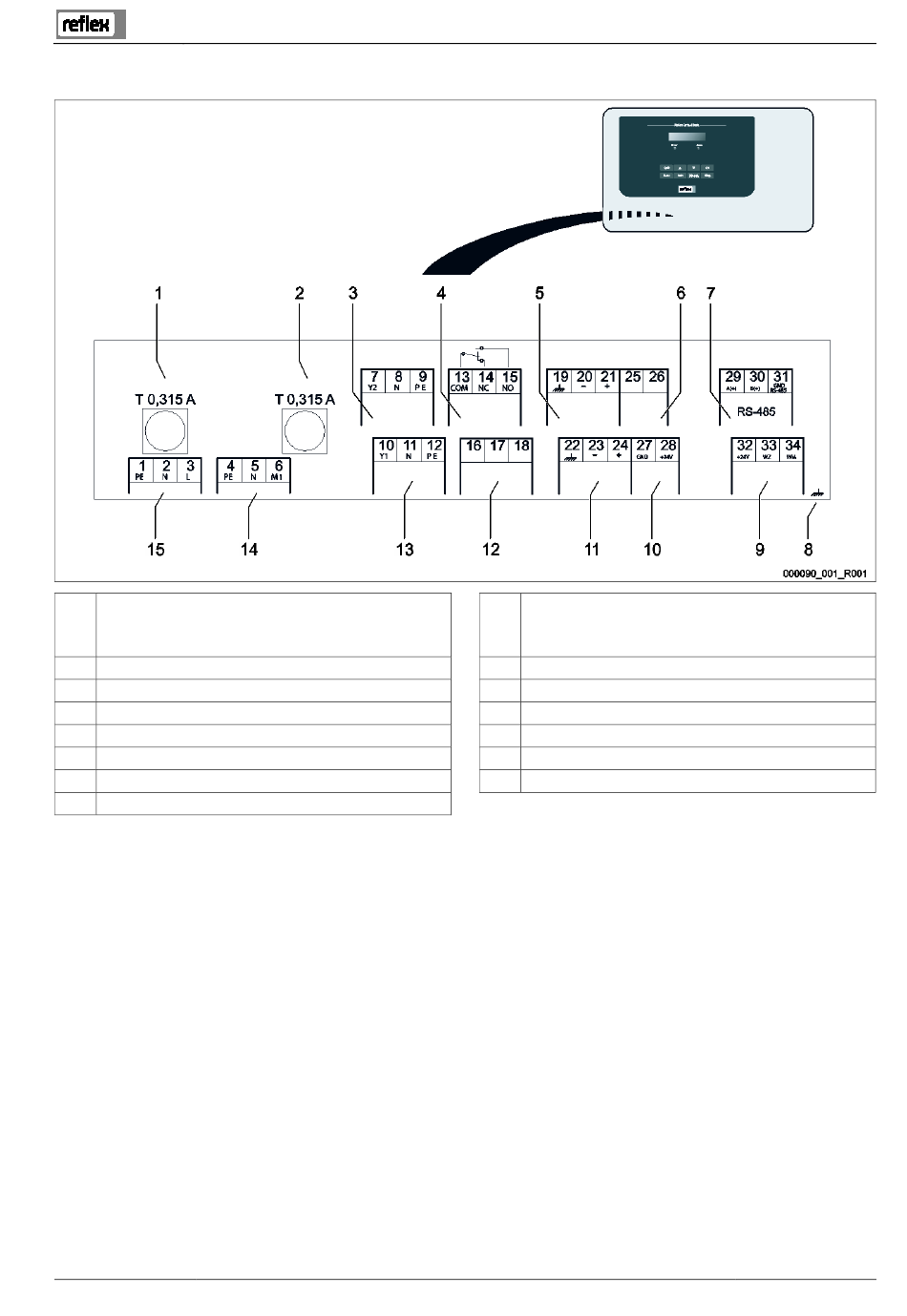

Terminal diagram

1 "L" fuse for electronics and solenoid valves
2 "N" fuse for solenoid valves
3 Solenoid valve (not for motor ball valve)
4 Group message
5 Not used
6 Not used
7 RS-485 interface
8 Shielding
9
10
11
12
13
14
15
Fillcontrol Auto — 06.07.2016 - Rev. B
Digital inputs
• Water meter
• Insufficient water
Not used
Pressure analogue input
External makeup demand ("Levelcontrol" only)
Not used
Not used
Mains supply
Installation
English — 23
