6.3.2

Hydraulic connection

6.3.2.1 Connection to the facility system
Note!
Starting up of the pump causes vibration in the device. This transfers loud noises into the system pipes.
– Connect the pipes to the device using flexible connections.

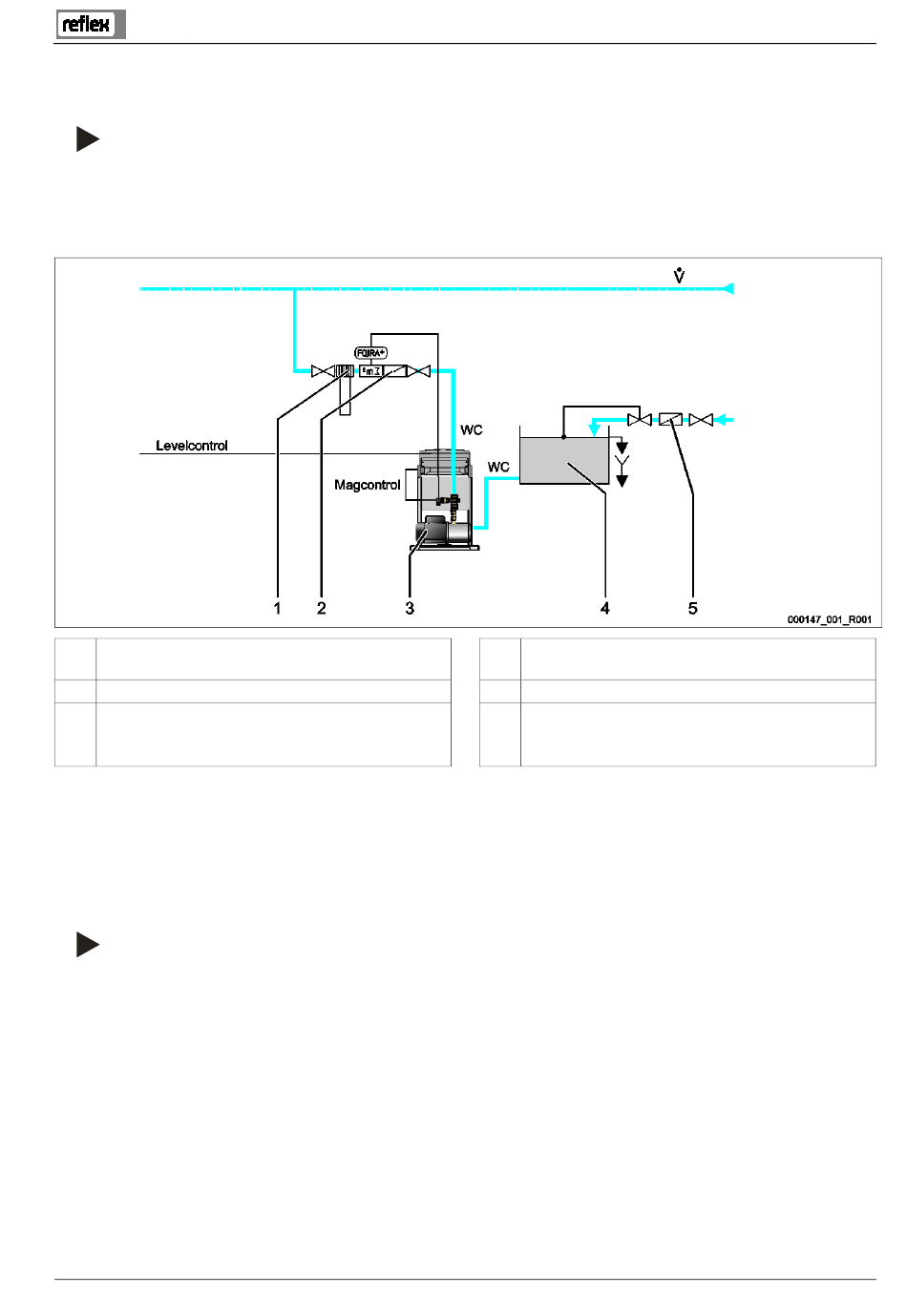

Connection to the facility system with a system separator tank for the make-up with fresh water.
1 "Fillsoft" softening system, see chapter 4.6 "Optional
equipment and accessories" on page 13 .
2 Contact water meter, optional accessory
3 "PU" pump
Comply with the following requisites for the installation and connection of an open system separator tank.
– Make-up temperatures up to 70° C
– Pipeline lengths, see chapter 6.3.1 "Floor mounting" on page 18 .
– Outlet from the system separator tank at least 100 mm above the intake connection of the "PU" pump.
– "WC" intake line to "PU" pump with constant incline to the system separator tank.
Note!
At make-up temperatures > 70 °C and the use in facility systems without system separator tanks, you must plan according
to the local conditions, see chapter 12.1 "Reflex Customer Service" on page 47 .
4
5
WC
Fillcontrol Auto — 06.07.2016 - Rev. B
"BT" system separator tank
"ST" dirt trap
Make-up lines
• Intake line to pump
• Pressure line to the facility system
Installation
English — 19
