Floor Mounting - Reflex Fillcontrol Auto Operating Instructions Manual

Installation
6.3.1

Floor mounting

Floor mounting

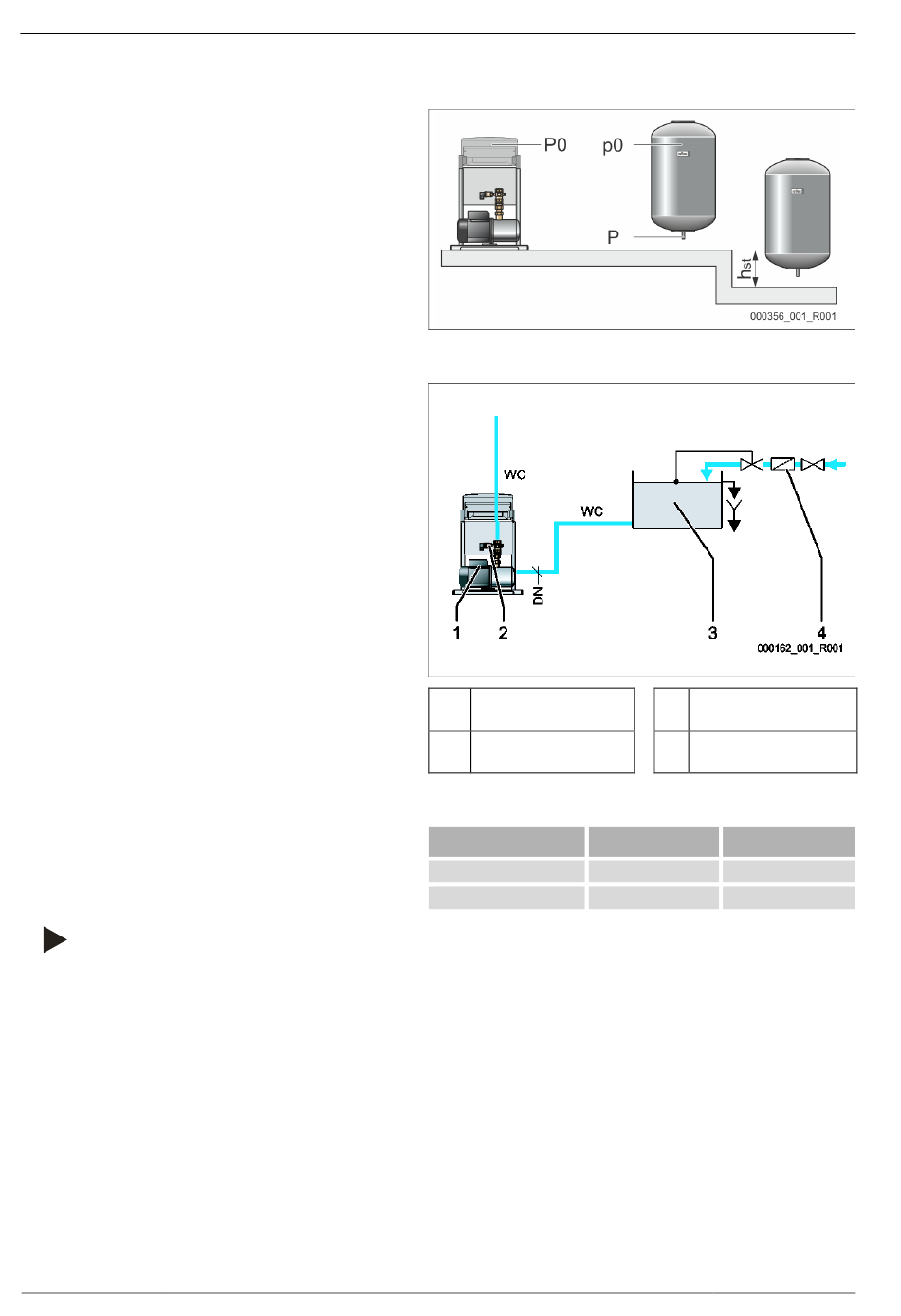

The device is installed on the floor. Select the attachment means
according to the floor properties and the weight of the device.
During installation, ensure that:
– The device is installed sufficiently close to the diaphragm
expansion tank. You ensure so that the "PIS" pressure
sensor is able to measure the filling pressure.
– The fixtures can be operated.
– The feed connections of the pipes are not adversely
affected.
Installation with user-supplied system separator tank
Note during the installation:
– The ambient temperatures must not exceed 45 °C.
– The correct pipeline length (see table).
– The "WC" makeup connection must be at least 100 mm
above the "PU" pump intake connection.
– The correct minimum diameter of the intake line and the
pressure line (see table).
– The provision of the EN 1717 standard are met.
– A nominal volume of ≤ 200 l is recommended for the
system separator tank.
– An overflow with sufficient dimensions according to the
maximum intake is installed.
– A shut-off valve is installed in the intake line to the system
separator tank.
Nominal diameters of the intake and pressure lines depending on the required makeup pressure
Note!
For installation at the same level, open the Customer menu to set the "P
pressure of the "MAG" diaphragm expansion tank, otherwise, you must correct with "hst",see chapter 7.2 "Determining
the P minimum operating pressure for the controller" on page 26 .
0
18 — English
1 "PU" pump
2 "PIS" pressure
transducer
Makeup pressure
Pressure line ≤ 10 m
Pressure line ≤ 2 m
Fillcontrol Auto — 06.07.2016 - Rev. B
"BT" system separator
3
vessel
4 "ST" dirt trap
> 3.7 bar
DN 32
DN 32
minimum operating pressure to the "p
0"
≤ 3.7 bar
DN 40
DN 40
initial
0"
