Mig/Mag Cored Wire Welding - EWM Phoenix 301 Progress puls Operating Instructions Manual

5.6.1.2

MIG/MAG cored wire welding

Item Symbol Description
1
2
3
4
5
6
7
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
Only torches with special functions (additional control lead):
• Depending on the type of torch used, insert the torch control lead plug into either the 7-pole
connection socket (digital) or the 19-pole connection socket and lock in place.
• Insert the plug on the workpiece lead into the "+" welding current connection socket and lock.
• Welding current lead, insert polarity selection into the "-" welding current connection socket and lock.
099-005023-EW501
09.08.2010
7
0
Welding torch
Welding torch hose package
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
7-pole connection socket (digital)
For connecting digital accessory components (remote control, welding torch control
lead, etc.)
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Welding current cable, polarity selection
Welding current to central connection/torch. Permits polarity selection for MIG/MAG
welding.
• Cored wire welding:
Workpiece
Design and function
6

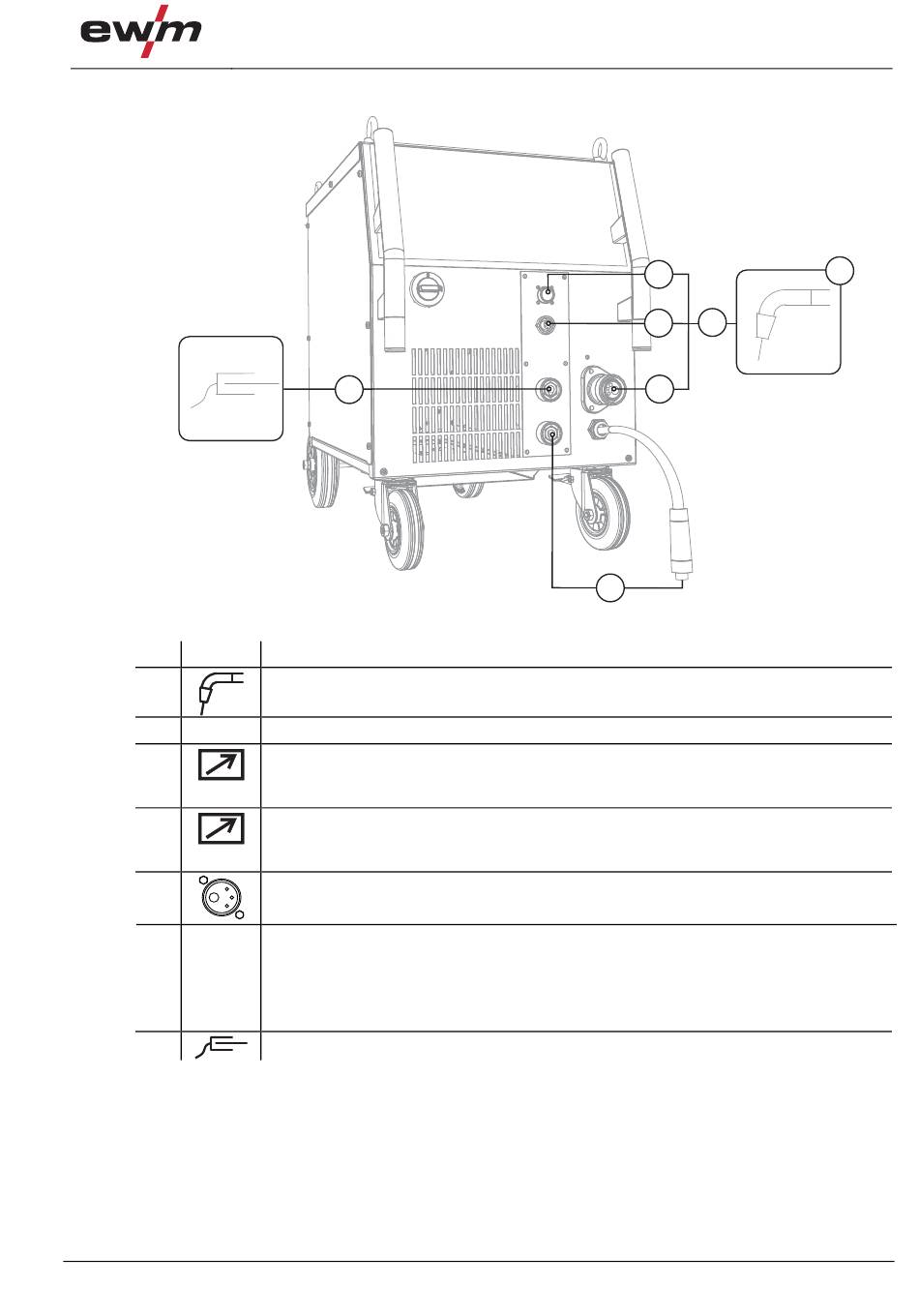

Figure 5-3
Connection for "-" welding current connection
socket
MIG/MAG welding
3
2
4
5
1
