Spool brake setting
Item
Symbol Description
1
•
Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
Do not jam the wire spool!
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!
The fixing of the pin reel must be checked if the hexagonal socket screw is released.
See chapter "Fixing of the pin reel (adjustment of the pre-tensioning)"
099-005023-EW501
09.08.2010
0
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
Design and function

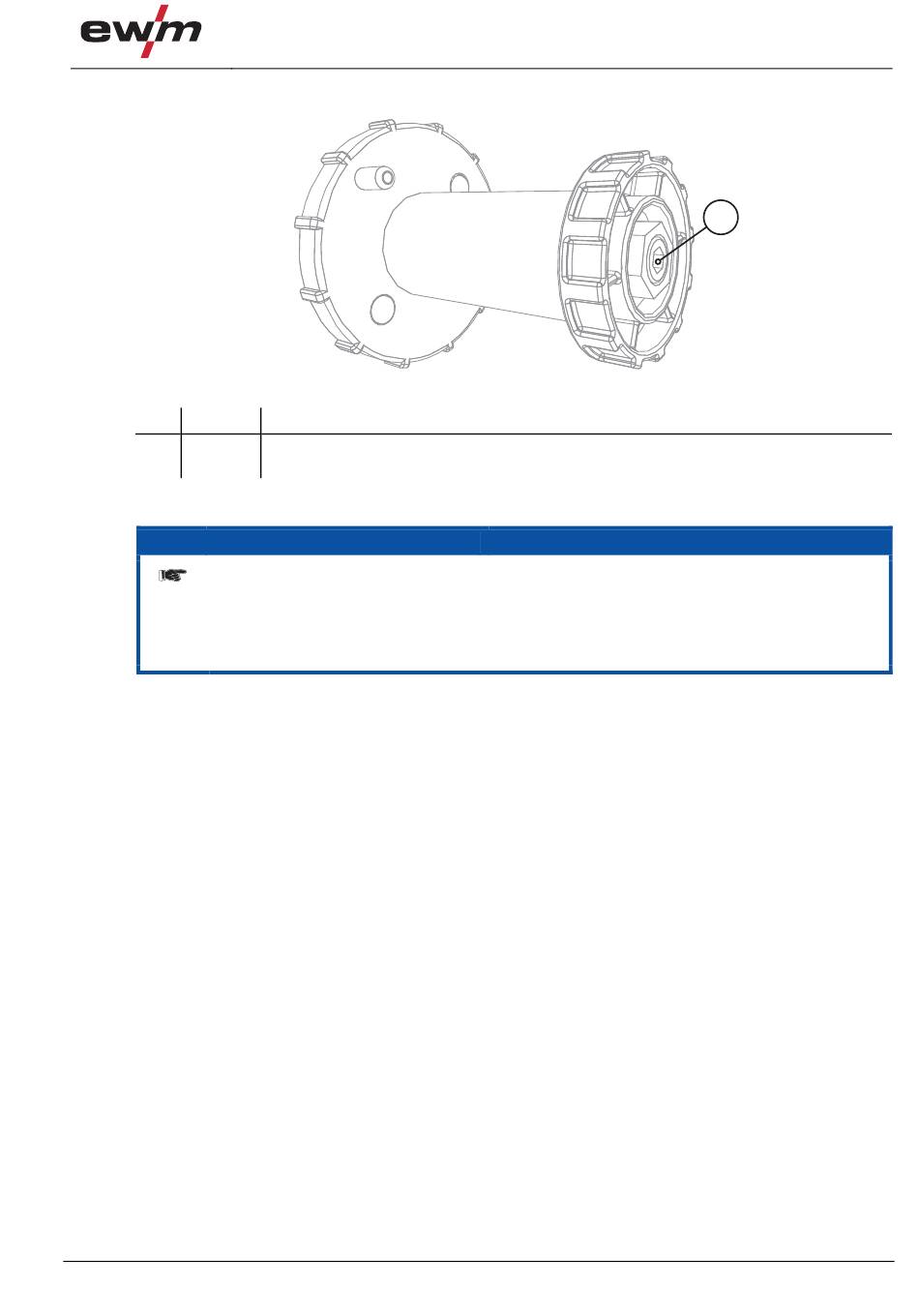

Figure 5-5
NOTE
MIG/MAG welding
1
31
