Mains connection

5.5 Mains connection
Hazard caused by improper mains connection!
An improper mains connection can cause injuries or damage property!
• Only use machine with a plug socket that has a correctly fitted protective conductor.
• If a mains plug must be fitted, this may only be carried out by an electrician in accordance
with the relevant national provisions or regulations (any phase sequence for three-phase
machines)!
• Mains plug, socket and lead must be checked regularly by an electrician!
5.5.1

Mains configuration

The machine may be connected to TN, TT or IT networks with a protective conductor (as
available).
Legend
Item Designation
L1 Outer conductor 1
L2 Outer conductor 2
L3 Outer conductor 3
PE Protective conductor
Operating voltage - mains voltage!
The operating voltage shown on the rating plate must be consistent with the mains
voltage, in order to avoid damage to the machine!
• For mains fuse protection, please refer to the "Technical data" chapter!
• Insert mains plug of the switched-off machine into the appropriate socket.
26
DANGER
NOTE

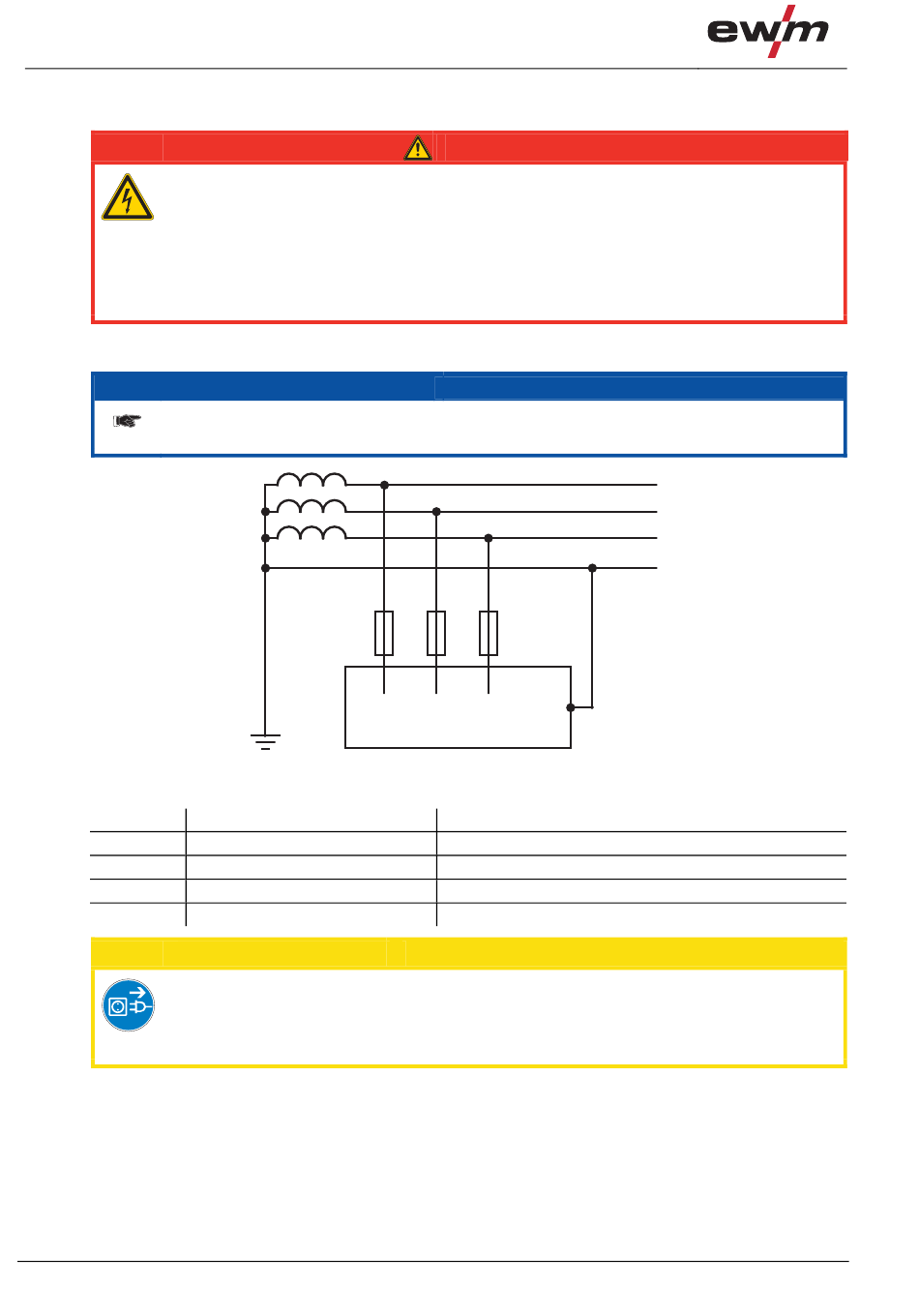

Figure 5-1
Colour code
black
brown
grey
green-yellow
CAUTION
L1
L2
L3
PE
099-005023-EW501
