Spool Brake Setting; Inserting The Wire Spool - EWM Taurus 301 Synergic Operating Instructions Manual

5.8.2

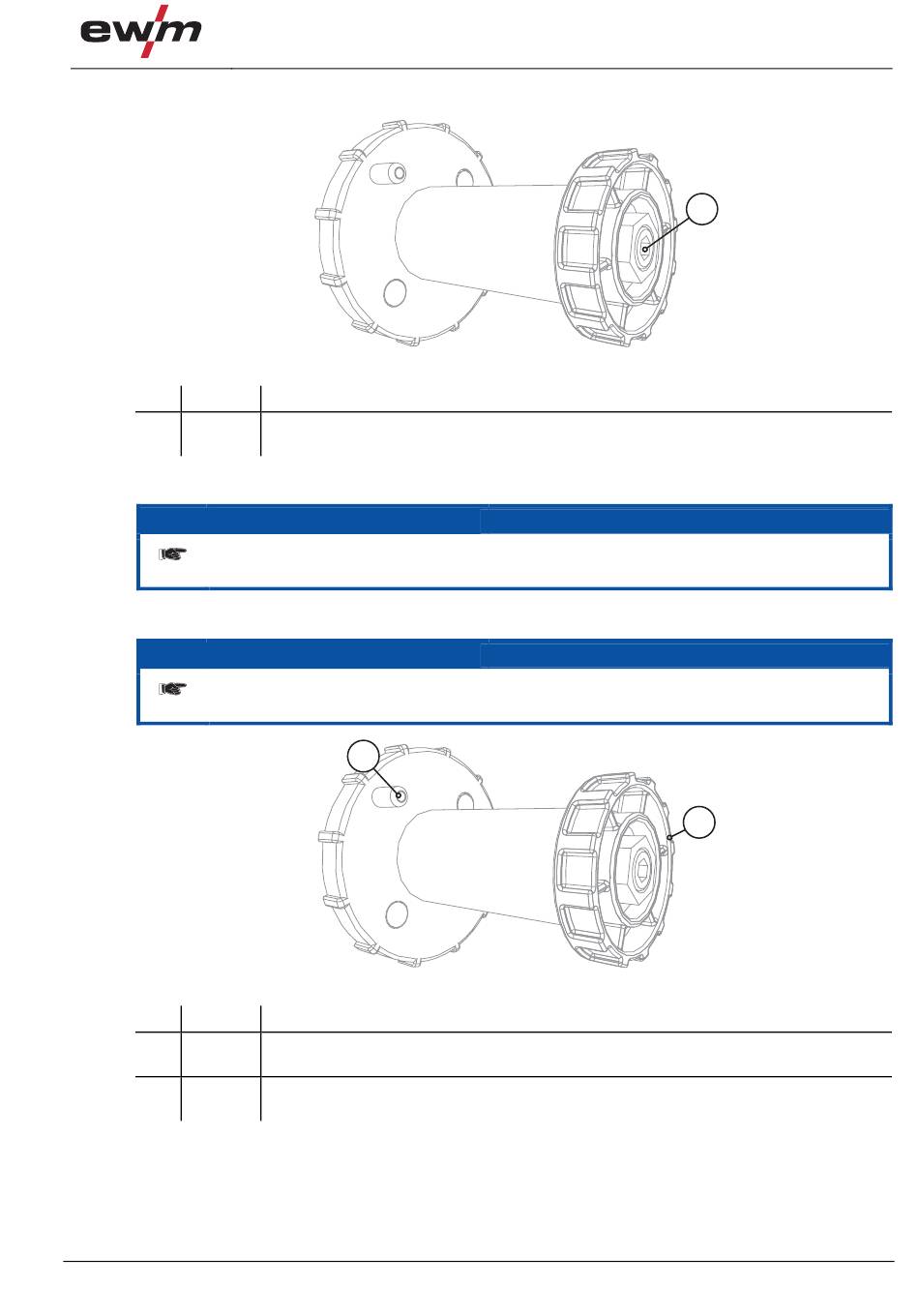

Spool brake setting

Item Symbol Description
1
• Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!
5.8.3

Inserting the wire spool

Standard D300 wire spool holder can be used. Adapters (see accessories) are required
when using standardised basket coils (DIN 8559).
Item Symbol Description
1
2
• Loosen knurled nut from spool holder.
• Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
• Fasten wire spool using knurled nut.
099-005157-EW501
09.06.2011
0
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
1
0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool
Design and function
Figure 5-5
NOTE
NOTE
Figure 5-6
MIG/MAG welding
1
2
