NETLink S7-Compact - User Guide
3.2

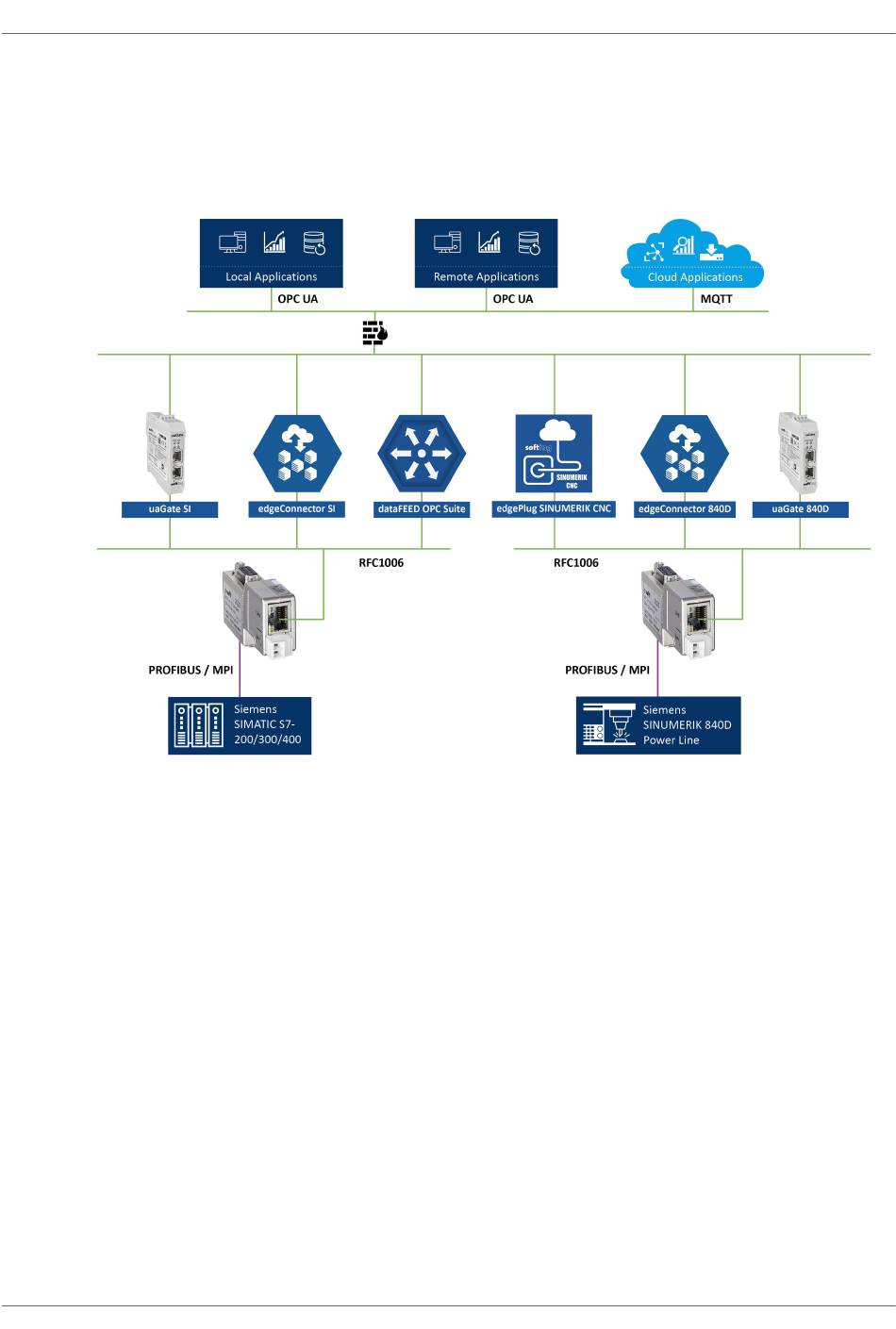

Connecting to the network
1. Connect the NETLink S7-Compact the network of your PG/PC (LAN card) to the RJ45 LAN socket of
the NETLink S7-Compact adapter using and Ethernet cable.
2. Connect NETLink S7-Compact to the MPI or PROFIBUS interface of your automation system.
3.3
Powering up the device
After having connected the NETLink S7-Compact to the MPI or PROFIBUS interface of your
automation system, the required 24V DC are normally available at the bus interface. Alternatively,
an external DC voltage source can be connected to the two-pole connector.
14
Version EN-062023-1.00
