ZenOn V6.2 (COPA-DATA)
§
PROCON-Win V3.2 (GTI Control)
§
S7-OPC Server, V3.1 and higher (Helmholz GmbH)
§
AGLink V4.0 (DELTALOGIC Automatisierungstechnik GmbH)
§
INAT-OPC-Server (INAT GmbH)
§
WinCE 5.0 Terminal TP21AS (Sütron Electronic GmbH)
§
KEPserverEx V4.0 (KEPware Inc.)
§
InTouch V9.5 (Wonderware GmbH)
7.1

CPU Adressing with Rack/Slot and TSAP

These RFC 1006 functions can be used to access specific modules on an automation system. For this
to be possible, direct communications are only allowed with a single preconfigured station. This
station will then forward all data packets that are not meant for it to the desired rack/slot and relay
the corresponding answer back to the NETLink S7-Compact unit. To use this feature, you will have to
enter the rack and slot numbers for the target address into the relevant RFC 1006 driver on the
SCADA/HMI application you are using.

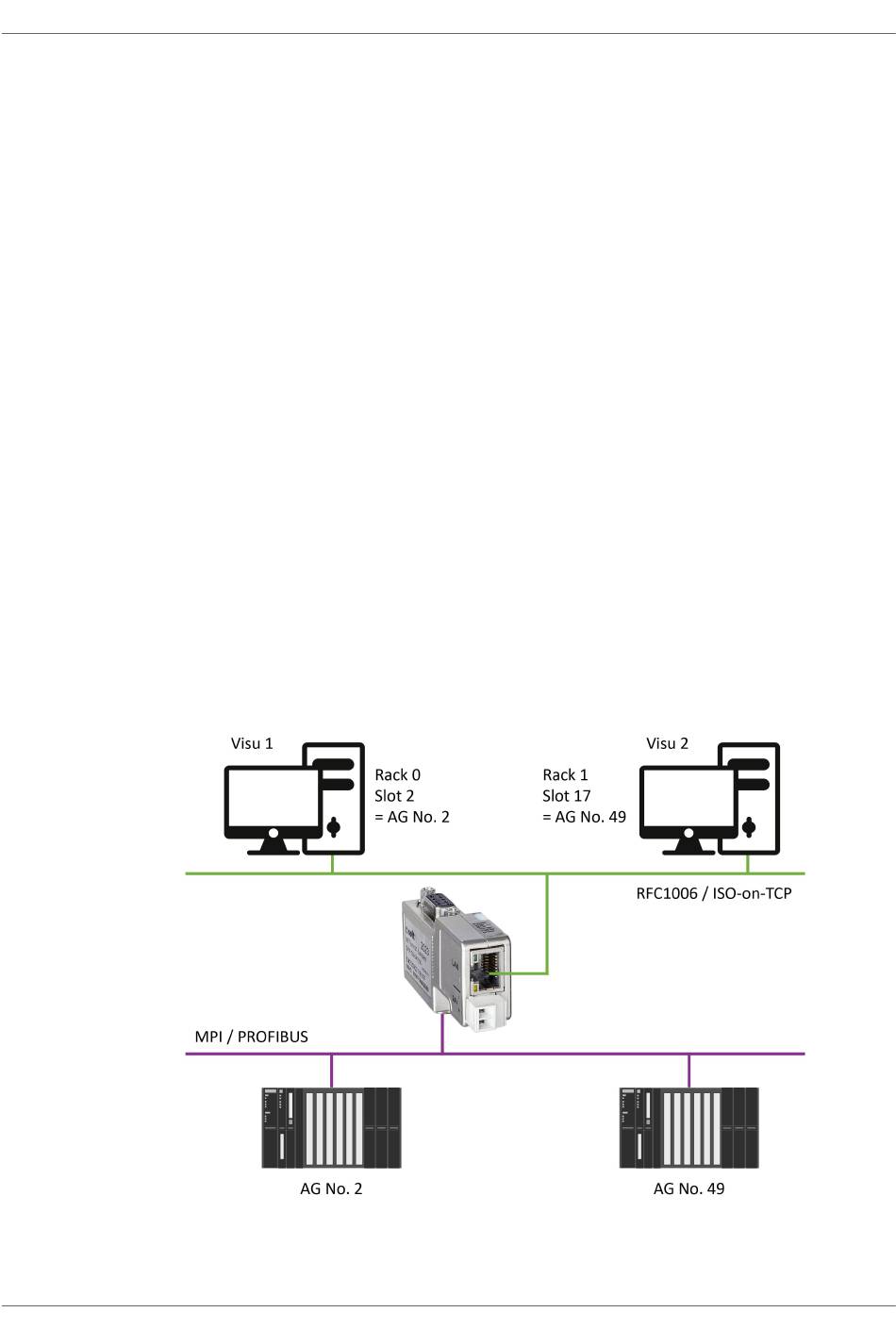

For example, if you wanted to communicate with target address 2, you would enter the following on
Visu 1: Rack 0, Slot 2.
If, on the other hand, you wanted Visu 2 to communicate with target address 49, you would enter the
following on Visu 2: Rack 1, Slot 17.
