Diagnostic function
The implemented diagnostic function can be useful for troubleshooting.
Perequisites:
The adapter must be logged into the bus system. This can be done with an engineering tool such as
STEP7 or by activating the [Go Online] button on the status page.
§
Click [Diagnostic Page] to activate the function.

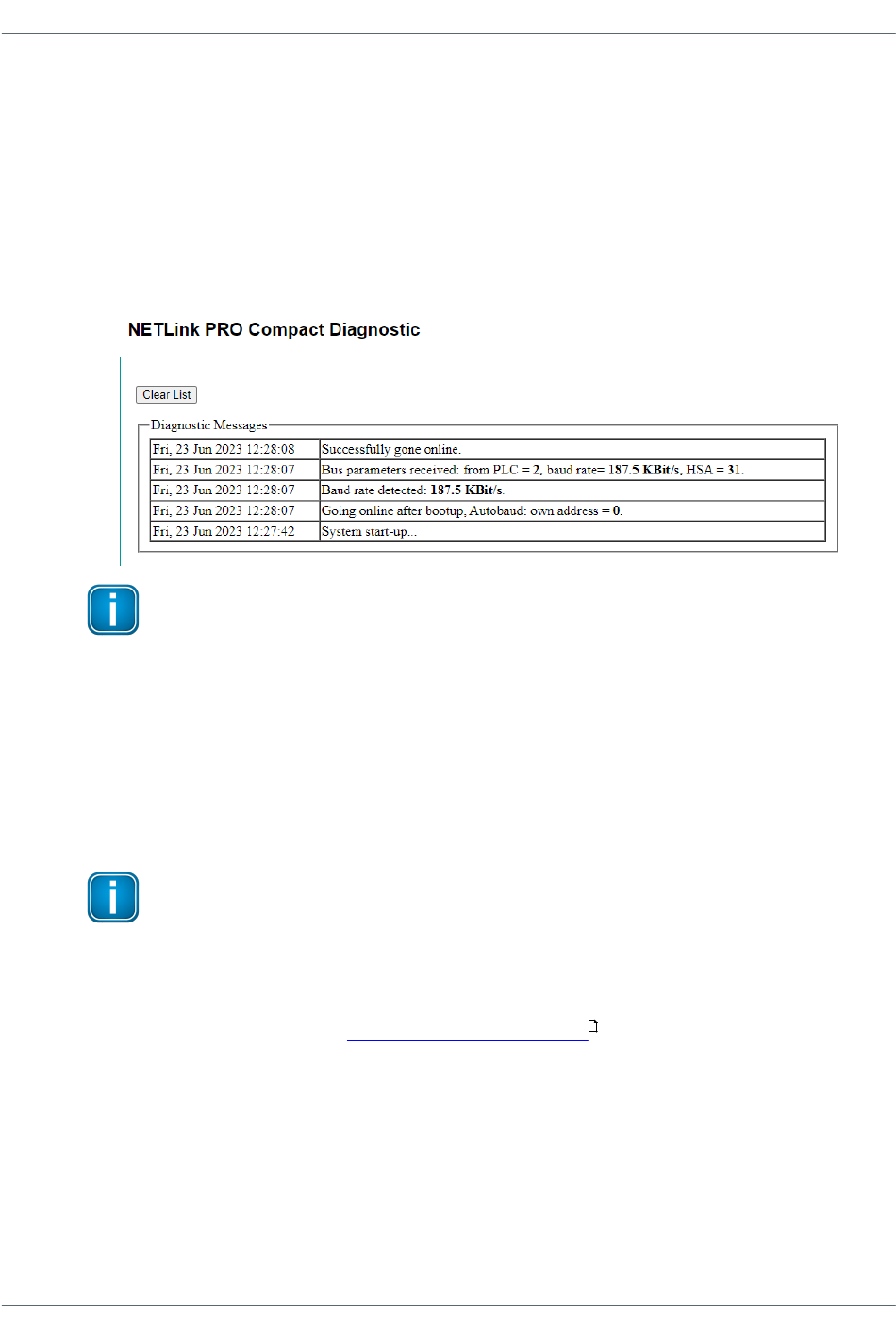

The recognized communication parameters are listed or a status report is issued.
9.4.2

Basic Configuration

Before this page is opened, the user name and the password must be entered.
The configuration page, accessible via a link on the home page, is a configuration interface for the
user.
§
It can be used to modify device-specific parameters, TCP parameters, and bus-specific parameters,
as well as to change the unit's default username and password.
The bus parameters can also be adapted to the single master functionalities. For further details on
the RFC1006 function see section
With the [Submit] button, the inputs are checked for plausibility. You may then be shown which
inputs are incorrect and what correct input would look like at this point.
Before the parameters are actually saved, you will be shown all the changes you made the way they
will be stored in the NETLink S7-Compact unit's non-volatile memory (after you click on the [Store]
button). After clicking on the [Store] button, the NETLink S7-Compact unit will be automatically
restarted so that the configuration you set up can take effect.
With the Web interface, a NETLink S7-Compact could be started both locally and remotely. This is
done by clicking the [Device Reboot] button.
