Bus members

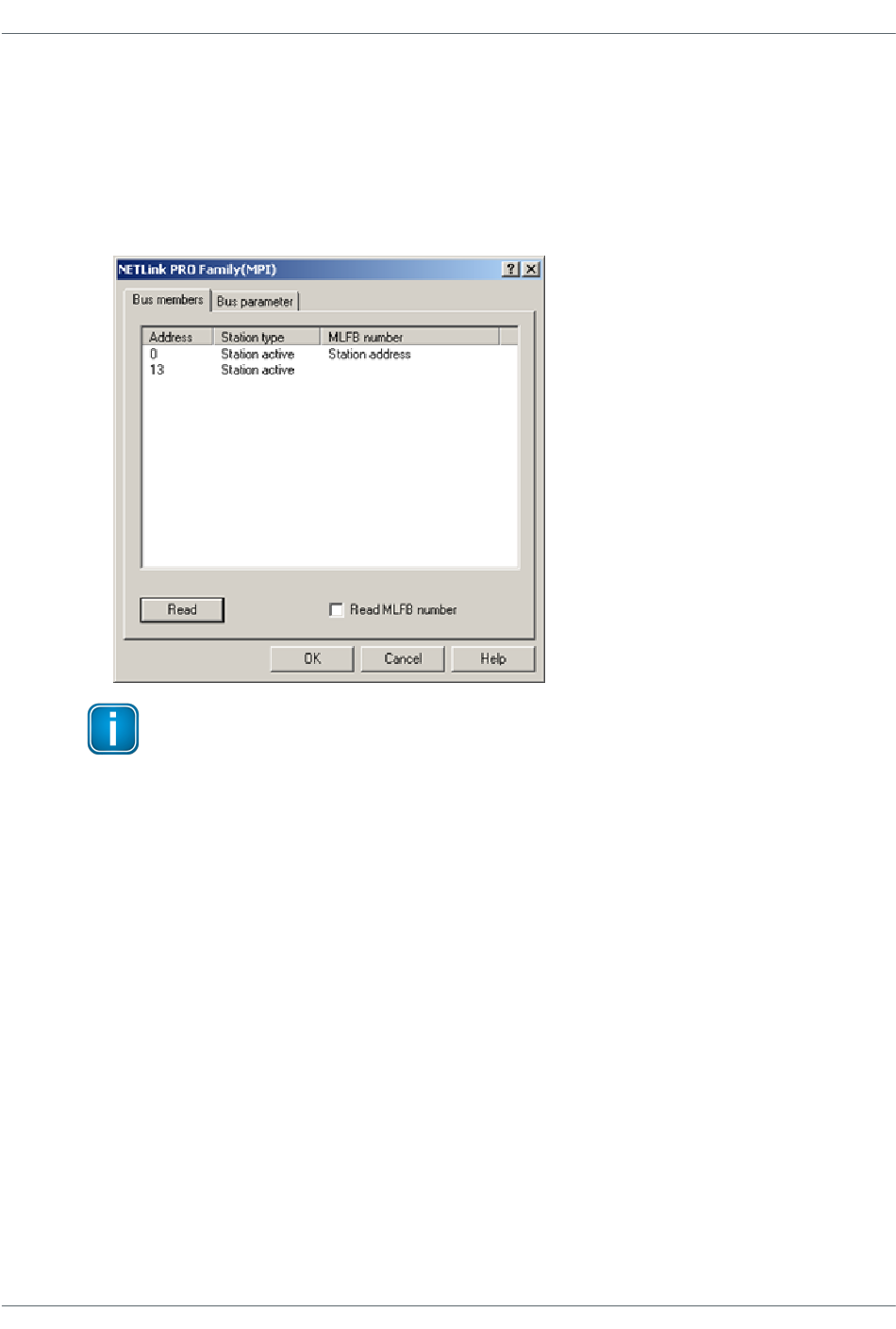

A list of all available nodes at the bus will be generated by clicking the button [Read].
With activating the option Read MLFB number the order numbers of all devices supporting this
function will be displayed too.
The possibility to detect all connected nodes depends on the parameterization of the PG/PC
Interface. It is recommended to enable auto baud functionality at MPI and PROFIBUS.
5.1.5.2

Bus parameters

If it is possible a list of all bus parameters will be displayed by clicking the button [Read].
The possibility to detect the bus parameters depends on the parameterization of the PG/PC
Interface.
It is recommended to enable auto baud functionality at MPI and PROFIBUS.
32
Note
The Station type column lists both active (master) and passive (slave) stations.
The NETLink unit being used will be shown as a Station address.
