NETLink S7-Compact - User Guide

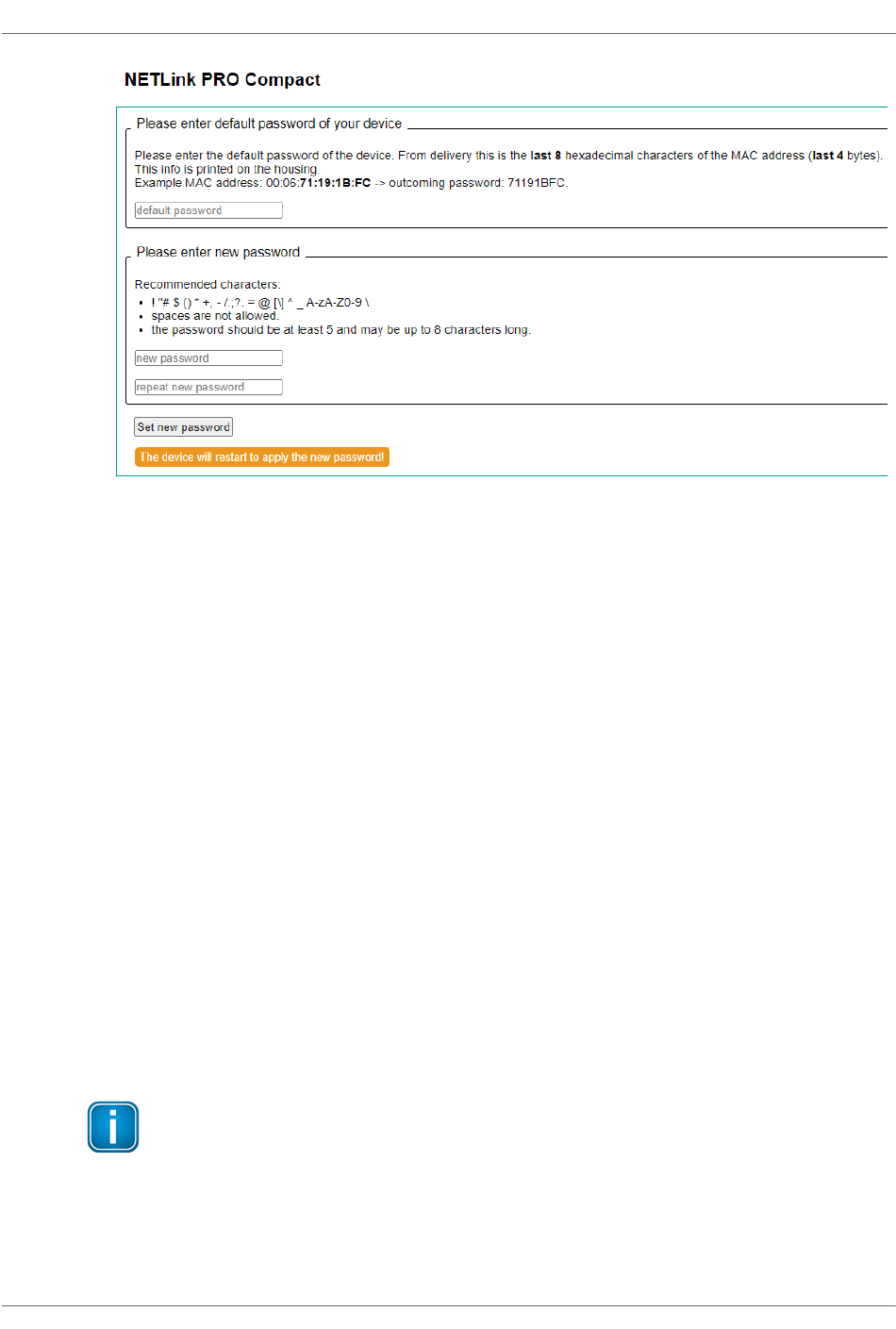

Standard login
Use following credetials for the standard login:
Username: NETLink PRO Compact
Password: Your personal password
9.4

Working with the web interface

The Home page provides you access to the following pages:
§

Status

§
Basic Configuration
§
Security
§
Observe Variables
9.4.1 Status
The status page, accessible via a link on the home page, provides the user with information without
allowing unauthorized reconfiguration of a NETLink S7-Compact.
The page provides general information:
§
firmware version, number of possible connections, etc.), and specific information (baud rate,
active stations, DHCP status, etc.)
Because the NETLink S7-Compact is also active as a single master, it is also possible to search for
passive stations only. The search is started by clicking [Search Passive Stations]. The updated status
of verified stations is then displayed.
44
Note
The values shown on this page are all volatile!
