Connecting to the network

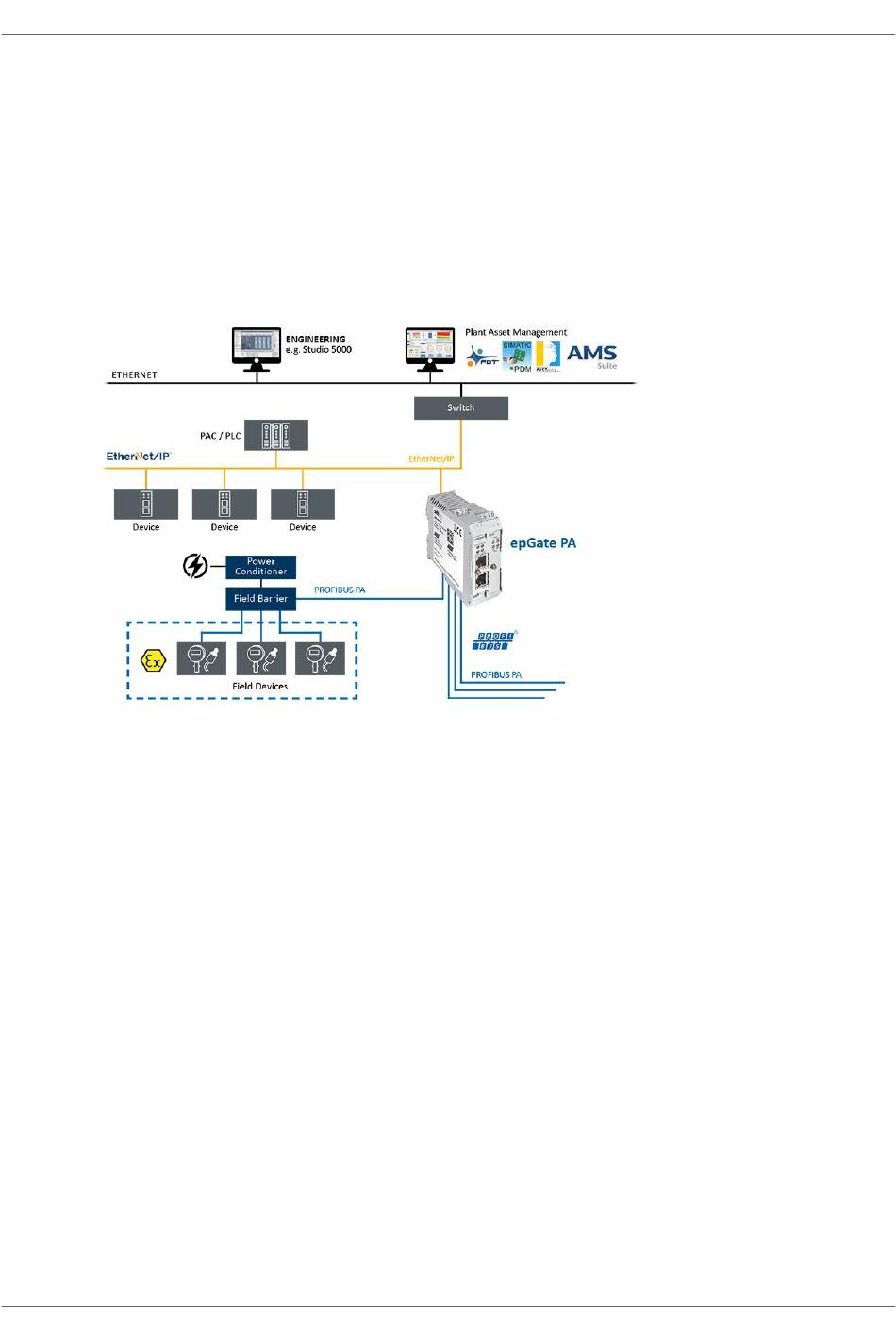

1. Connect each segment of your PROFIBUS network to a port of your gateway. Be sure that each
segment is powered by a power conditioner. If you connect to field devices in explosive atmospheres
ensure that you also connect a field barrier in between.
2. Connect the gateway from one of the two Ethernet ports with your EtherNet/IP network.
3. Connect your PC running the engineering and asset management tools using the second Ethernet port.
