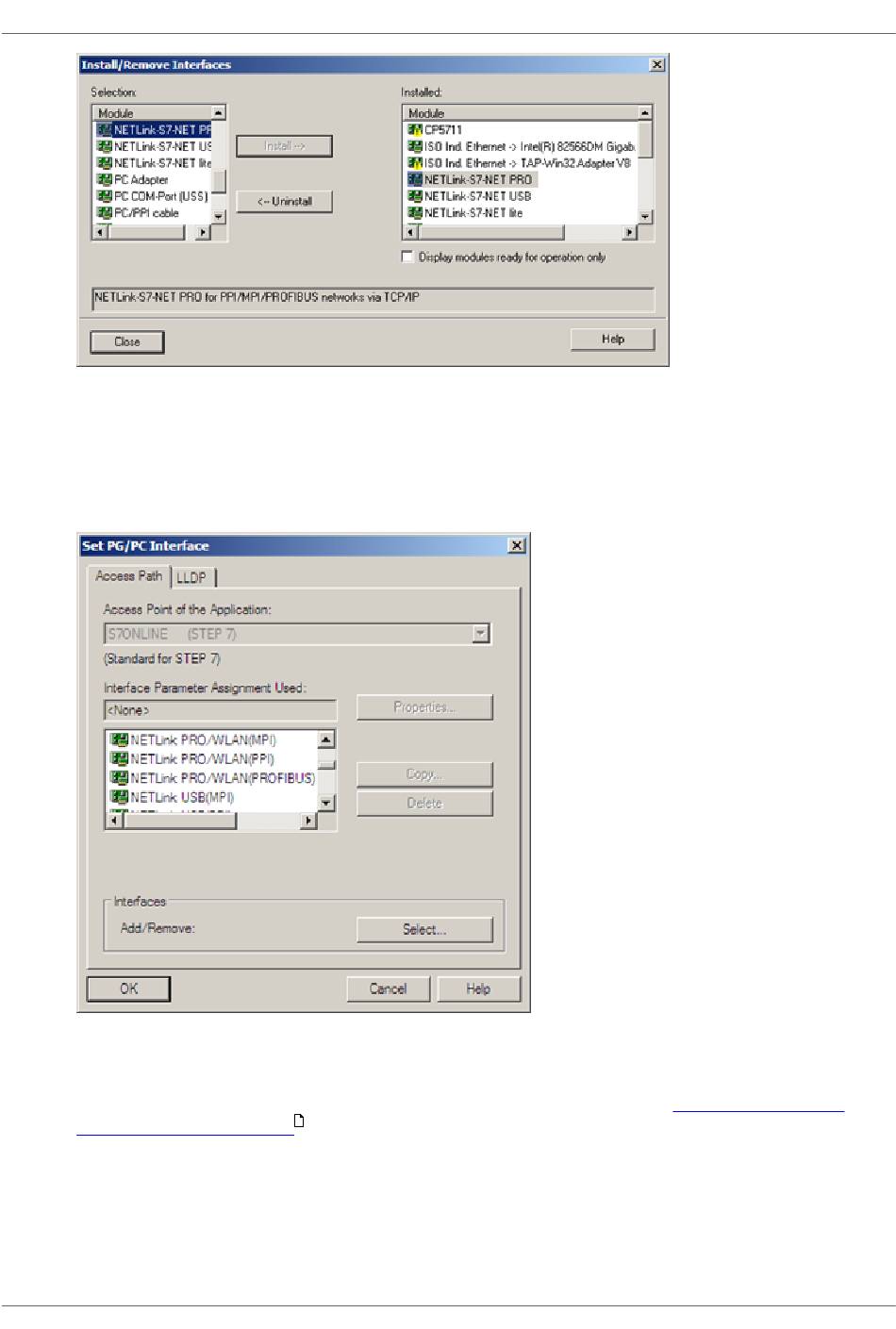

The access path in the Set PG/PC Interface dialog box is set when this window is closed.
4.1.3
Selecting the required interface parameterization
The selection list for the interface parameter sets now contains an additional three items for
NETLink®.
All relevant settings of a NETLink S7-Compact driver can be made via the [Properties] access field.
With the button [Diagnostics...] it is possible to show the nodes connected to the bus and the
parameters the bus is working with. These fields are explained in Section
NETLink S7-Compact driver
Version EN-062023-1.00
18
.
Chapter 4 - Software installation
Configuration via the
17
