3.1.7
Connecting to the network
1. Connect each segment of your PROFIBUS network to a port of your gateway. Be sure that each
segment is powered by a power conditioner. If you connect to field devices in explosive atmospheres
ensure that you also connect a field barrier in between.
2. Connect the gateway from one of the two Ethernet ports with your Modbus network.
3. Connect your PC running the engineering and asset management tools using the second Ethernet port.

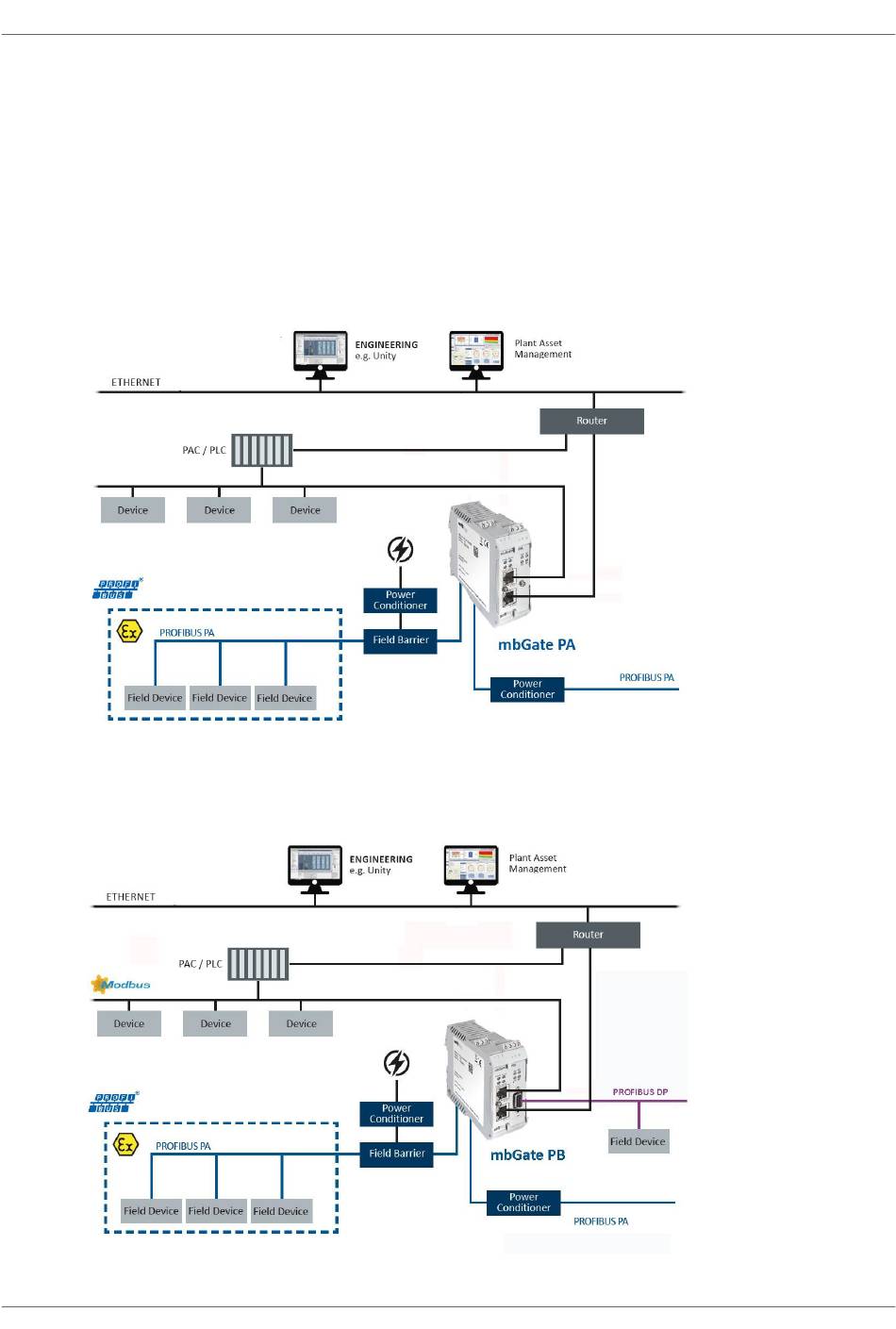

mbGate PA network topology (2-channel model)
mbGate PB network topology
Version EN-092019-1.21
Chapter 3 - Installation
17
