• Trigger FTP: Enable to allow the camera to send snapshots and
recordings to an external FTP server when the alarm is triggered. Refer
to Section

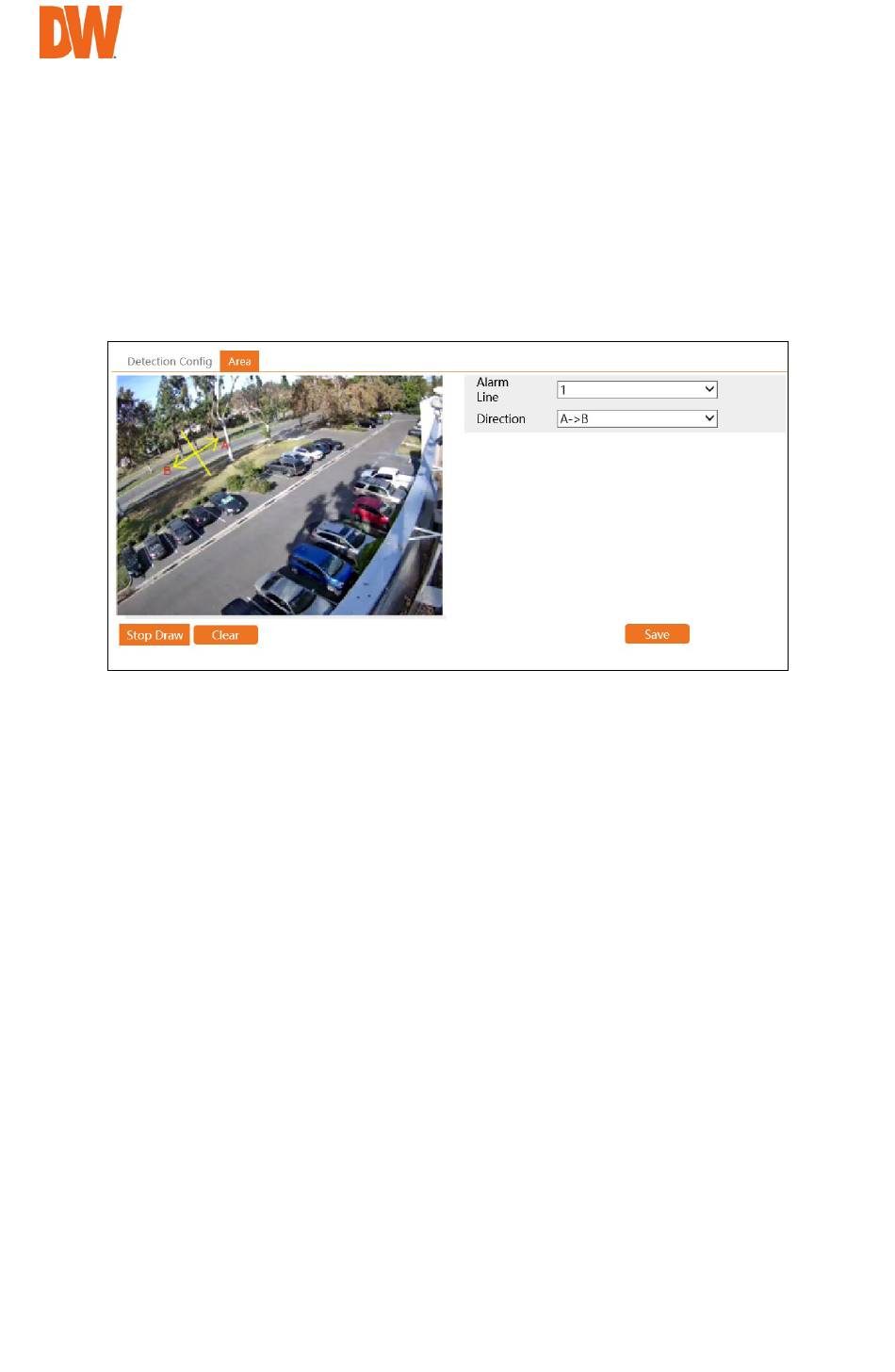

Line Crossing Area
Set the Line Crossing alarm area settings. Select the "Area" tab to draw the
detection line.
•
Alarm Line: Up to four (4) alarm lines at a time can be active.
Select the preferred preset before drawing the detection line and
click the "Save" button before drawing another alarm line.
• Direction：Select the direction that a target (person, vehicle, etc.)
must cross the detection line to trigger the alarm.
o
A<->B: Alarms will be triggered when someone or a vehicle
crosses over the alarm line from side B to side A or from A to
B.
o A->B: Alarms will be triggered when someone or a vehicle
cross over the alarm line from side A to side B.
o
A<-B: Alarms will be triggered when someone or a vehicle
cross over the alarm line from side B to side A.
• Draw Area: Click the "Draw Area" button and draw the alarm line
in the image. Click the "Stop Draw" button to stop drawing. Click
the "Clear" button to delete the lines. Click the "Save" button to
apply the settings.
※ Recommendations for camera install and surrounding area
•
Auto-focusing function may possibly interfere with line crossing
5.2.10 FTP
for more information.
