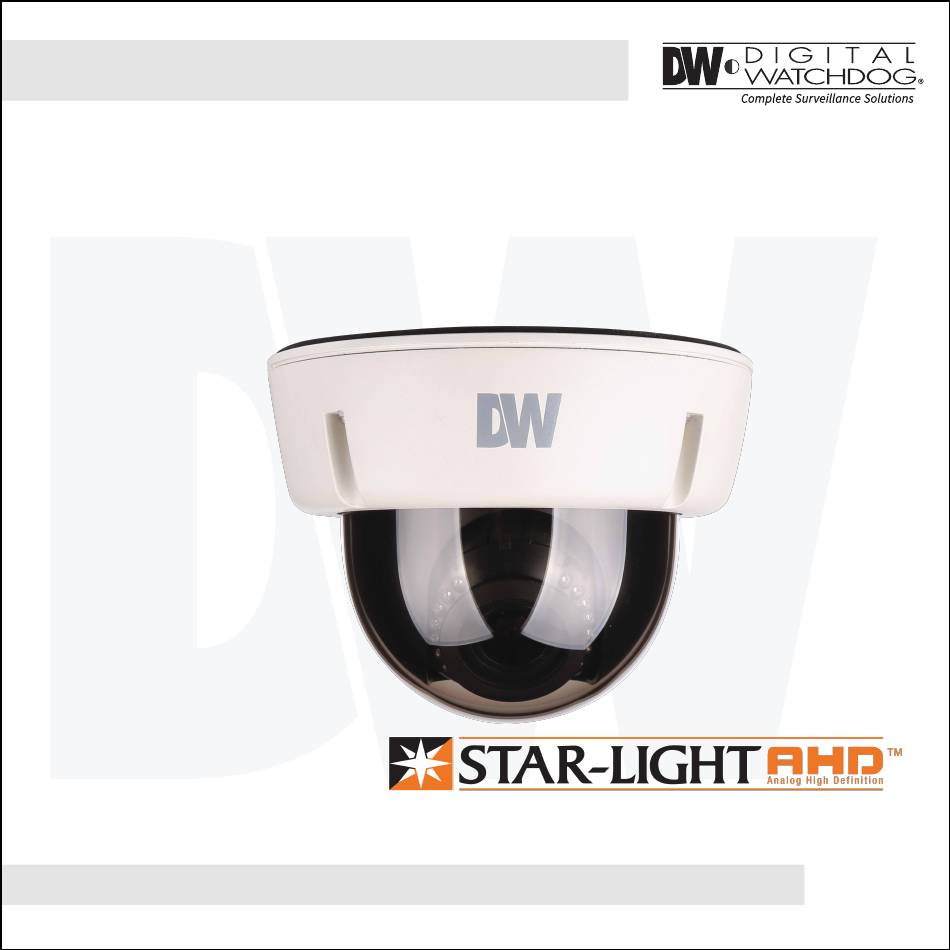

- Page 1 Analog High Definition Outdoor Dome Camera DWC-V6763WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 05/2015...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Installation
Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Surface Mount Installatrion instructions Junction Box Installation Instructions Wall Mount Installation Instructions Pendant Mount Installation Instructions Corner Mount Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Angle Adjusting the Camera Axis Module OSD Menu... - Page 4 FEATURES* Analog High Definition (AHD) HD over Coax Technology STAR-LIGHT™ Super Low Light Technology Panasonic 1/3" CMOS Sensor 1080P Resolution at 30fps Digital Wide Dynamic Range (DWDR) Varifocal P-Iris Lens 2.8~12mm CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease Smart IR™...
-
Page 5: Parts & Description
PARTS & DESCRIPTION* Bottom Case Camera Gimbal Upper Case Dome Cover Cover Screws (x4) Side Port for Cabling BNC Cable DC12V Cable UTP Cable RS485 Cable Alarm Output Cable... - Page 6 DIMENSIONS IN MILLIMETERS (IN)* 144.0 5.7 145.0 5.7...
-
Page 7: Inside The Box
4 Machine Screws and 4 Dry Wall Anchors DC Plug Power Cable Analoh High Definition Outdoor Dome Camera DWC-V6763WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. -
Page 8: Surface Mount Installation Instructions
SURFACE MOUNT INSTALLATION INSTRUCTIONS* 1. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. 2. Pull wires through and make connections. 3. Using the four (4) included screws, mount and secure the camera to the wall or ceiling. -
Page 9: Junction Box Installation Instructions
JUNCTION BOX INSTALLATION INSTRUCTIONS* Check to see all parts are in Use the dry wall anchors and Insert wires through the the box. machine screws to mount the wall and make the junction box and rubber appropriate connections. gasket to the wall. Attach the camera to the Attach the camera housing junction box using the... -
Page 10: Wall Mount Installation Instructions
WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Insert the wires from the Attach the camera to the box. camera through the wall the wall mount housing. mount housing. Use the mounting template to Attach the camera housing make pilot holes. -
Page 11: Pendant Mount Installation Instructions
PENDANT MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Attach the top shield to the Slide the wires from the the box. pendant mount. camera through the pendant mount. Attach the camera to the Attach the camera housing to Use the mounting template to pendant mount using the the fixture. -
Page 12: Corner Mount Installation Instructions
CORNER MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in the box. Attach the two compression fittings to the corner bracket. Attach the wall mount to the corner bracket Attach the assembly to a wall corner with dry with the 4 machine screws. wall anchors and machine screws. -
Page 13: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC/24VAC CCTV Monitor Second Video Output Monitor Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration. -
Page 14: Control Board
CONTROL BOARD* Remove the camera’s cover dome to access the OSD joystick controller. Use the Joystick to control the camera’s OSD options. -
Page 15: Adjusting The Camera Lens
ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. ZOOM FOCUS Zoom: Wide Tele Focus: Near To adjust the field of view, use the L-Key to turn the zoom screw (located on the bottom of the camera) counter-clockwise to zoom in, or clockwise to zoom out. -
Page 16: Adjusting The Camera Gimbal
ADJUSTING THE CAMERA GIMBAL* Rotation 360º Panning 360º Tilting 70º IR LED... -
Page 17: Module Osd Menu
MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB BAL. D&N MODE SHARPNESS MANUAL / AUTO AUTO / AUTO-EX / PRESET AUTO / COLOR / BW / EXTERN 0 ~ 10 BACKLIGHT AGC THRES GAMMA / MANULAL OFF / HME / BLC / WDR 0 ~ 20 0.45 ~ 0.75 COLOR GAIN... - Page 18 EXPOSURE LENS Manual mode supports the fixed board lens or the manual iris lens. MANUAL/ AUTO mode sets the camera’s iris automatically. AUTO - Level: Change the camera’s iris value manually. If AUTO is selected, this option is disabled. - Brightness: Adjust the camera’s brightness from 0~20. The higher the number, the brighter the image will appear.
- Page 19 EXPOSURE BACKLIGHT HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by masking extremely bright areas. To setup HME, set the level and color. The lower the setting, the darker the masking areas have to be. Select from: 0 ~ 10. Color: Set the color of the HME mask.
- Page 20 EXPOSURE DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: OFF / ON. NOTE: If WDR or DEFOG are enabled, the DRC settings are set automatically and will not be available for adjustment.
-
Page 21: Color Gain
COLOR WB MODE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K Auto White Balance Control mode compensates for color temperature changes and higher than 15000K lower than 2000K PUSH Push fixes the white balance based on the current lighting automatically. MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below). -
Page 22: Day & Night
DAY & NIGHT D&N MODE AUTO / Day/ Night switch will be based on the AGC levels. COLOR / The camera always stays in day/color mode. B&W The camera always stays in night/B&W mode. EXTERN Day/ Night switch will be based on using IR LED lights. AUTO: - AGC Threshold: Set when the camera switches between Day &... - Page 23 FUNCTION SHARPNESS Sets the image sharpness. The higher the number, the sharper the image. 0 ~ 10 GAMMA Select the desired gamma level. 0.55 is default setting. 0.45 ~ 0.75 MIRROR / FLIP Reflects the camera horizontally. MIRROR FLIP Reflects the camera vertically. Mirror / Flip OFF Mirror ON Flip ON...
-
Page 24: Det. Window
MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. MOTION To use the motion detection settings, be fore Motion is ON. DET. WINDOW - Window Use: Select which zone to setup from the 4 motion zones available. - Window Zone: Enable or disable the selected motion zone. - Page 25 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. BOX MASKS - ZONE NUM.: Select the zone number you want to setup. - ZONE DISP.: To enable it, turn the display option ON.
- Page 26 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. POLYGON MASKS - ZONE NUM.: Select the zone number you want to setup. - ZONE DISP.: To enable it, turn the display option ON.
-
Page 27: Cam. Title
SETUP COMMUNICATION Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. - CAM ID: Provide an ID number for the camera (0 ~ 255). - BAUDRATE: 9600bps is default. Select the baudrate from the following options: 2400/4800/9600/57600/115200 bps. CAM. TITLE Add a name to the camera. - Page 28 SETUP FRAME RATE Set the camera’s display frame rate and resolution. Select from: 720-30P, 720-60P, 1080-30P. The camera may have to be rebooted after frame rate change. FREQUENCY When the camera’s image appears to have flickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Koran.
- Page 29 EXIT EXIT SAVE Exit the OSD menu after saving the recent changes. INITIAL Exit the OSD menu after resetting the camera to factory default.
- Page 30 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 31: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. -
Page 32: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street... -
Page 33: Specifications
SPECIFICATIONS* VIDEO Image Sensor Panasonic 1/3" CMOS Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Frequency 60Hz/50Hz Signal Technology 2.0 Megapixel AHD Synchronization Internal Resolution 1920x1080 (1080p) Minimum Scene Illumination F1.4 (30IRE): 0.35Lux [Color] F1.4 (30IRE): 0 Lux [B&W] S/N Ratio 55dB Video Output... - Page 34 SPECIFICATIONS* OPERATIONAL (CONT.) Digital Noise Reduction Off, Low, Middle, High White Balance Auto / Auto-Ex/ Preset / Manual Day and Night Day/ Night/ Auto Auto Gain Control Max 60dB Motion Detection Privacy Zones 16 Privacy Zones Sharpness 0 ~ 10 Gamma 0.45 ~ 0.75 RS485/ UTP Built-in...
- Page 35 MEMO*...
- Page 36 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
