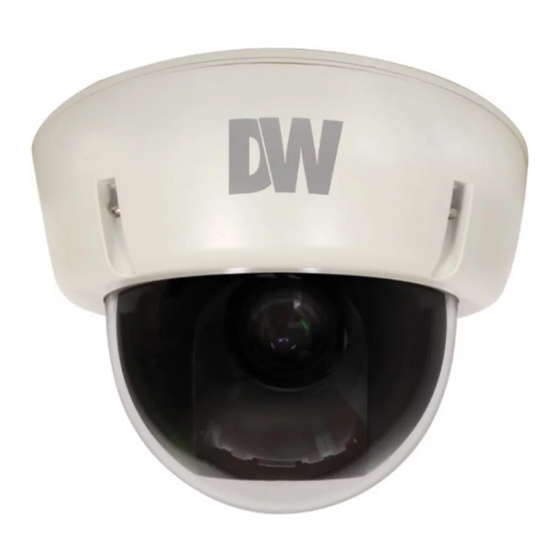

- Page 1 Vandal Dome Camera DWC-V6553D DWC-V6553DIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 03192014...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Surface Mount Installation Accessories Installation 9-12 Connecting to Monitors Control Board Adjusting the Camera Gimbal Module OSD Menu 16-27 Troubleshooting Warranty Information 29-30 Specifications 31-32...
- Page 4 FEATURES* 960H CCD Image Sensor (960 Horizontal Pixels) 720 TV Lines [B/W], 700 TV Lines [Color] 3.6mm Fixed Lens 100ft Range IR with Intelligent Camera Sync, Smart IR Electronic Day & Night 3D DNR (3D Digital Noise Reduction) Star-Light (Super Low Light Technology) HME (Highlight Masking Exposure) SLC (Side Light Compensation) Programmable Privacy Zones (8) &...
- Page 5 PARTS & DESCRIPTION* Bottom Case Camera Gimbal Upper Case Dome Cover Cover Screws (x4) Side Port for Cabling...
- Page 6 DIMENSIONS IN MILLIMETERS (IN)* 144.0 5.7 145.0 5.7...
- Page 7 Secondary Video-BNC Cable Mounting Template L-Key 4 Machine Screws and 4 Dry Wall Anchors Vandal Dome Camera DWC-V6553D DWC-V6563D DWC-V6563DIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
- Page 8 SURFACE MOUNT INSTALLATION INSTRUCTIONS* 1. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. 2. Pull wires through and make connections. 3. Using the four (4) included screws, mount and secure the camera to the wall or ceiling.
- Page 9 JUNCTION BOX INSTALLATION INSTRUCTIONS* Check to see all parts are in Use the dry wall anchors and Insert wires through the the box. machine screws to mount the wall and make the junction box and rubber appropriate connections. gasket to the wall. Attach the camera to the Attach the camera housing junction box using the...
- Page 10 WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Insert the wires from the Attach the camera to the box. camera through the wall the wall mount housing. mount housing. Use the mounting template to Attach the camera housing make pilot holes.
- Page 11 PENDANT MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Attach the top shield to the Slide the wires from the the box. pendant mount. camera through the pendant mount. Attach the camera to the Attach the camera housing to Use the mounting template to pendant mount using the the fixture.
- Page 12 CORNER MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in the box. Attach the two compression fittings to the corner bracket. Attach the wall mount to the corner bracket Attach the assembly to a wall corner with dry with the 4 machine screws. wall anchors and machine screws.
- Page 13 CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC CCTV Monitor Left Right Second Video Output Down Monitor Power Connection - 12VDC All cameras are equipped with a second video output for on-site configuration.
- Page 14 CONTROL BOARD* Secondary Connector: Video Output Connector for On-Site Configuration Joystick: Controls the OSD menu. Remove the camera’s cover dome to access the OSD joystick controller. Use the Joystick to control the camera’s OSD options.
- Page 15 ADJUSTING THE CAMERA GIMBAL* Non IR Non IR Rotation 360º Panning 360º Non IR Tilting 70º IR LED Tilting 90º...
- Page 16 MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB BAL. D&N MODE MIRROR MANUAL / DC ATW / MANUAL / PUSHLOCK AUTO / COLOR / B&W OFF / ON BACKLIGHT CONTROL SHARPNESS COLOR GAIN OFF / BLC / HME AUTO / EXTERN 0 ~ 20 0~20...
- Page 17 *For LENS-MANUAL Mode, the default SHUTTER is AUTO. *For LENS-DC Mode, the default SHUTTER is 1/60. Select DC-AUTO for DC Lens Submenu *outdoor use. FLC: Enable or disable to adjust the camera’s view and prevent the image from flickering. Not Supported by DWC-V6553D...
- Page 18 EXPOSURE BACKLIGHT BACK LIGHT COMPENSATION If BLC is selected, adjust the following options in the submenu: - LEVEL: Set the BLC level from the available options: LOW/ MIDDLE/ HIGH) - DISPLAY: Selet to show or hide the BLC mask. - POSITION: Set the BLC masks’ size and position. TOP: Set level from 0~54.
- Page 19 EXPOSURE DYNAMIC RANGE COMPRESSOR DRC enables dark spots in images to become more visible without overexposing the bright spots to create one perfect image. - DEFOG: AUTO / Manual: If AUTO is selected, the WDR and DRC levels will be set automatically based on the environment.
- Page 20 COLOR WB MODE Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Pushlock is to fix the white balance based on the lighting. PUSHLOCK Users can control the white balance manually by changing RED GAIN and BLUE MANUAL GAIN (see below).
- Page 21 DAY & NIGHT D&N MODE AUTO / In AUTO mode, the camera switches between day and night automatically depending COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode. B&W If B&W is selected, camera always stays in night/B&W mode. If AUTO is selected, please define the following settings: CONTROL: AUTO/EXT.
- Page 22 FUNCTION MIRROR Reflects the camera horizontally. MIRROR Mirror OFF Mirror ON SHARPNESS Sets the image sharpness. The higher the number, the sharper the image. 0 ~ 30 GAMMA Select the desired gamma level. 0.45 is default setting. 0.35 ~ 0.7 POSI / NEGATIVE If NEGATIVE is enabled, the camera’s image OFF / ON...
- Page 23 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. MOTION Select to enable or disable the camera’s motion detection. If ON is selected: OFF / ON SENSITIV. Sensitivity level of the motion detection is adjustable. Motion Detection will be more 0 ~ 30 sensitive at a higher number.
- Page 24 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. MASK COLOR Privacy zones can be set with eight different colors-Gray-1, Gray-2, Gray-3, Gray-4, White, Yellow, Green, Blue, Red, Cyan, and Magenta.
- Page 25 SETUP TITLE If ON is selected, you can display the camera title on the screen. If enabled, OFF / ON manually enter the camera’s display name using the joystick controller. INTERNAL SYNC. Select whether the camera syncronizes internally or using Line Lock. INT/ COMMUNICATION The Communications settings allow you to setup the camera’s ID, Baudrate, Protocol,...
- Page 26 SETUP LANGUAGE The camera supports the following languages: ENGLISH. FONT COLOR The following colors are available for the OSD menu: BLUE, GREEN, CYAN, RED, MAGENTA, YELLOW, BLACK, and GRAY. SPECIAL OLPF: Select the filter that you use from BLUE/RED and PASS, then reboot the camera to use.
- Page 27 EXIT EXIT SAVE Exit the OSD menu after saving the recent changes. RESTORE Exit the OSD menu without saving recent changes. INITIAL Exit the OSD menu after resetting the camera to factory default.
- Page 28 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
- Page 29 WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
- Page 30 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
- Page 31 SPECIFICATIONS* VIDEO Image Sensor 960H CCD Total Pixels 960 (H) x 478 (V) Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Line Lock Horizontal Resolution 720 TV Lines [B/W], 700 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.14 Lux [Color] F1.2 (30IRE): 0.03 Lux [B/W] 0.0 Lux (DWC-V6563DIR)
- Page 32 OPERATIONAL* White Balance ATW/ PUSH/ MANUAL Day and Night Auto / Day / Night Mirror OFF / V. Flip / Rotate Auto Gain Control 1 ~ 20 Gamma 0.35 ~ 0.7 Motion Detection 4 Motion Regions Privacy Zones 8 Programmable Privacy Masks Dynamic Range Compressor OFF / Low / Middle / High Sharpness...
- Page 33 MEMO*...
