Pepperl+Fuchs IDENTControl IQH3-FP-V1 Manual

Pepperl+Fuchs IDENTControl IQH3-FP-V1 Manual

Rfid read/write device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IQH3-FP-V1
RFID Read/Write Device for
IDENTControl, 13.56 MHz,
ISO 15693
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDENTControl IQH3-FP-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Pepperl+Fuchs IDENTControl IQH3-FP-V1

Summary of Contents for Pepperl+Fuchs IDENTControl IQH3-FP-V1

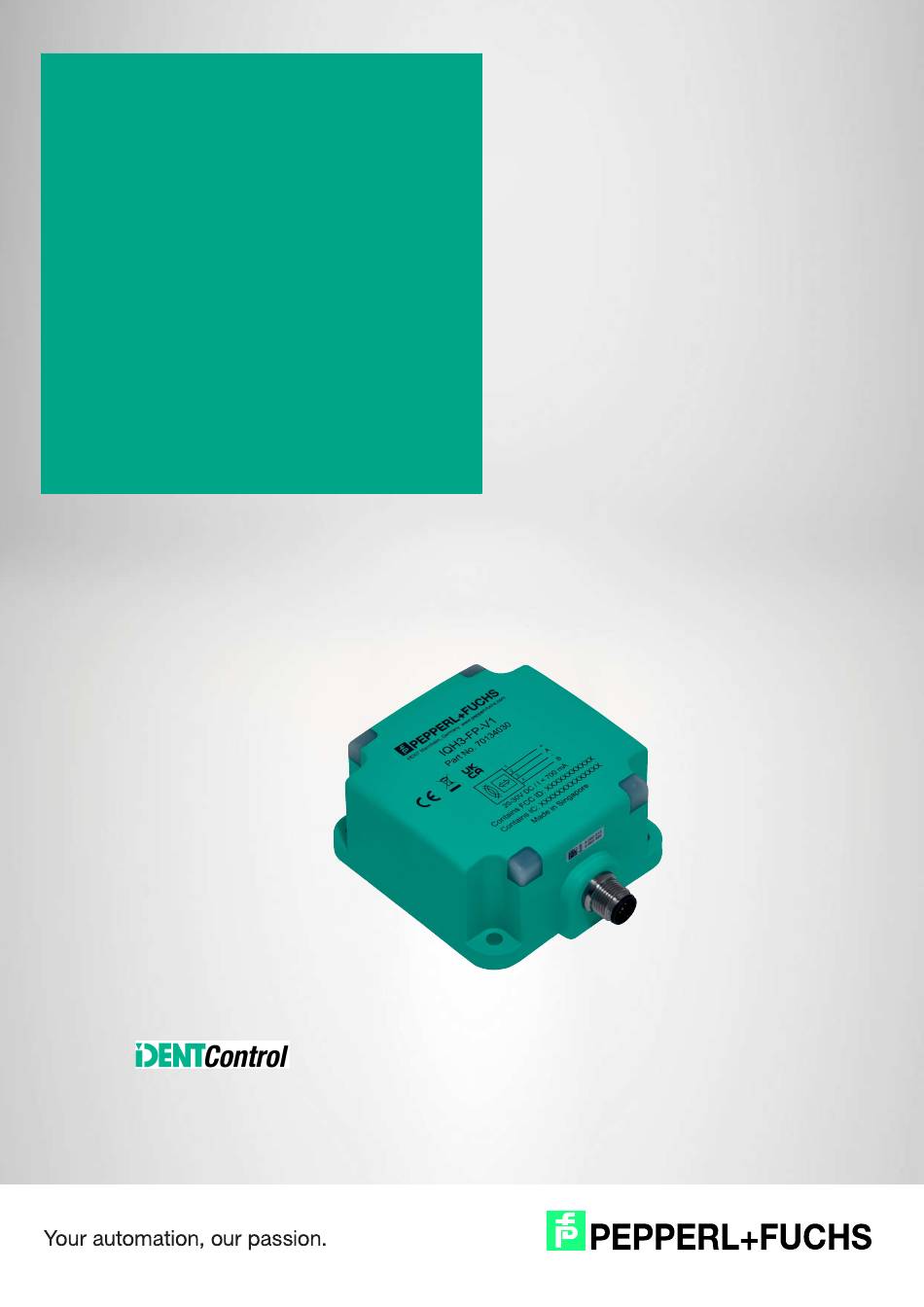

  • Page 1 IQH3-FP-V1 RFID Read/Write Device for IDENTControl, 13.56 MHz, ISO 15693 Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...

  • Page 3: Table Of Contents

    IQH3-FP-V1 Contents Introduction........................ 5 Content of this Document ................5 Target Group, Personnel ................5 Intended Use ....................5 Symbols Used ....................6 Terms and Abbreviations ................6 Certificates and approvals..................8 Declaration of Conformity (RE Directive 2014/53/EU) ....... 8 FCC Information.....................
  • Page 4 IQH3-FP-V1 Contents Operation ........................21 Read/Write Tags 13.56 MHz ISO15693 ............21 General......................22 Sensing Range .....................22 Multiple Tags in Sensing Range ..............22 Overview of Commands ................22 Read/Write Commands................23 Configuration Commands ................27 6.7.1 Read and Write Parameters ....................27 6.7.2 Parameters ........................28 Appendix........................36 Error and Status Messages ................36 ASCII Table....................36...

  • Page 5: Introduction

    IQH3-FP-V1 Introduction Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •...

  • Page 6: Symbols Used

    IQH3-FP-V1 Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage.

  • Page 7: Terms And Abbreviations

    Mobile data memory with user data and unique number Read-only code Unique and unchangeable number of a read/write tag IDENTControI RFID control interface from Pepperl+Fuchs; interface to the higher-level controller; controls communication of the connected read/write devices Pepperl+Fuchs-specific designation of read/write tags with 13.56 MHz ISO/IEC 15693 Standard for data transfer for a 13.56 MHz RFID system...

  • Page 8: Certificates And Approvals

    Note A Declaration of Conformity can be requested from the manufacturer or downloaded from www.pepperl-fuchs.com. The product manufacturer, Pepperl+Fuchs SE, 68307 Mannheim, Germany, has a certified quality assurance system that conforms to ISO 9001. ISO9001 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 9: Ic Information

    . Supply must be SELV (Safety Extra Low Voltage). The Overvoltage Category II is applied. This is ensured, when a Pepperl+Fuchs IDENTControl control interface is used. Protection class IP67 is not included in the UL approval. The protection class is tested by Pepperl+Fuchs SE.

  • Page 10: Product Description

    The IQH3-FP-V1 read/write device is designed for writing and reading passive tags in the 13.56 MHz frequency range in accordance with the ISO15693 standard. The read/write device must be operated with an IDENTControl control interface from Pepperl+Fuchs. Figure 3.1 IQH3-FP-V1...

  • Page 11: Indicators

    22 AWG or 0.34 mm². do not connect Shield Figure 3.3 The IQH3-FP-V1 read/write device is connected to the IDENTControl control interface via an M12 x 1 connector. Accessories 3.5.1 IDENTControl The read/write device is connected to Pepperl+Fuchs IDENTControl control interfaces. Figure 3.4...

  • Page 12: Read/Write Tags

    Read/Write Tags The read/write device can access any read/write tag that is compliant with the ISO15693 stan- dard. For an overview of possible read/write tags see chapter 6.1. The following read/write tags from Pepperl+Fuchs can be used, for example: Type Designation...

  • Page 13: Connection Cable For Read/Write Devices And Trigger Sensors

    IQH3-FP-V1 Product Description 3.5.3 Connection Cable for Read/Write Devices and Trigger Sensors Compatible connection cables with shielding are available to connect the read/write devices and trigger sensors. Figure 3.6 Accessories Description 2 m long (straight female, angled male) V1-G-2M-PUR-ABG-V1-W 5 m long (straight female, angled male) V1-G-5M-PUR-ABG-V1-W 10 m long (straight female, angled male) V1-G-10M-PUR-ABG-V1-W...

  • Page 14: Installation

    • Any accessories ordered Retain the original packaging in case you have to store or ship the device again at a later date. Should you have any questions, please contact Pepperl+Fuchs. Mounting Note The read/write device is intended for wall mounting or mounting on brackets in indoor spaces.

  • Page 15: Minimum Distances

    IQH3-FP-V1 Installation Minimum Distances When positioning the read/write device, observe the minimum distances. The lateral distance between the device and metals or liquids should be at least 15 cm. The distance between the device and the ground should be at least 15 cm. Metal beam During simultaneous operation of several read/write devices, only one device may ever com- municate with a tag at any given time.

  • Page 16: Connection

    IQH3-FP-V1 Installation Connection Connect the read/write device to the IDENTControl control interface using a shielded connec- tion cable (see chapter 3.5.3). Ensure that the shield fully encapsulates the connection cable to avoid EMC interference. See chapter 4.6. Warning! Incorrect electrical connection Damage to the device or plant caused by incorrect electrical connection.

  • Page 17: Commissioning

    IQH3-FP-V1 Commissioning Commissioning Definitions 5.1.1 Display Angle brackets contain the abbreviated meaning of a command structure, e.g., <Data> The index or .xx denotes a hexadecimal number. denotes a value in the hexadecimal system, specified in ASCII characters. ASCII Example: 10 corresponds to A corresponds to 41 .
  • Page 18 IQH3-FP-V1 Commissioning Reading tags enhanced buffered read read-only code Send the enhanced buffered read read-only code command to the read/write device. The blue LED on the read/write device lights up. Serial Ethernet PROFIBUS/PROFINET Command: .00.04.1D.02 .1D.02 Confirmation: .00.06.1D.02.FF.0E .1D.02.FF.0E Response: .35.31 .00.06.1D.02.05.0F .1D.02.05.0F...

  • Page 19: Operation

    IQH3-FP-V1 Operation Operation Read/Write Tags 13.56 MHz ISO15693 The read/write tags of an RFID system with 13.56 MHz offer significantly quicker access to the data than a comparable RFID system based on an operating frequency of 125 kHz. The 13.56 MHz system is standardized through ISO15693.

  • Page 20: General

    IQH3-FP-V1 Operation All ISO15693-compliant read/write tags have a unique 8 byte read-only code. The read-only code is determined by the chip manufacturer. The user can only read it and it cannot be changed. In addition, the read/write tags have a memory for user data. This can be written with application-specific data and read.

  • Page 21: Read/Write Commands

    IQH3-FP-V1 Operation Abbrevia- tion Command description See "Enhanced Buffered Read Words ER" on page 23 See "Single Write Words SW" on page 24 See "Enhanced Buffered Write Words EW" on page 24 See "Single Write Words with Lock SL" on page 24 See "Enhanced Write Words with Lock EL"...
  • Page 22 IQH3-FP-V1 Operation Command: ER <ChanNo> <WordAddr> <WordNum> <CHCK> <ETX> Response: <Status> <ChanNo> <Data> <CHCK> <ETX> Single Write Words SW The read/write device makes one attempt to write <WordNum> 32-bit words from the address <WordAddr> onward. Command: SW <ChanNo> <WordAddr> <WordNum> <Data> <CHCK> <ETX> Response: <Status>...
  • Page 23 IQH3-FP-V1 Operation <FunctionNo> = 30 = ‘0’ <Data 1> Infoflags <Data 2> UID (LSB) etc. <Data 9> UID (MSB) [<Data 10> DSFID] 1<Default ¬¹ Font> [<Data 11> AFI] 1<Default ¬¹ Font> [<Data 12> VICC memory size, number of blocks -1] 1<Default ¬¹...
  • Page 24 IQH3-FP-V1 Operation 2<Default ¬¹ Font> [<Data 12> VICC memory size, number of blocks -1] 2<Default ¬¹ Font> [<Data 13> VICC memory size, block size in bytes - 1] 2<Default ¬¹ Font> [<Data 14> IC reference] Single Set Configuration SC The read/write device makes precisely one attempt to write the AFI or DSFID. If the AFI or DSFID is already read-only, a rewrite or write-protect operation has a response with status 5.

  • Page 25: Configuration Commands

    IQH3-FP-V1 Operation Example S#100050002Z fills from address 0005 to 0007 with fill sign Z ASCII Note If <NumOfWords> is set to 0000, the read/write tag is filled to the end of the read/write tag from <WordAddr> onward. Configuration Commands The response to a configuration command is a status message from the read/write device. During the read operation, a status message and the corresponding data are received as the response.

  • Page 26: Parameters

    IQH3-FP-V1 Operation <SystemCode> = Q for IQH3-* ASCII <ParamTyp> = 2 bytes ASCII <DataLength> = Length of <Data> in command, 2 bytes binary <Data> = Optional additional information Example RP1QE5.00.00 outputs the number of unsuccessful read attempts until status 5. Write Parameters The WP command writes configuration parameters to the read/write device.
  • Page 27 IQH3-FP-V1 Operation Data Rate DR This parameter sets the transfer rate between the read/write device and read/write tag. ParamTyp: Default: DR = 0 Value range: 0 = normal = 26 kBit/s 1 = fast read mode = 53 kBit/s 1. ISO/IEC 15693-2 X2 The "fast read mode"...
  • Page 28 IQH3-FP-V1 Operation The additional information is output in the following format: B<ChanNo> <Info-Typ> <RSSI> To distinguish the additional information from standard information, the output starts with status B as the first ASCII character, followed by the IDENTControl channel, the <InfoTyp>, which states that it is an information frame of type .01, and the RSSI value, which is between 0 and 100.
  • Page 29 IQH3-FP-V1 Operation Meaning of the bytes in response .30.31.00.00.00.93.00.00.00.03 Status 0 , command has been executed successfully ASCII , IDENTControl channel 1 ASCII .00.00.00.93 hours, read/write device operating time .00.00.00.03 hours, duration of the read/write command Power Transmit PT This parameter sets the transmit power or reads out the transmit power set. The transmit power can influence the range depending on the ambient temperature.
  • Page 30 IQH3-FP-V1 Operation Example WP1QQV.00.01.4D specifies the multi-frame protocol. RP1QQV.00.00 reads out the specified protocol. Response to a single read command in multi-frame protocol mode: 0<ChanNo><Luid><UID><Ldata><data><CHCK><ETX> 0<ChanNo><Luid><UID><Ldata><data><CHCK><ETX> F<ChanNo>0002<CHCK><ETX> The read command was executed, two tags responded. For each tag, the status, the IDENTControl channel, the length of the UID, the UID, the length of the data, and the read data are output.
  • Page 31 IQH3-FP-V1 Operation Tries Allowed TA The tries allowed (TA) parameter sets the number of access attempts during execution of a read/write operation on a read/write tag. ParamTyp: Default: TA = 2 Value range: 1 – 10 Example WP1QTA.00.01.01 permits one attempt. WP1QTA.00.01.03 permits three attempts.
  • Page 32 IQH3-FP-V1 Operation Meaning of the bytes in response .30.31.00.02 Status 0 , command has been executed successfully ASCII , IDENTControl channel 1 ASCII No message Coil detuning due to metal Temperature TE The TE parameter allows you to read internal read/write device temperatures. ParamTyp: Response to an RP command of the TE parameter: <Status>...
  • Page 33 IQH3-FP-V1 Operation Excess Temperature Handling TO The TO parameter defines the behavior of the read/write device in the event of excess tempera- ture. The parameter can be used to protect the device in the event of excess temperature. ParamTyp: Default: TO = 0 Value range: 0 = switch off...
  • Page 34 IQH3-FP-V1 Operation Example WP1QAF.00.01.39 sets a filter to the AFI with a value of 57 RP1QAF.00.00 reads out the currently set AFI filter. Meaning of the bytes in response .30.31.39 .30 = Status 0 , command has been executed without error ASCII .31 = 1 , IDENTControl channel 1...

  • Page 35: Appendix

    IQH3-FP-V1 Appendix Appendix Error and Status Messages Status/ Error Description The command has been executed without error. Excess temperature Switch-on message, reset has been executed. Reserved The command is incorrect or incomplete. The parameter is not in the valid area. No read/write tag in the sensing range.

  • Page 36: Ascii Table

    IQH3-FP-V1 Appendix ASCII Table ASCII hex ASCII ASCII hex ASCII Space " & < >...
  • Page 37 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-8161...
