Pepperl+Fuchs IDM-Z2-164-D-1D-J2-SU-P-N0 Manual

Pepperl+Fuchs IDM-Z2-164-D-1D-J2-SU-P-N0 Manual

Wired handheld scanner for use in explosion-hazardous areas zone 2/22
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IDM-Z2-164-D-1D-J2-SU-P-N0
IDM-Z2-264-D-2D-J2-S1-N-N0
Wired handheld scanner for
use in explosion-hazardous
areas Zone 2/22
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDM-Z2-164-D-1D-J2-SU-P-N0 and is the answer not in the manual?

Questions and answers

Related Manuals for Pepperl+Fuchs IDM-Z2-164-D-1D-J2-SU-P-N0

Summary of Contents for Pepperl+Fuchs IDM-Z2-164-D-1D-J2-SU-P-N0

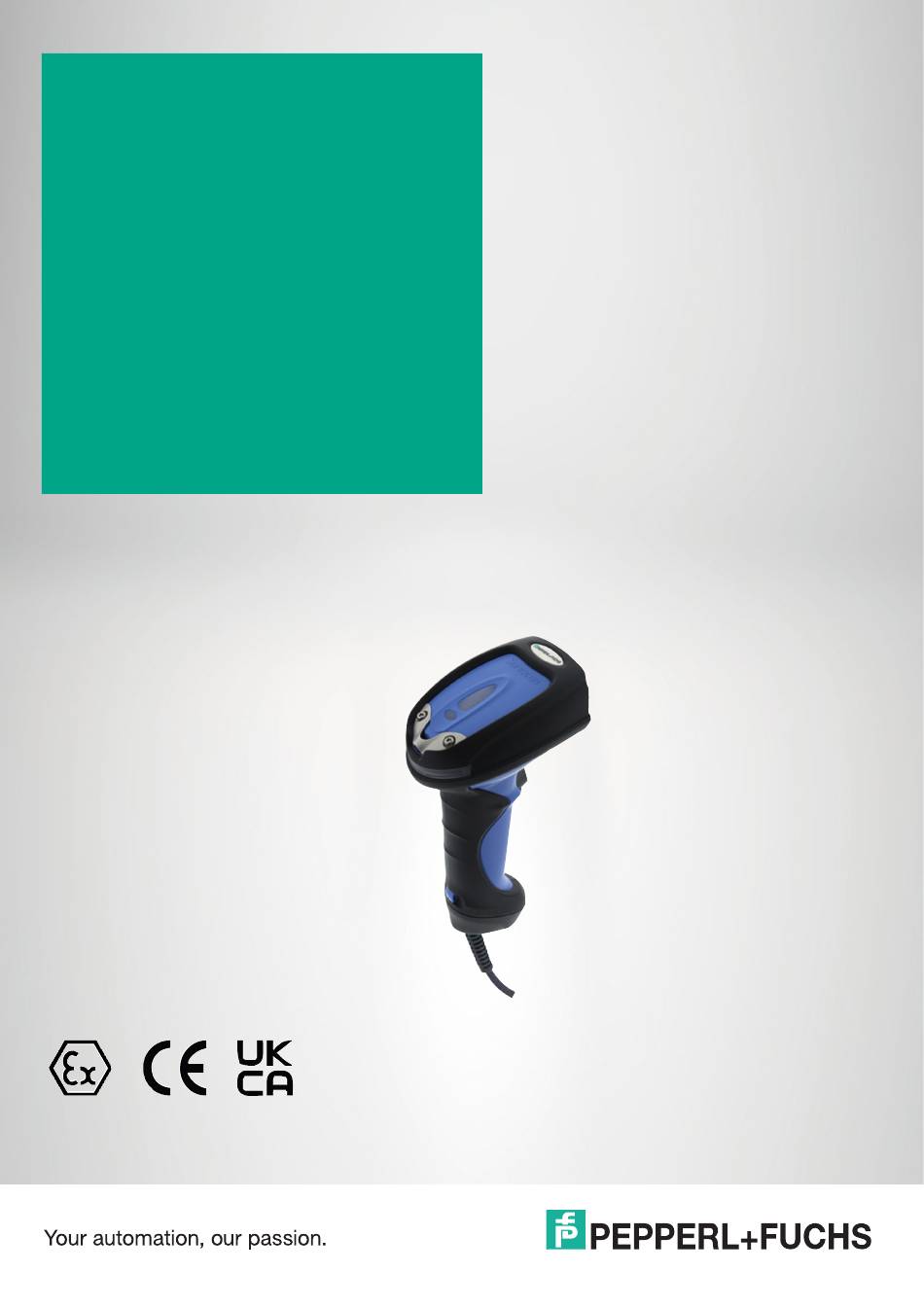

  • Page 1 IDM-Z2-164-D-1D-J2-SU-P-N0 IDM-Z2-264-D-2D-J2-S1-N-N0 Wired handheld scanner for use in explosion-hazardous areas Zone 2/22 Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...

  • Page 3: Table Of Contents

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Contents History of the Manual ....................4 Introduction........................ 5 Content of this Document ................5 Manufacturer ....................5 Target Group, Personnel ................5 Symbols Used ....................5 Technical Specifications ................... 7 Explosion Protection ..................7 Technical Data....................8 Use ........................

  • Page 4: History Of The Manual

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 History of the Manual History of the Manual Version Comments 12/2022 First edition for scanner generation x64...

  • Page 5: Introduction

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Introduction Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •...
  • Page 6 IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Introduction Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage. Depending on the risk level, the warning messages are displayed in descending order as fol-...

  • Page 7: Technical Specifications

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Technical Specifications Technical Specifications Explosion Protection IDM-Z2-164-D-1D-J2-SU-P-N0 II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc IDM-Z2-264-D-2D-J2-S1-N-N0 II 3G Ex ic IIB T4 Gc II 3D Ex ic IIIC T135 °C DC Test certificate IBExU19ATEXB016X IECEx IBE 19.0026X...

  • Page 8: Technical Data

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Technical Specifications Manufacturer Pepperl+Fuchs Group Lilienthalstraße 200 68307 Mannheim Germany info@de.pepperl-fuchs.com www.pepperl-fuchs.com Technical Data IDM-Z2-164-D-1D-J2-SU-P- IDM-Z2-264-D-2D-J2-S1-N- Description Linear imager 2-D imager Barcode One-dimensional 1-D (Bar- One-dimensional 1-D & 2-D code and stack code incl. (Barcode and stack code incl.

  • Page 9: Use

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Technical Specifications The handheld reader is a piece of handheld device. It enables portable recording and direct data transfer in explosion-hazardous areas. The device is modified for use in explosion-hazardous areas of Zone 2 and Zone 22.

  • Page 10: System Structure

    Alternatively, the handheld scanners can be connected to a PC or a programmable logic con- troller (PLC) with the associated power module and operated as "standalone" units. Warning! Wired handheld scanners may only be operated with the specified Pepperl+Fuchs connection cables! Handheld scanners may only be operated on the specified Pepperl+Fuchs supply mod- ules/barriers! The warning messages in this instruction manual and the SICK AG manual (www.SICK.com)

  • Page 11: Idm-Z2-X64-D

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 System Structure IDM-Z2-x64-D-* 4.2.1 System Structure 1 Overview of the complete system structure 1: Wired handheld barcode scanner IDM-Z2- x64-D-* connected via serial communication protocol to the supply cable and a host PC in the non-explosion-hazardous area. Corded Barcode Scanner, serial connection to Host PC (stand-alone) Figure 4.1...

  • Page 12: System Structure 2

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 System Structure Note With the USB-interface version, the maximum total cable length of the supply cable SK-IDM- Z2-J2-1M-U-N is 1 meter. Use the compatible USB cables CBL-IDMx60-D-J1-U*. 4.2.2 System Structure 2 Overview of the complete system structure 2: Wired handheld barcode scanner IDM-Z2- x64-D-* connected via serial communication protocol to the supply cable and a host PC in the non-explosion-hazardous area with optional GR.TJE.13.13.09.B-S0008 connection box for...
  • Page 13 IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 System Structure Item Num- Product Name Description Photo #70142693 HOLDER-BRACKET- Bracket to wall-mount SK-IDM-Z2-J2-* SK-IDM-Z2-N0 barrier - Material: Stainless steel AISI 304 (1.4301) - NOTE: Barrier not included! #70142118 GR.TJE.13.13.09.B- Enclosure material: glass fiber reinforced S0008 polyester (GRP)

  • Page 14: System Structure 3

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 System Structure 4.2.3 System Structure 3 Overview of the complete system structure 3: Wired handheld barcode scanner IDM-Z2- x64-D-* connected via supply cable SK-IDM-Z2-J2-1M-U-N to the USB interface of the Vis- uNet FLX system. Zone 2/22 Barcode Scanner, USB connection to VisuNet FLX: Figure 4.3...

  • Page 15: Idm-Z2-164-D-1D-J2-Su-P-N0

    Note The installation of the IDM-Z2-164-D-1D-J2-SU-P-N0 barcode reader to the integrated barrier of the VisuNet GXP requires the optional interface "3". Refer to the VisuNet GXP technical data (Module A and B) for further information regarding the interfaces.

  • Page 16: System Structure 5

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 System Structure 4.3.2 System Structure 5 Overview of the complete system structure 5: Wired 1-D handheld scanner IDM-Z2-260- D-2D-J2-S1-N-N0 connected to the power module and the USB Ex i interface "4" of the Vis- uNet GXP. Z2 Barcode Scanner, connection to VisuNet GXP via interface "4"...

  • Page 17: Commissioning

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Commissioning Commissioning Connection of the Wired Handheld Readers Connection of wired handheld readers Connect the RJ50 plug on the connection cable CBL-IDMx60* for connecting the handheld reader to the power module at the bottom of the scanner. Make sure that they are properly connected.

  • Page 18: Pin Allocation Of Supply Cable Sk-Idm-Z2-J2-5M-S-N Rs-232 Interface

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Commissioning Pin allocation of supply cable SK-IDM-Z2-J2-5M-S-N RS-232 inter- face Supply of the corded barcode reader Zone 2/22 according to system configuration 1 and 2 via plug-in connection plug/coupler. Figure 5.3 Note The serial connection cables come with a yellow marking.
  • Page 19 IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Commissioning Supply cable GND / RS-232 (brown) TxD+ / RS-422 (yellow) TxD- / RS-422 (green) GND (gray) +UB (pink) Shielding Note The wires are connected with the enclosed Sub-D plug. Supply via wires 5 and 6. When connecting without Sub-D, the shield must be connected to GND. The supply line can also be operated with RS-422 interfaces.

  • Page 20: Pin Allocation Of Supply Cable Sk-Idm-Z2-J2-1M-U-N Usb Interface

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Commissioning Pin allocation of supply cable SK-IDM-Z2-J2-1M-U-N USB interface Supply of the corded Zone 2/22 barcode reader according to system configuration 3 via plug-in connection plug/coupler. Figure 5.4 Note The USB connection cables come with a green marking.
  • Page 21 IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Commissioning Supply and data transmission with a USB interface to a host PC outside the hazardous area Supply cable Pins Designation USB Pin 1 (red) 2 (white) 3 (green) 5 (black) Note Information relating to programming from the SICK AG manual (www.SICK.com) is required for...

  • Page 22: Accessories

    IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Accessories Accessories Corded handheld reader mounting accessories Item num- Product name Description Photo #548267 SCANNER-HOLDER- Reader holder compatible with Housing U1-XX00-N0 AG-XX00 Material: Stainless steel AISI 304 (1,4301) Compatible with IDMx6x, ecom Ident- Ex® 01 and PSCAN Prepared for mounting to right side of...
  • Page 23 IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Accessories Corded handheld reader accessories for VisuNet HMI Applications Suitable for Zone 1/21 & Zone 2/22 Item num- Cable Product name Description Photo #548333 CBL-IDMx60-D-J1-S- Connection cable for Straight 1.8-m S18-N0 corded code readers length Interface: RJ50 #548334...
  • Page 24 IDM-Z2-164-D-1D-J2-SU-P-N0, IDM-Z2-264-D-2D-J2-S1-N-N0 Accessories Supply cables Explosion protection: ATEX & IECEx Zone 2/22 Item num- Product name Description Photo #70142704 SK-IDM-Z2-J2-1M-U- Cable-Barrier for corded 1-D & 2-D reader & base station Explosion protection: ATEX & IECEx Zone 2/22 Protocol: USB (via USB Type A connec-...
  • Page 25 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-8475...

This manual is also suitable for:

Idm-z2-264-d-2d-j2-s1-n-n0
