Planning the Floor Feeding System

1. Select the House Layout.
1) Control Tube
3) Feed Hopper
1) Control Tube
6) Feed Bin

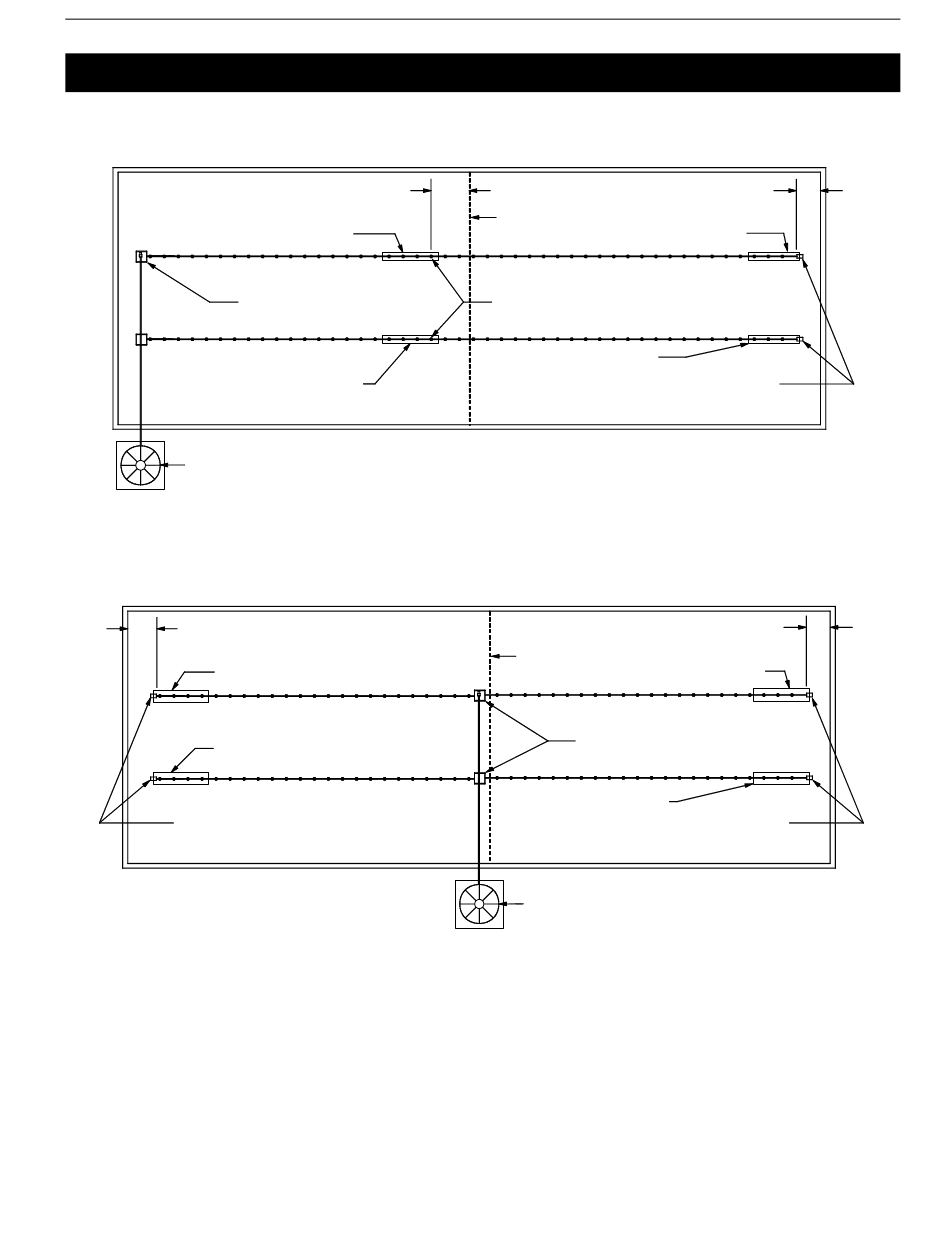

Figure 1.Component location diagram for systems up to 400 feet [122 m]. (Top View).
A. Systems with line lengths over 400' [122 m] should be split in the center, as shown in Figure 2. This will
reduce auger running time and eliminate the need for Mid-Line Controls for partial house brooding.
10' [3 m]
Minimum
1) Control Tube
1) Control Tube
4) End Control
& Power Unit
Figure 2. Component location diagram for systems over 400 feet [122 m]. (Top View).
2. Determine the Feed Bin location.
3. Determine the Brood Curtain location.
4. Determine the location for the End Control Pans. The Feeder Control Pans should be at least 10' [3 m]
from the Wall or Brood Curtain.
5. Determine the distance to the Feeder Line from the Side Wall.
6. Determine the distance from the Feed Hoppers to the End Wall for a Straight Line Feeding System.
