Adult Turkey Feeder, MODEL ATF™
Control Unit Installation
The assembly instructions are very similar for the 49040 Control Assembly and the 42343 Control Assembly. The
primary differences between the controls are in the electrical components and protection devices.
49040 Control Pan
1. Remove the four 5/16-18 x 5/8" bolts from the parts package and use them to bolt the Anchor Plate to the
Power Unit. Install the Anchor Plate with the angled end pointing down, see figure 28.
2. Bolt the Control Unit Body Assembly to the Power Unit, using hardware supplied, see figure 28.
3. Rivet the Pan Supports on the Control Unit Shield. See Figure 14 (on page 18) for instructions on riveting.
4. The Feed Level Switch is factory adjusted. To check adjustment before assembling depress the switch paddle
and listen for the switch to "click". If the switch needs adjustment, REFER TO MAINTENANCE
SECTION.
MF232Q

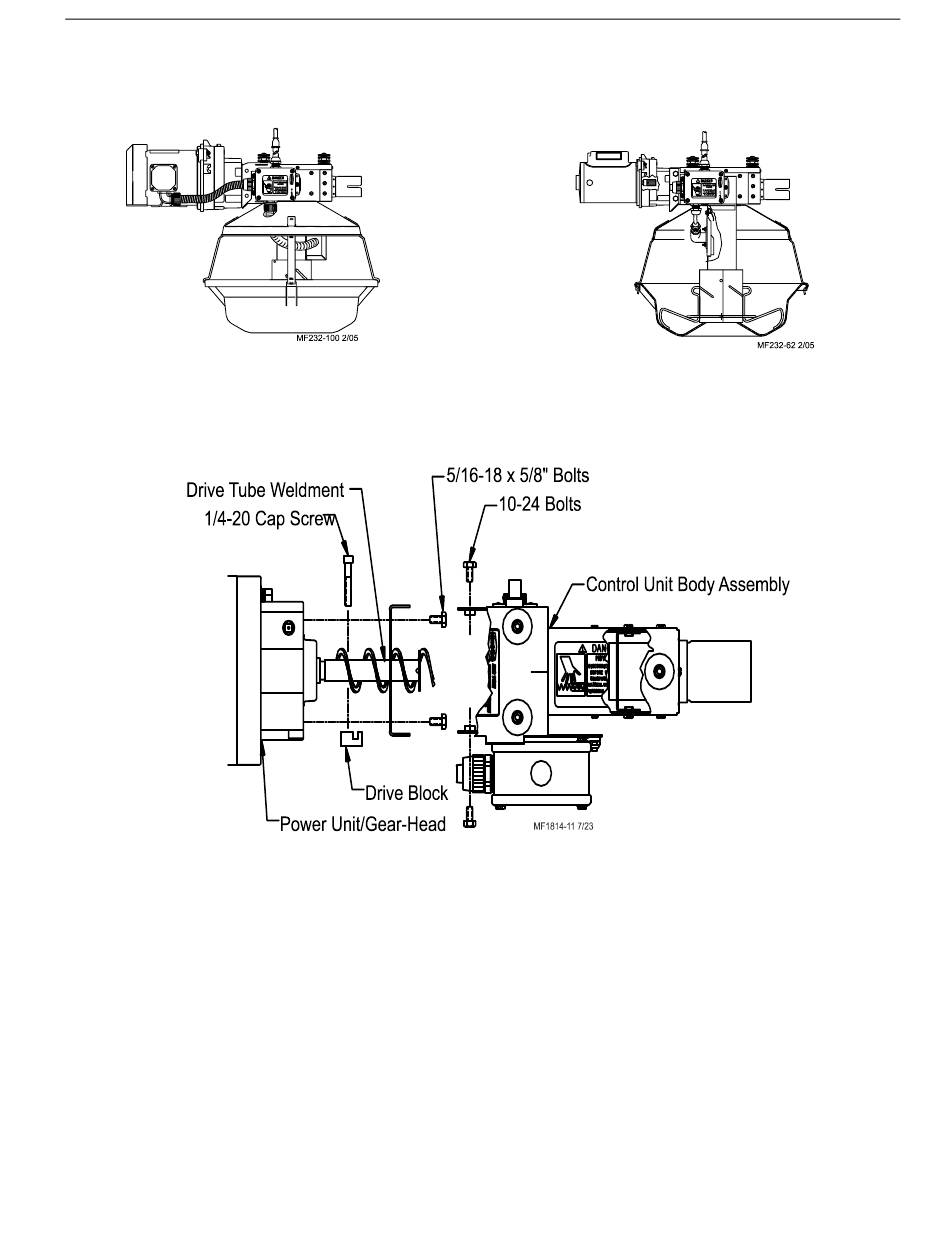

Figure 27. Control Units
Figure 28. Control Unit Installation
Feeder Line Assembly and Suspension
42343 Control Pan Sensor Plus
23
