1. Attach one Swing Down Pan Support and three regular Pan Supports to the Pan Shield using rivets supplied.
Always attach the Swing Down Pan Support at the sam location on all pan shields. It will be necessary to
support the Pan Shield while installing the rivets. Use a hammer to drive rivets as shown in Figure 14.
2. Determine which Feeder Pan (Adult Turkey or Stage II) is to be installed, see figure 15. Refer to appropriate
assembly section.
The basic assembly and installation of the Stage II Feeder is the same as the Adult Turkey Feeder. The two
primary differences being; 1) the feeder pan design, and 2) installation of the Feed Level Tube.
Stage II Feeder Assembly
Assemble the Feed level Tube & Ring with
the arrow pointing DOWN, when the
Stage II Pan is used, see figure 16.
The Feed Level Ring Should be positioned
in the second hole from the top fro Stage II
Feeder Pans. Note the direction of the
arrow.
18

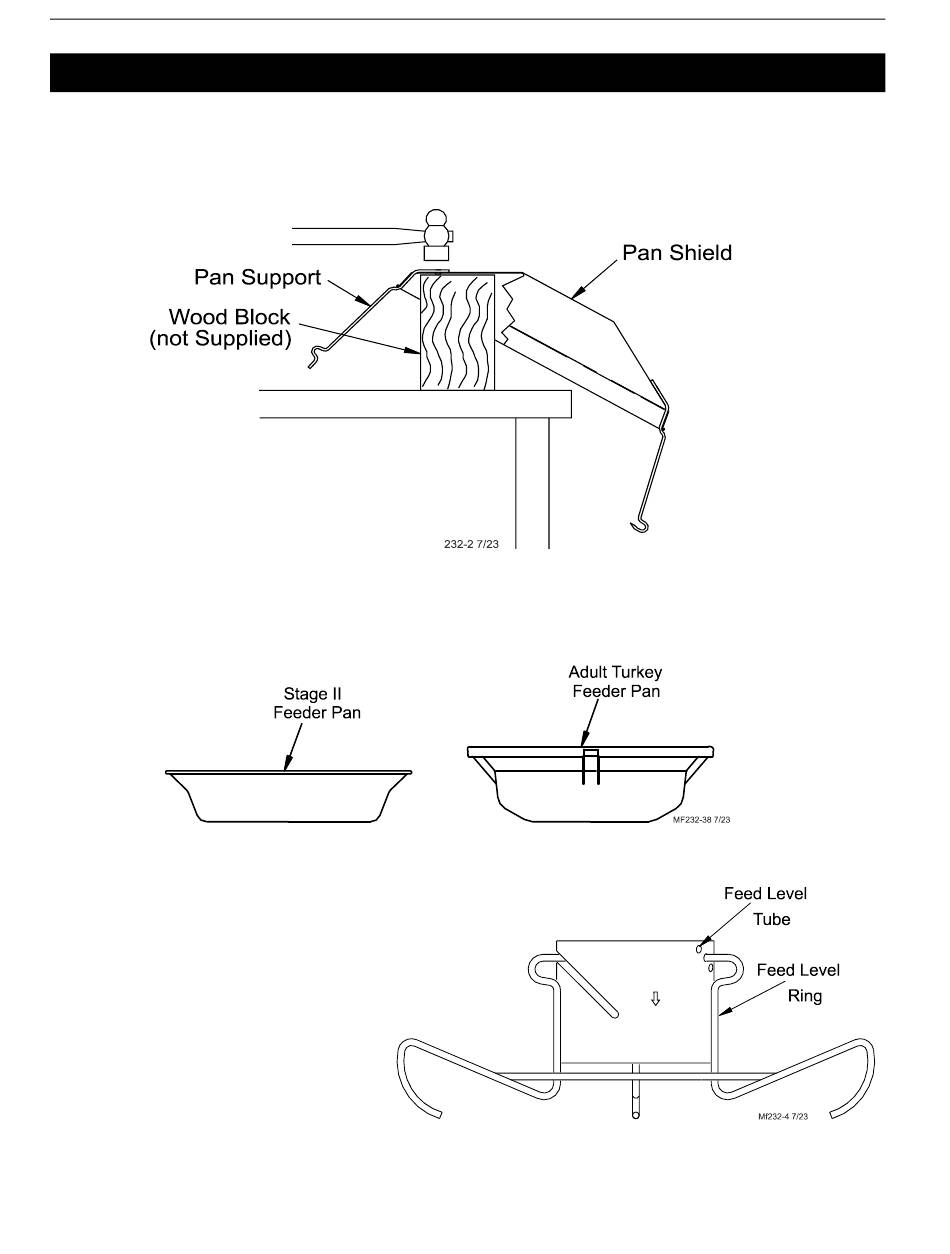

Figure 14. Pan Shield Assembly
Figure 15. Feeder Pans
Figure 16.
Adult Turkey Feeder, MODEL ATF™
Stage II Feed Level Ring
