Feeder Line Assembly and Suspension
5. Insert the Drop Tube and Switch Assembly through
the Pan Shield from the bottom, see figure 29. The
hole in the Pan Shield should be located on the same
side of the Drop Tube as the Switch Cord and
directly under the white box on the body assembly.
Bolt the Drop Tube to the Body Assembly. The
switch on the Drop Tube should be mounted opposite
the Power Unit.
6. Single Phase: Install the 90 degree connector,
flexible conduit, electrical wire, and conduit
connector as shown in Figure 30.
Three Phase: Refer to applicable electrical standards
for connecting Power unit to Control unit.
Components are not supplied by Chore-Time.
Figure 30. Conduit Installation
7. Insert the flex cable that is attached to the
control switch through the hole in the control
unit pan shield and attach the Romex
connector to the handy box, see figure 31.
8. DISCONNECT ELECTRICAL PWER
PRIOR TO WIRING THE CONTROL UNIT.
Single Phase Control Unit may be wired as
shown, See "Single Phase(Ø) Wiring
Diagram" on page 39.
Three Phase Control Unit must be wired as
shown, See "Three Phase(Ø) Wiring
Diagram: 220/230 V." on page 40.
9. Mount the control unit on the end of the feeder
line and secure with a tube clamp. See
Figure 28 (on page 23). The distance
between the control unit pan and the last pan
should be 5' (1.5 m) or less.
24
Adult Turkey Feeder, MODEL ATF™

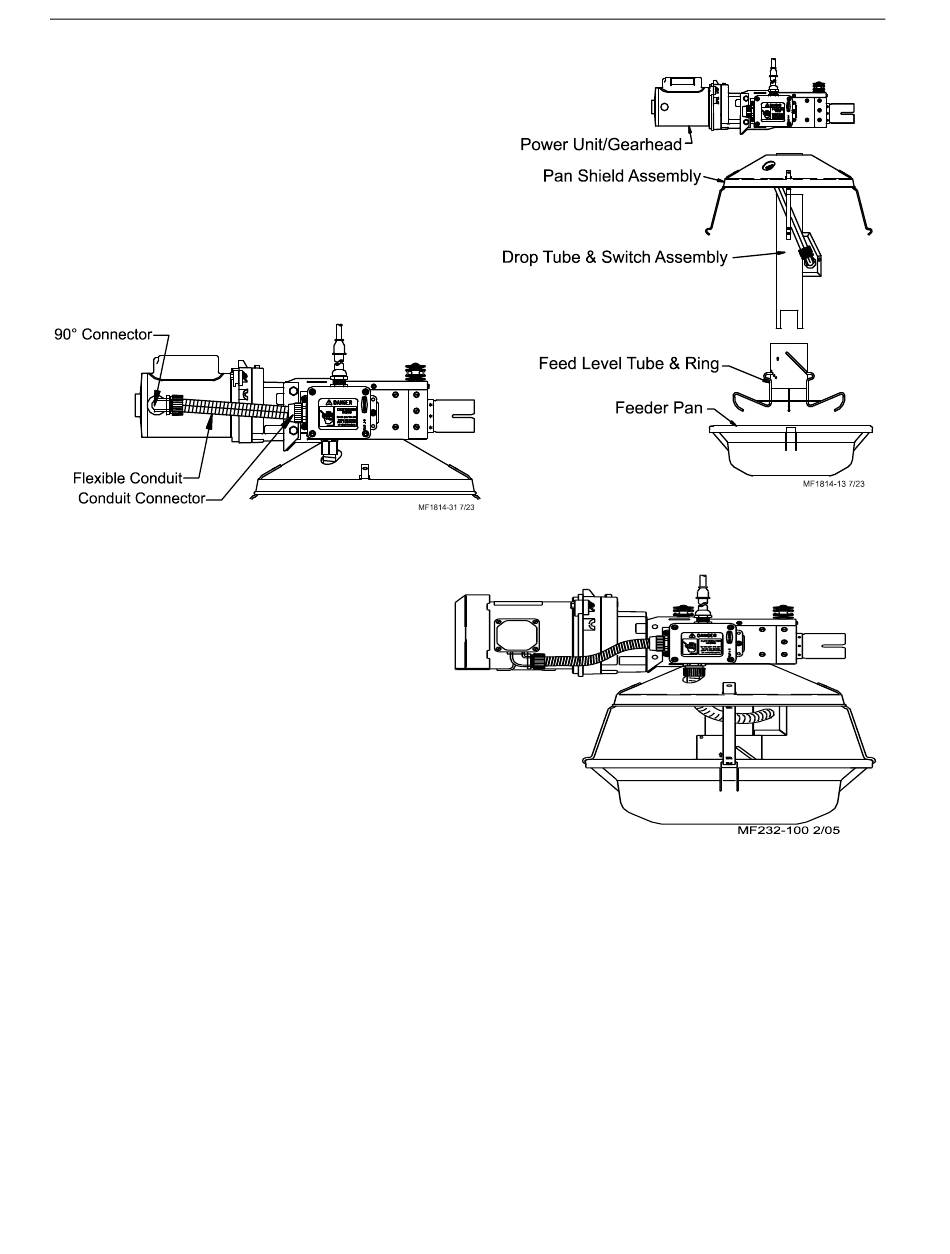

Figure 29. Drop Tube and Switch Assembly
Figure 31. Switch Installation
