Anti-Roost Installation - Chore-Time REVOLUTION Installation And Operator's Manual

Feeder Line Assembly and Suspension

Anti-Roost Installation

1. Unroll the bulk anti-roost cable.
Note: If the cable is unrolled as shown in Figure 45,
taking 5 loops of the coil with one hand and then
changing hands to remove 5 loops as it is unrolled the
cable will lie flat during installation.
2. Start at the hopper end of the line and form a loop
around the anti-roost bracket. For best results,
make a double loop around the anti-roost
insulator in the center groove of the insulator and
fasten with a 3/32" cable clamp as shown in
Figure 46.
3. Insert the cable in the insulator on the top of each
Grill Support between the hopper and the next
anti-roost bracket.
4. Attach a spring in the center
groove at the second anti-roost
bracket and cut the cable at this
point, see figure 47.
5. Thread the ends of the cable
through the end of the spring. Pull
the cable tight so there is 3/4" to 1"
(20 to 25 mm) of stretch in the
spring. Clamp the cable to from a
loop and cut off any excess, see
figure 47.
6. Attach the cable to the insulator.
For best results, make a double
loop around the anti-roost insulator
in the center groove of the
insulator and fasten with a 1/16"
cable clamp as shown in Figure
47.
7. Run the cable to the next insulator, attach a spring in the center groove at the anti-roost bracket and cut the
cable at this point. The cable should be positioned in the insulator built into the top of each grill support
along the feeder line.
8. Repeat this installation until the anti-roost cable is installed along the feeder line.
9. At the control unit, after clamping the cable to the spring, cut the cable 8" to 10" (200 to 250 mm) longer than
necessary. Feed the end of the cable through the center of the spring, around the first insulator on the control
unit, and clamp the cable using the cable clamp supplied with the control unit, see figure 48.
10. Install the wire from on the control unit insulators. Be sure the guard snaps into the retainers molded into the
insulators, see figure 48.
32

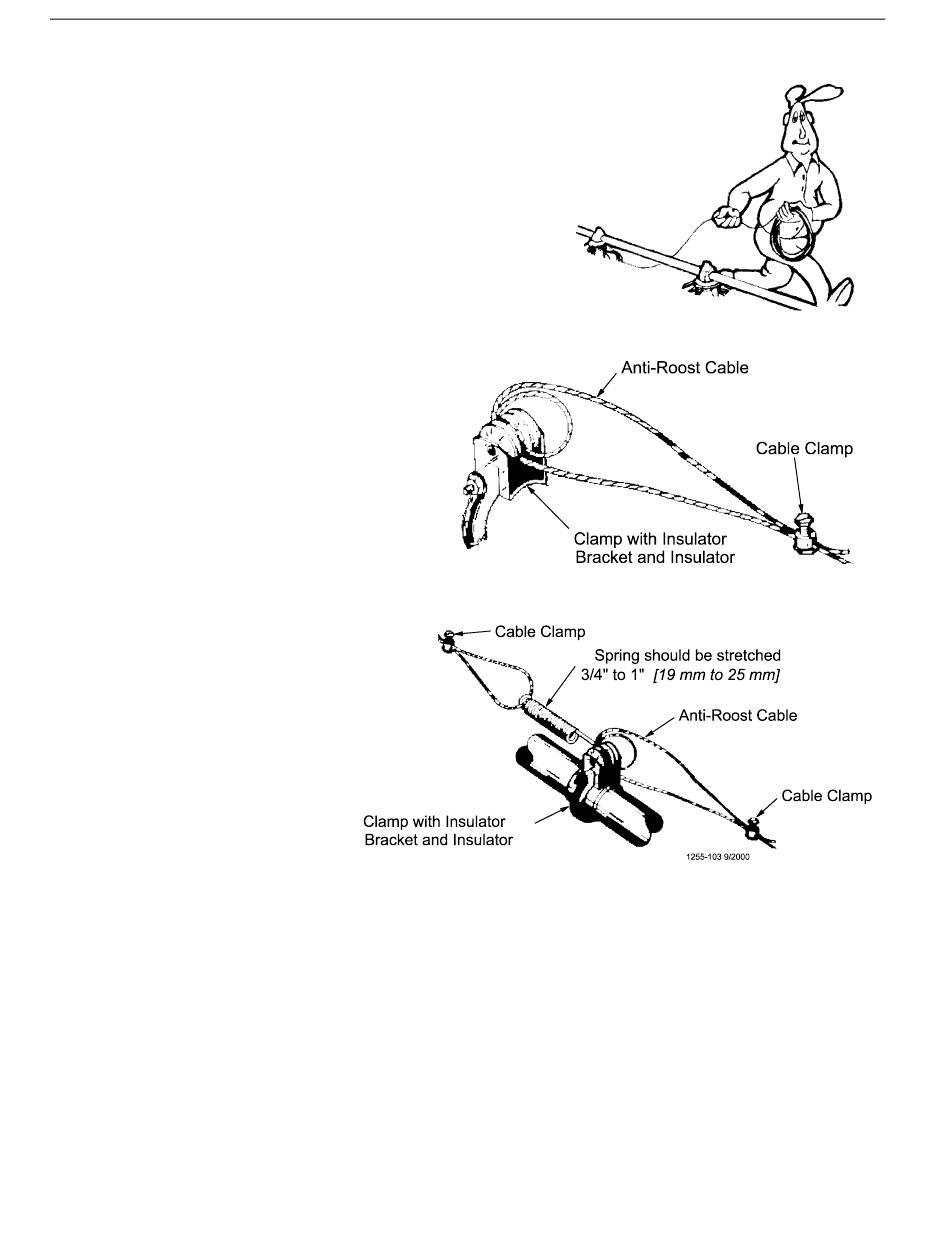

Figure 45. Unrolling the Cable
Figure 46. Anti-Roost Cable at the Hopper
Figure 47. Anti-Roost Cable at the Hopper
Adult Turkey Feeder, MODEL ATF™
MF232Q
