REVOLUTION® 8 & 12 Feeder Variable Brood Feeding System
Hopper Assembly Procedure
The 150 lb. Hopper Assembly is NOT designed for single-point suspension. The upper cross brace is designed
for supporting the drop tube ONLY. This Hopper Assembly is to have Two-point suspension as stated.
Assembly
1.Assemble the 1/4-20 x 1-1/2" bolt to the brace with two 1/4-20 nuts. One nut should be assembled under the
brace with the other on top. This bolt is to provide a place for the tube support assembly chain to be hooked,
see figure 18.
2.Assemble the 150 lb. hopper halves and brace as shown in Figure 18, using #14 x 5/8" screws (supplied in
hardware package).
3.Assemble the #8 x 1/2" screws and chain as shown in Figure 18.
MF2441D

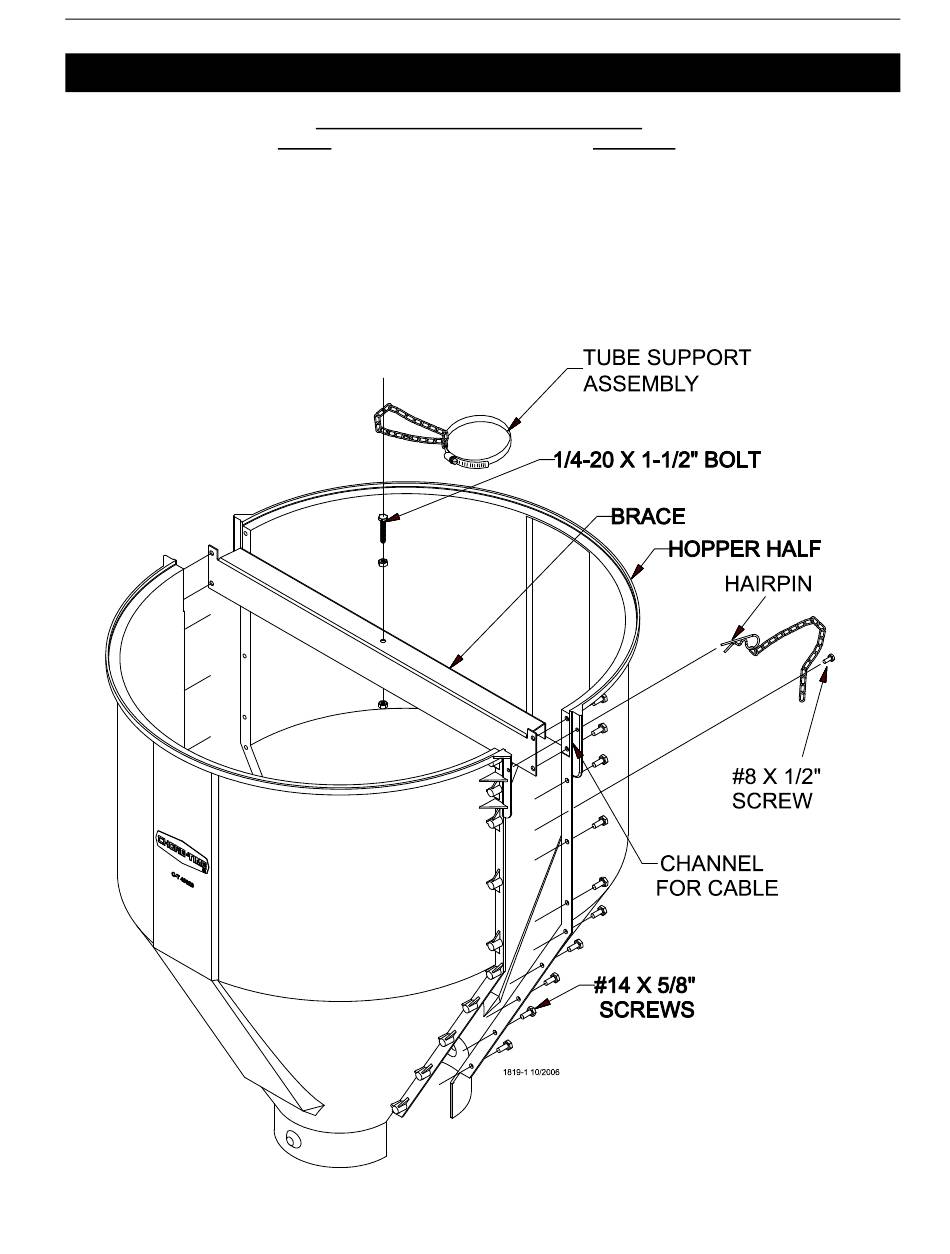

Figure 18. Hopper Assembly
