To reinstall the Anchor and Bearing Assembly:
1.Insert the Anchor Assembly into the auger until it touches the washer at the back of the anchor. Tighten the
setscrews in the center of the anchor until they touch the auger, then tighten a maximum of 1/2 turn. See
2.DO NOT OVERTIGHTEN THE SET SCREWS.
3.Carefully remove the locking pliers while holding onto the Anchor and Bearing Assembly and auger
securely.
Slowly ease the auger back into the tube. Use caution. If the auger is allowed to spring back, the bearing race
may crack.
Install the Bearing Retainer and fasten with a tube clamp. Keep the Bearing Retainer flush with the end of the
anchor for safety.

Power Lift Winch Maintenance

Refer to Figure 79.
Grease the winch every 6 months with 1 to 2 shots of common industrial or automotive grease.
DO NOT OVER GREASE THE WINCH.
Remove any feed build-up in the Safety Switch Boxes in the Control Units.
It may be necessary to periodically retighten the shocker cable. Be sure to disconnect power to the shocker before
servicing the equipment.
MF2441D

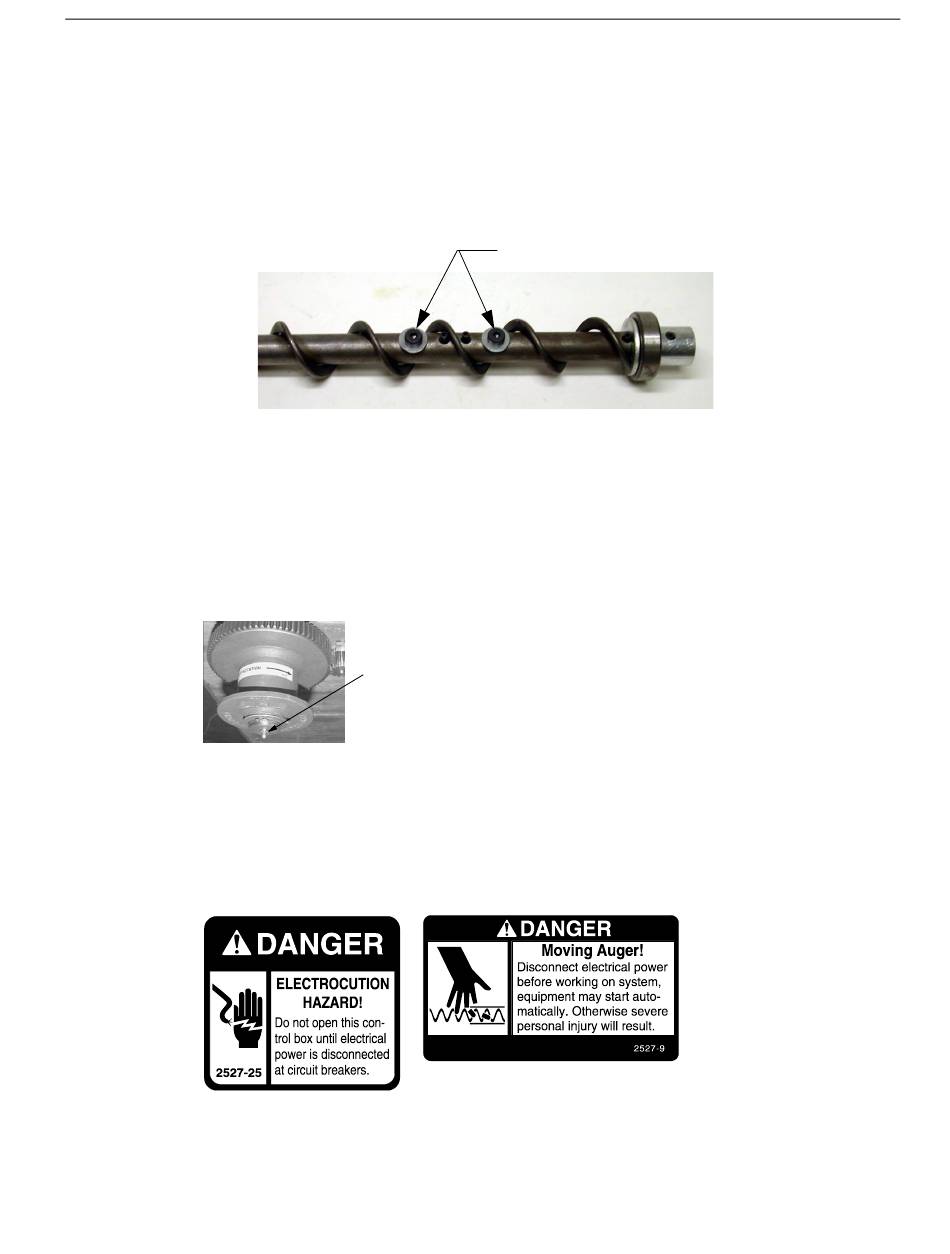

Figure 78. Auger and anchor Bearing Connection
1)Grease the Power Lift Winch every 6 months with 1
to 2 shots of common industrial or automotive grease
DO NOT OVER GREASE THE POWER LIFT WINCH
Figure 79. Maintenance to the Power Lift Winch
Lock Screws
Maintenance
