Wiring Diagrams; Internal Wiring End Control; Sensor Plus™ Control Wiring Diagram - Chore-Time REVOLUTION 8 Installation And Operator's Manual

REVOLUTION® 8 & 12 Feeder Variable Brood Feeding System

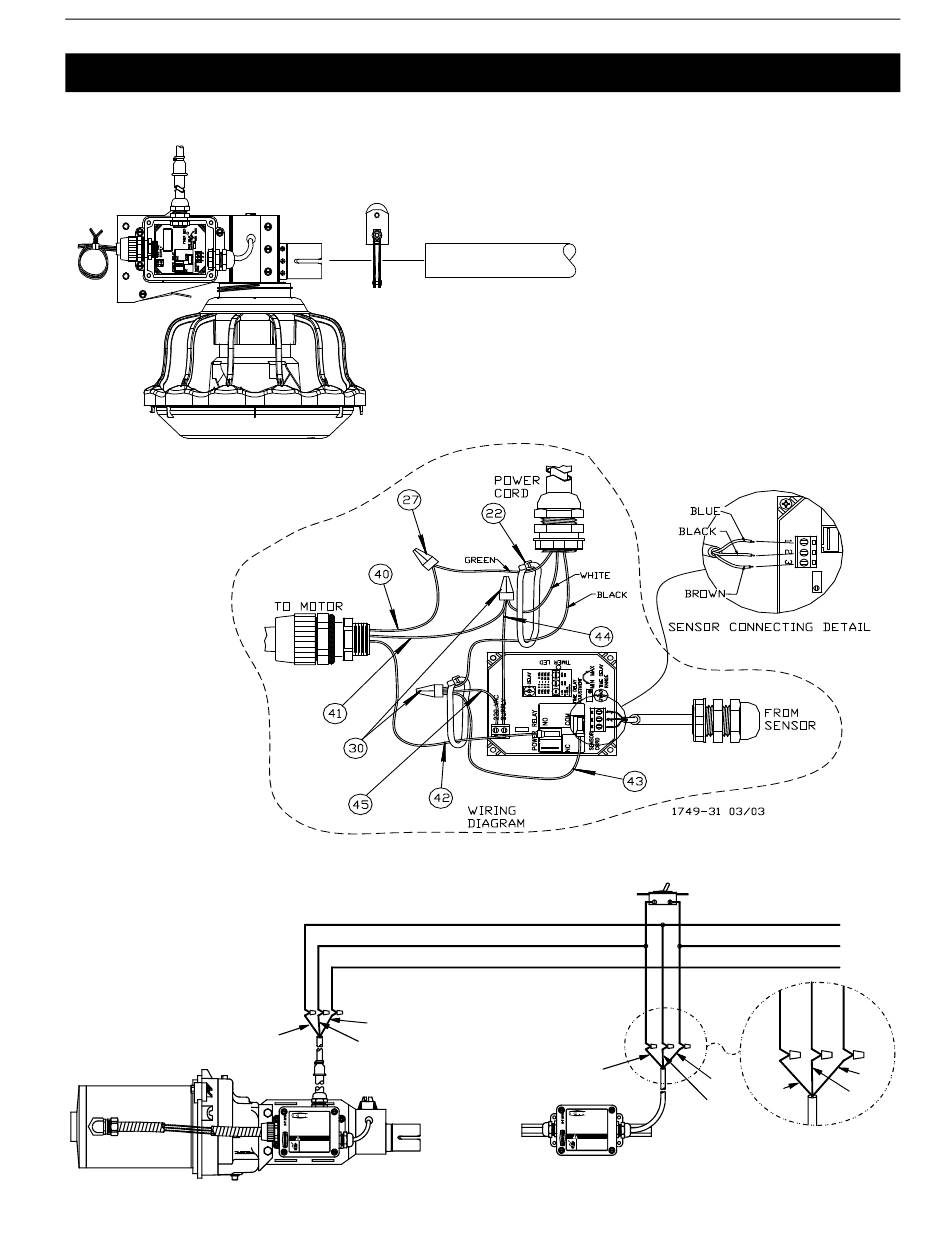

Wiring Diagrams

Internal Wiring End Control

SENSOR PLUS™ Control Wiring Diagram
Shown with
3259-84
Power Unit
MF2441D
Sensor Plus™ End Control
L2
L1
Ground
Green
White
Black
CHORE-TIME EQUIPMENT
A DIVISION OF CTB INC.
MILFORD, INDIANA 4 65 42-2000
42680 MODEL C2 PLUS
END CONTROL
WITH PROXIMITY SWITCH
2529-710
DANGER
ELECTROCUTION HAZARD!
Do not open this control
box until electrical power is
disconnected at circuit breakers.
End
Control
Bypass Switch
(not supplied)
White
Red
Black
CHORE-TIME EQUIPMENT
A DI VISION OF CTB INC.
MILFORD, I NDIANA 4 6 542-2 00 0
42663 MODEL C2 PLUS
INTERMEDIATE CONTROL
WITH PROXIMITY SWITCH
2529-711
DANGER
ELECTROCUTION HAZARD!
Do not open this control
box until electrical power is
disconnected at circuit breakers.
Intermediate
Control
Wiring Diagrams
L2
230 VAC
L1
Supply
60 HZ
Ground
Red
White
Black
3 Wire Hook Up (Typical)
1634-07 5/2000
