Machine Configuration Menu; Selecting, Changing And Saving Parameters - EWM T5.01-DC Comfort 3.0 Operating Instructions Manual

5.9

Machine configuration menu

Basic machine settings are defined in the machine configuration menu.
5.9.1

Selecting, changing and saving parameters

A
B
B
B
B
B
B
B
B
B
B
B
B
Display
099-00T501-EW501
1.8.2022
A
A
A
B B B
B
B B B
B
B B B
B B
B
B
B
B
B
Setting/selection
Exit the menu
Exit
Switching the machine off and on
Required for applying various configuration parameters
Power source menu
Switch ignition mode
-------HF ignition
-------Liftarc
HF intensity
-------Standard: Maximum value for the high-voltage ignition pulse Up
-------Reduced: Reduced value for the high-voltage ignition pulse Up
Re-ignition after arc interruption > see 5.1.6.3 chapter
-------JOB-dependent time (ex works 5 s).
-------Function disabled or numerical value 0.1–5.0 s.
Reconditioning pulse (tungsten ball stability)
Cleaning effect of the tungsten ball at the end of welding.
-------Function enabled (ex works)
-------Function disabled
Functional characteristics
B
A A A
B B
B B
B
B B
B
B B
B
B
B
B
A

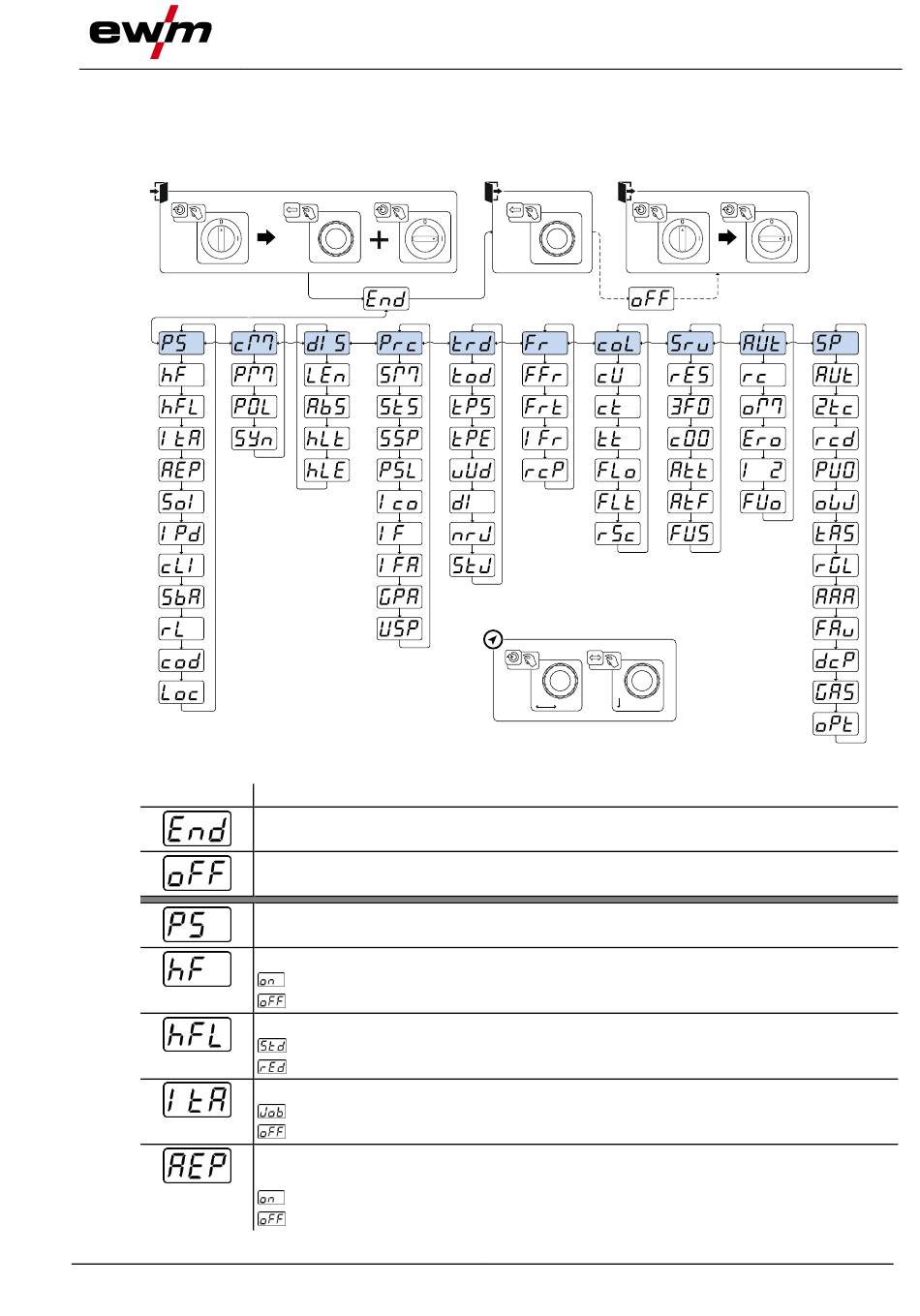

Figure 5-42
