EWM T5.01-DC Comfort 3.0 Operating Instructions Manual page 55

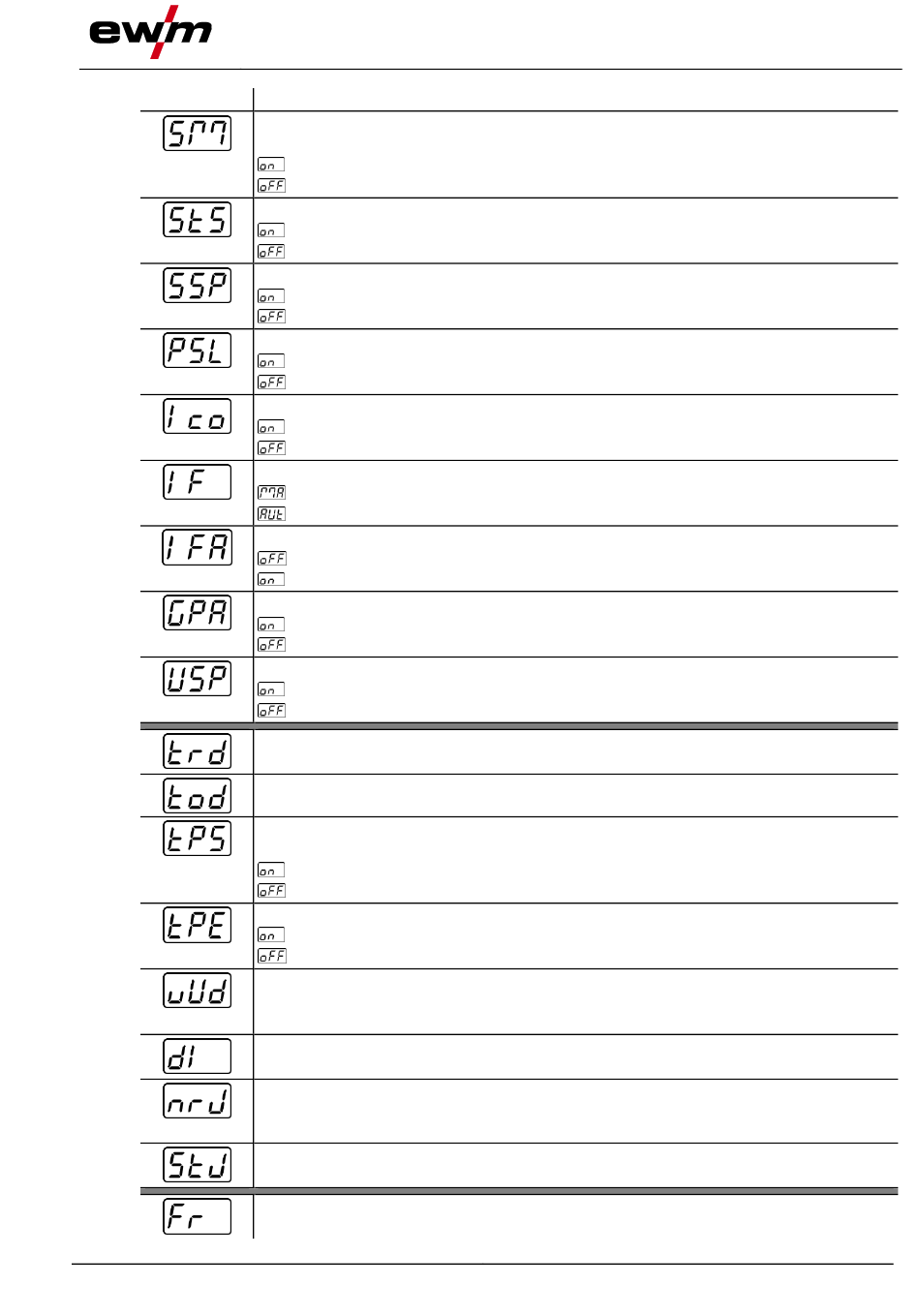

Display
099-00T501-EW501
1.8.2022
Setting/selection
spotmatic operating mode > see 5.1.7.5 chapter
Ignition by contact with the workpiece
-------Function enabled (ex works)
-------Function disabled
Spot time setting > see 5.1.7.5 chapter
-------Short spot time, setting range 5 ms to 999 ms, increments of 1 ms (ex works)
-------Long spot time, setting range 0.01 s to 20.0 s, increments of 10 ms (ex works)
Process activation setting > see 5.1.7.5 chapter
-------Separate process activation (ex works)
-------Permanent process activation
Pulsing in an upslope/downslope > see 5.1.10.4 chapter
-------Function enabled (factory setting)
-------Function disabled
Commutation optimisation (AC)
-------Function enabled
-------Function disabled (factory setting)
Waveform automatic (AC)
-------Manual setting of the waveform (factory setting)
-------Synergetic to current (requirement: Xconnect)
Waveform (AC) - advanced
-------Function disabled (factory setting)
-------Function enabled
Automatic gas post-flow function > see 5.1.1.1 chapter
-------Function on
-------Function off (factory setting)
Arc length restriction > see 5.2.8 chapter
-------Function switched on
-------Function switched off
Torch configuration menu
Set welding torch functions
Torch mode (ex works 1) > see 5.1.11.1 chapter
Alternative welding start – tapping start
Available from torch mode 11 (welding stop by tapping remains active).
-------Function enabled (ex works)
-------Function disabled
Tap end > see 5.1.11.2 chapter
-------Function enabled
-------Function disabled (factory setting)
Up/down speed > see 5.1.11.3 chapter
Increase value > rapid current change
Decrease value > slow current change
Current jump > see 5.1.11.4 chapter
Current jump setting in ampere
Get JOB number
Set maximum selectable JOBs for function torch Retox XQ (setting: 1 to 100, factory set-
ting 10).
Start JOB
Set first retrievable JOB (setting: 1 to 100, factory setting 1).
Remote control menu
Functional characteristics
1
1
1
