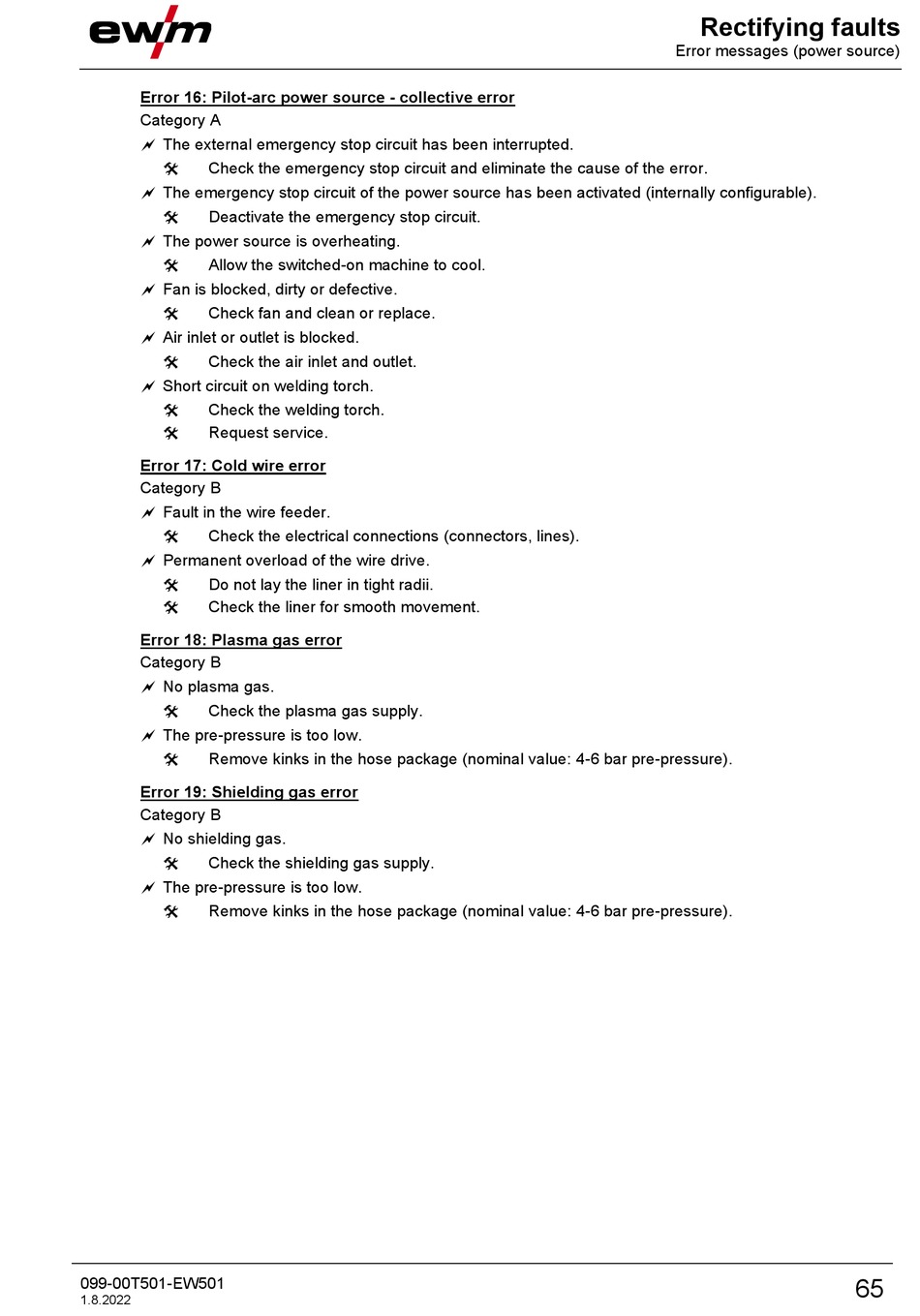

EWM T5.01-DC Comfort 3.0 Operating Instructions Manual page 65

Error 16: Pilot-arc power source - collective error
Category A
 The external emergency stop circuit has been interrupted.
Check the emergency stop circuit and eliminate the cause of the error.

 The emergency stop circuit of the power source has been activated (internally configurable).
Deactivate the emergency stop circuit.

 The power source is overheating.
Allow the switched-on machine to cool.

 Fan is blocked, dirty or defective.
Check fan and clean or replace.

 Air inlet or outlet is blocked.
Check the air inlet and outlet.

 Short circuit on welding torch.
Check the welding torch.

Request service.

Error 17: Cold wire error
Category B
 Fault in the wire feeder.
Check the electrical connections (connectors, lines).

 Permanent overload of the wire drive.
Do not lay the liner in tight radii.

Check the liner for smooth movement.

Error 18: Plasma gas error
Category B
 No plasma gas.
Check the plasma gas supply.

 The pre-pressure is too low.
Remove kinks in the hose package (nominal value: 4-6 bar pre-pressure).

Error 19: Shielding gas error
Category B
 No shielding gas.
Check the shielding gas supply.

 The pre-pressure is too low.
Remove kinks in the hose package (nominal value: 4-6 bar pre-pressure).

