Functional characteristics
TIG welding

5.1.10 Pulse welding

The following pulse types can be selected:
• Average value pulses
• Thermal pulsing
• Automated pulsing

5.1.10.1 Average value pulse welding

A special feature with average value pulses is that the power source will always maintain the preset
average value. This makes this method especially suitable for welding according to welding procedure
specifications.

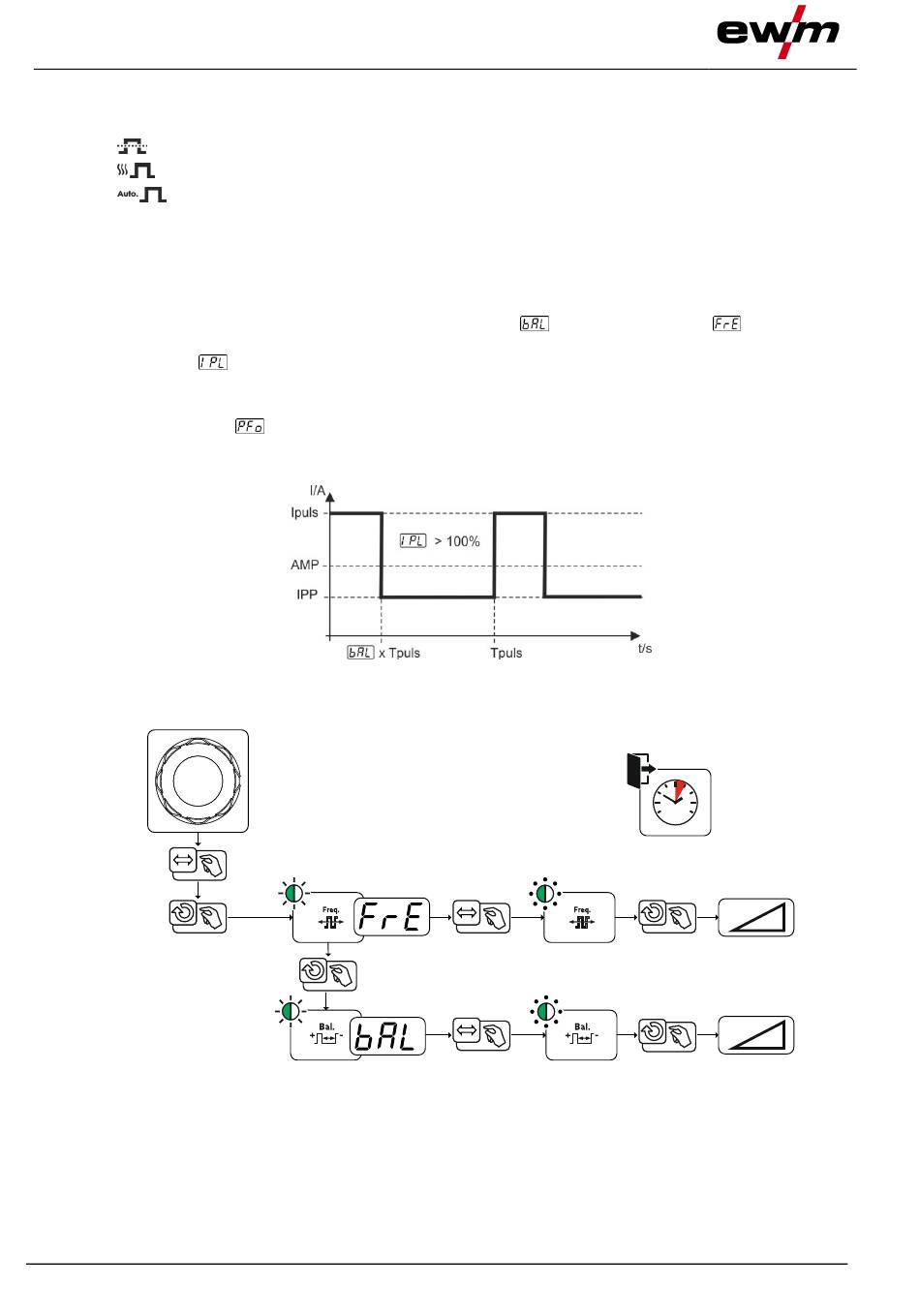

For average value pulsing, switching takes place periodically between two currents whereby an average
current value (AMP), a pulse current (Ipuls), pulse balance (
specified. The set average current value in ampere is decisive; the pulse current (Ipuls) is specified with
the parameter
The pulse pause current (IPP) is not set. This value is calculated by the machine control to ensure that
the average value of the welding current (AMP) is maintained.
With the parameter
welding task. Especially in the lower frequency range, the adjustable pulse shapes show their effect on
the arc characteristics (only TIG DC).
Setting the pulse frequency and pulse balance
36
as a percentage of the average current (AMP).
, the waveform of the pulse can be adapted in the Expert menu to the existing
) and pulse frequency (
Figure 5-16
Figure 5-17
) must be
4s
