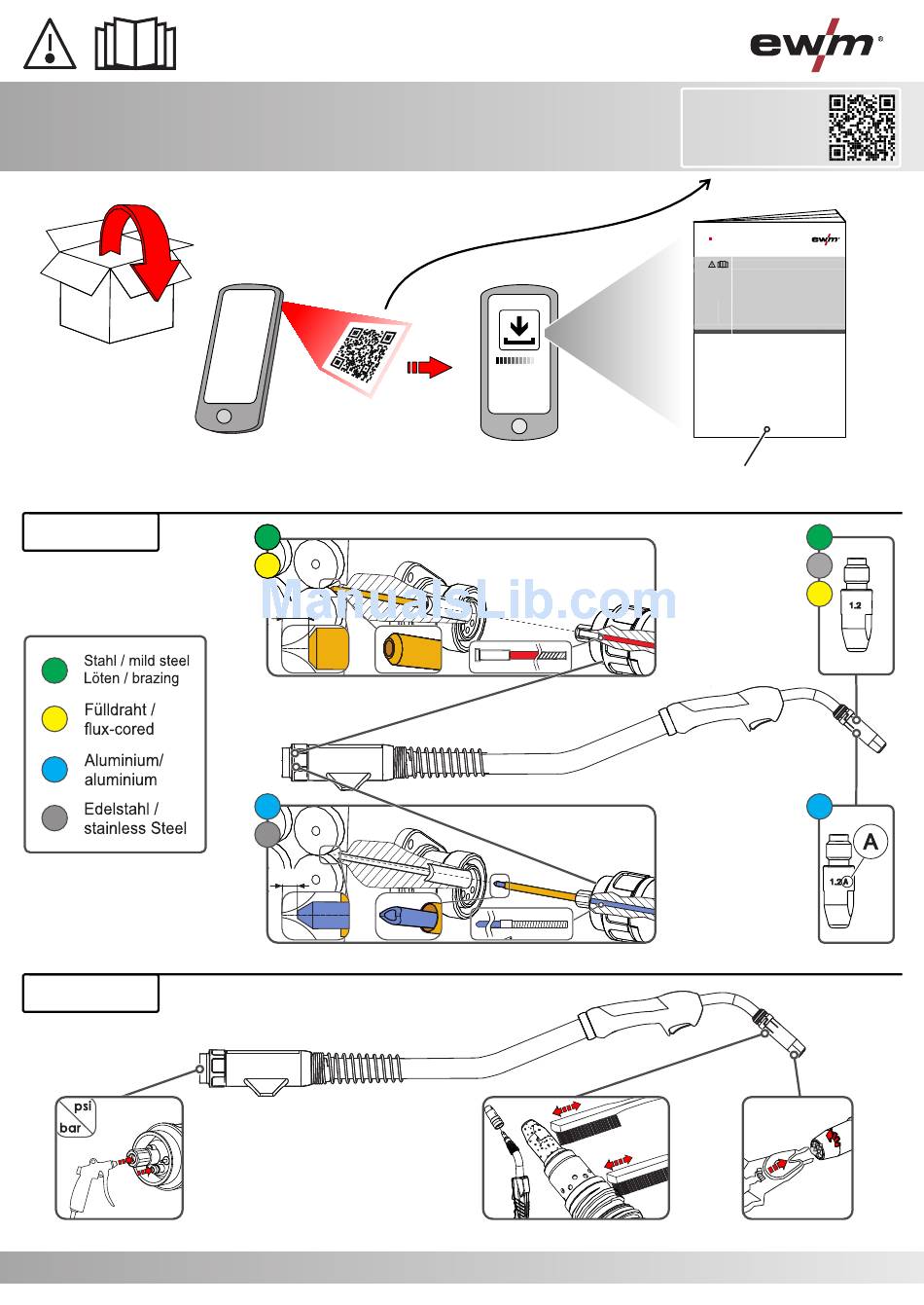

Quick Start Guide

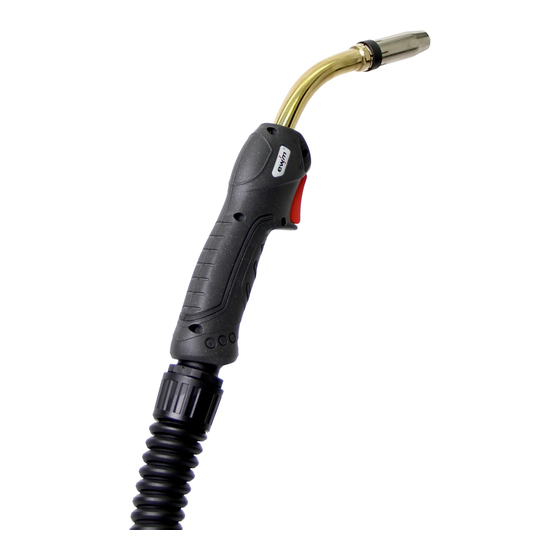

Welding Torch
Equipment
Cleaning
Min.
Min.
Art. no. 099-QG0010-EW560
Operating
instructions
Operating instructions
EN
UM 15G EZA
UM 24G EZA
UM 25G EZA
UM 36G EZA
UM 240W EZA
UM 401W EZA
UM 501W EZA
099-600010-EW501
Observe additional system documents!
Operating instructions
1/4
09.08.2017
08.08.2017
Advertisement
Related Manuals for EWM UM 24 G EZA
Summary of Contents for EWM UM 24 G EZA
- Page 1 Quick Start Guide Operating Welding Torch instructions Operating instructions UM 15G EZA UM 24G EZA UM 25G EZA UM 36G EZA UM 240W EZA UM 401W EZA UM 501W EZA 099-600010-EW501 Observe additional system documents! 09.08.2017 Operating instructions Equipment Min. Min.
-
Page 2: Water Cooled
Gas cooled Type UM 15 G EZA UM 24 G EZA UM 25 G EZA UM 36 G EZA Welding torch polarity Usually positive Guide type Manually operated Voltage type Shielding gas or mixed gas M21 according to BS EN ISO 14175... - Page 3 UM 15 G Item Order number Type Description Centring tool for narrow-gap contact 394-000469-00000 TTOOL MHS GN Eco Ø=12mm L=53mm UM 1.01 394-000472-00000 Gas nozzle, conical GN Eco Ø=9,5mm L=53mm UM 1.01 394-001212-00000 Gas nozzle, highly conical GN Eco Ø=16mm L=53mm UM 1.02 394-000211-00000 Gas nozzle cylindrical...
- Page 4 Item Order number Type Description CT Eco M6x28 E-Cu Ø=0,8mm 2.01 394-016105-00000 Contact tip, aluminium welding CT Eco M6x28 E-Cu Ø=1,0mm 2.01 394-016107-00000 Contact tip, aluminium welding CT Eco M6x28 E-Cu Ø=1,2mm 2.01 394-016108-00000 Contact tip, aluminium welding CTH Eco M6x26mm UM 394-000363-00000 Contact tip holder 24/240...
- Page 5 Item Order number Type Description 5.01 394-003656-00000 HF UM 25 Retaining spring UM 36 G Item Order number Type Description GN Eco Ø=16mm L=84mm UM 1.02 394-000431-00000 Gas nozzle, conical GN Eco Ø=12mm L=84mm UM 1.02 394-001241-00000 Gas nozzle, highly conical GN Eco Ø=19mm L=84mm UM 1.03 394-000432-00000...
- Page 6 UM 240 W Item Order number Type Description GN Eco Ø=12,5mm L=63,5mm 1.02 394-000361-00000 Gas nozzle, conical UM 24/240 GN Eco Ø=10mm L=63,5mm 1.02 394-001234-00000 Gas nozzle, highly conical UM 24/240 GN Eco Ø=17mm L=63,5mm 1.03 394-000362-00000 Gas nozzle cylindrical UM 24/240 2.01 394-001191-00000...
- Page 7 Item Order number Type Description 2.01 394-000456-00000 CT Eco M8x30 E-Cu Ø=1.6mm Contact tip 2.01 394-000458-00000 CT Eco M8x30 CuCrZr Ø=1.6mm Contact tip 2.01 394-000941-00000 CT Eco M8x30 E-Cu Ø=1mm Contact tip 2.01 394-000942-00000 CT Eco M8x30 E-Cu Ø=1.2mm Contact tip 2.01 394-014024-00000 CT Eco M8x30 CuCrZr Ø=0.8mm Contact tip...
- Page 11 EWM AG | 56271 Mündersbach | Germany | Tel.: +49 2680 181 0 | www.ewm-group.com | © 2017 Das Urheberrecht an diesem Dokument verbleibt beim Hersteller | The copyright to this document remains the property of the manufacturer Nachdruck, auch auszugsweise, nur mit schriftlicher Genehmigung | Reprinting, including extracts, only permitted with written approval...
- Page 12 EWM AG | 56271 Mündersbach | Germany | Tel.: +49 2680 181 0 | www.ewm-group.com | © 2017 Das Urheberrecht an diesem Dokument verbleibt beim Hersteller | The copyright to this document remains the property of the manufacturer Nachdruck, auch auszugsweise, nur mit schriftlicher Genehmigung | Reprinting, including extracts, only permitted with written approval...
