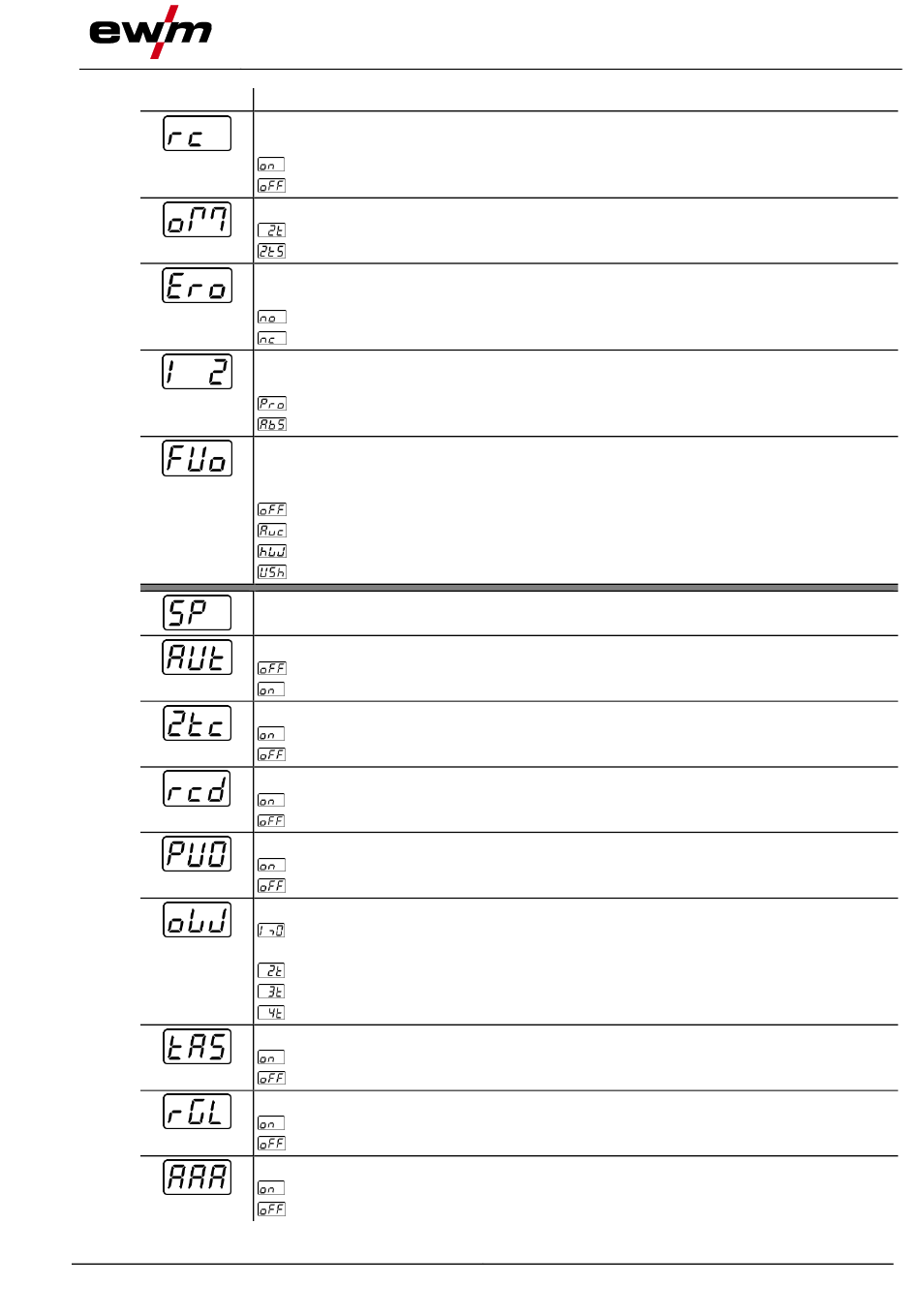

Display
099-00T501-EW501
1.8.2022
Setting/selection
Automated/Manual (rC on/off) operating mode
Select machine/function control
------with external control voltages/signals
------with machine control
Operating mode switching via interface for automated welding
------Non-latched
-------Special non-latched
Error output (relay) 3
Potential-free relay contact
------Relay contact for error message is open (factory setting)
------Relay contact for error message is closed
Setting for pulse pause current I2
The pulse pause current (I2) is set either relative or absolute to the main current (I1).
------Percentage setting (factory setting)
------Absolute setting
Function output 3
Potential-afflicted open-drain output that can emit various, adjustable signals through ac-
tive-low levels.
-------Switched off (factory setting)
-------Connection to AVC (Arc voltage control)
-------AC synchronisation or hot wire
-------Notification of a short circuit in the sensor voltage
Special parameters menu
Displaying and releasing the automation parameters
-------Function disabled (factory setting)
-------Function enabled
Non-latched operation (version C) > see 5.1.7.6 chapter
-------Function enabled
-------Function disabled (ex works)
Welding current actual value display > see 4.2 chapter
-------Actual value display
-------Nominal value display
Pulsed TIG welding (thermal)
-------Function enabled (ex works)
-------For special applications only
Filler wire welding, operating mode
-------Filler wire operation for automated applications,
wire is fed when current flows
-------Non-latched operating mode (ex works)
------- 3rd cycle operating mode
-------Latched operating mode
TIG antistick > see 5.1.9 chapter
-------function active (factory setting).
-------function inactive.
Average value controller (AC)
-------Function enabled (factory setting)
-------Function disabled
activArc voltage measuring
-------Function enabled (ex works)
-------Function disabled
Functional characteristics
3
3
2
1
Machine configuration menu
