Operating Manual
MHM-97442, Rev 2.06
February 2023
Machinery Health
Monitor

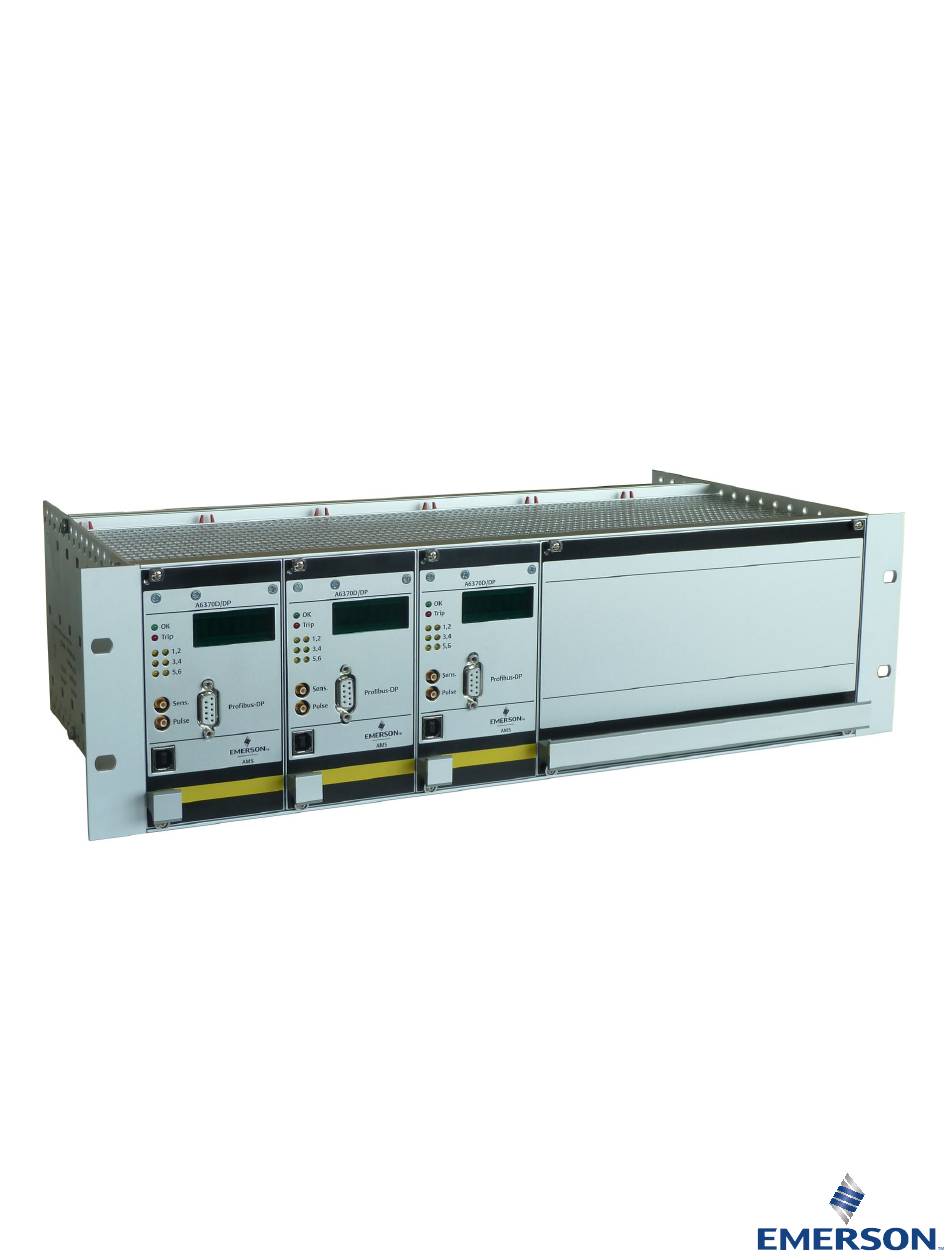

AMS 6300 SIS, Overspeed Protection System

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Machinery Health AMS 6300 SIS

  • Page 1 Operating Manual MHM-97442, Rev 2.06 February 2023 ™ Machinery Health Monitor AMS 6300 SIS, Overspeed Protection System...
  • Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is not all-inclusive and cannot cover all unique situations.
  • Page 3: Table Of Contents

    Operating Manual Contents MHM-97442 February 2023 Contents Chapter 1 General.......................... 7 1.1 Using this manual..........................7 1.2 Symbols............................7 1.3 Liability and guarantee........................8 1.4 Incoming goods inspection......................8 1.5 Firmware update..........................8 1.6 Technical support..........................8 1.7 Storage and transport........................9 1.8 Disposal of the device........................9 1.9 CSA Certification..........................
  • Page 4 Contents Operating Manual February 2023 MHM-97442 4.3 Mechanical prerequisites........................ 52 4.3.1 Eddy current measuring chain..................... 52 4.3.2 Hall effect sensor.........................56 4.3.3 VR sensor (variable reluctance sensor)..................57 4.4 Adjustment and arrangement of sensors at the machine..............57 4.4.1 Adjustment of eddy current measuring chains................57 4.4.2 Adjustment of Hall effect sensors....................
  • Page 5 Operating Manual Contents MHM-97442 February 2023 7.2 Detection of rotational direction....................133 7.2.1 Detection of rotational direction at gear wheels................ 134 7.2.2 Detection of rotational direction in safety function Protection against wrong direction of rotation............................134 7.2.3 Definition of rotational direction....................135 7.3 Acceleration measurement......................
  • Page 6 Contents Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 7: Chapter 1 General

    Operating Manual General MHM-97442 February 2023 General Using this manual This manual contains information concerning the use of the device. Read the operating manual completely prior to starting installation and operating the device. Comply with all safety instructions. Include the operating manual when transferring the device to third parties. Note When requesting technical support, please indicate type and serial number from the type plate.
  • Page 8: Liability And Guarantee

    DC voltage. Liability and guarantee Emerson is not liable for damages that occur due to improper use. Proper use also includes the knowledge of, and compliance with, this document. Customer changes to the device that have not been expressly approved by Emerson will result in the loss of guarantee.
  • Page 9: Storage And Transport

    +1.512.832.3774 (Latin America) +63.2702.1111 (Asia Pacific, Europe, and Middle East) Email Guardian.GSC@Emerson.com http://www.emerson.com/en-us/contact-us To search for documentation, visit http://www.emerson.com. To view toll free numbers for specific countries, visit http://www.emersonprocess.com/ technicalsupport. Note If the equipment has been exposed to a hazardous substance, a Material Safety Data Sheet (MSDS) must be included with the returned materials.
  • Page 10: Csa Certification

    General Operating Manual February 2023 MHM-97442 CSA Certification AMS 6300 SIS systems with backplane (A6371/00 or A6371/10) revision 10 or higher are, according to IEC 61010-1, CSA approved and marked on the backplane with the following label. Figure 1-1: CSA Label The equipment is supplied by a certified power source which is approved in accordance to IEC 60950-1 or IEC 61010-1.
  • Page 11: China Rohs Compliance

    Operating Manual General MHM-97442 February 2023 In combination with a certified external fuse or circuit breaker (see Power supply connection) that shall be used with these devices, all devices are considered to fulfil the requirements of a limited energy source to clause 9.4 of IEC 61010-1:2010. 1.10 China RoHS Compliance Our products manufactured later than June 30, 2016 and those which are sold in the...
  • Page 12 General Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 13: Chapter 2 Safety Instructions

    Operating Manual Safety instructions MHM-97442 February 2023 Safety instructions To ensure safe operation, carefully observe all instructions in this manual. The correct and safe use of this device requires that operating and service personnel both understand and comply with general safety guidelines and observe the special safety comments listed in this manual.
  • Page 14: Owner's Responsibility

    Safety instructions Operating Manual February 2023 MHM-97442 Owner's responsibility If there is a reason to suspect that hazard-free operation, and thus, adequate machine protection is no longer possible, take the device out of operation and safeguard it from unintentional operation. This is the case: •...
  • Page 15: Esd Safety

    Operating Manual Safety instructions MHM-97442 February 2023 ESD safety DANGER Internal components can be damaged or destroyed due to electrostatic discharge (ESD) during the handling of the device. Take suitable precautions before handling the device to prevent electrostatic discharges through the sensor electronics. Such measures might include, for example, wearing an ESD bracelet.
  • Page 16 Safety instructions Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 17: Application And Design

    Operating Manual Application and design MHM-97442 February 2023 Application and design Application The AMS 6300 SIS Overspeed Protection System serves the measurement of rotational speed and the detection of the rotational direction at rotating machinery to protect the machine against overspeed and startup with wrong direction of rotation. The AMS 6300 SIS is designed for the connection of eddy current measuring chains consisting, for example, of signal converter CON 011 and sensor PR 6423/xxxxxx, Hall effect sensors such as PR 9376, and VR sensors (variable reluctance sensors).
  • Page 18: System Design

    The overall firmware version 2.00 consists of the single versions 2.00 for the Safe-µC and 2.00 for the Sub-µC. The mixed operation of monitors with different firmware versions within a system is generally permitted. Emerson recommends the use of the latest firmware version. System design 3.2.1 Components The AMS 6300 SIS Overspeed Protection System consists of a number of components.
  • Page 19 Operating Manual Application and design MHM-97442 February 2023 Table 3-2: System components (continued) Component Type Description Backplane A6371/00 Trip Voted Trip Relay with 2 out of 3 logic A6371/10 Trip Not Voted Trip relay without majority voting Module frame A6352 19”...
  • Page 20: Design

    Application and design Operating Manual February 2023 MHM-97442 Table 3-4: Components AMS 6300 SIS Trip Voted (continued) Component Type Number A6381 Cables A6384 or A6386 A6385 or A6387 No mixed card types within a system. 3.2.2 Design Speed monitor A6370 Speed monitors are designed as printed circuit boards in standard Euro format (100 mm x160 mm) with a 14RU anodized front panels (approximately 71 mm width).
  • Page 21 Operating Manual Application and design MHM-97442 February 2023 Figure 3-2: Monitor - side view A. Jumper [J1] RS 485 Bus configuration B. F48 Plug connector C. Type plate with type (PN), serial number (SN), and hardware revision (Rev.) D. Boot jumper [J2] (has to be placed as shown in Figure 3-2) Backplane A6371/xx...
  • Page 22 Application and design Operating Manual February 2023 MHM-97442 Figure 3-4: Backplane Trip Not Voted - rear view A. Digital signals Monitor C B. Analog signals Monitor C C. Digital signals Monitor B D. Analog signals Monitor B E. Digital signals Monitor A F.
  • Page 23 Operating Manual Application and design MHM-97442 February 2023 Figure 3-6: Overview MHM-97442, Rev. 2.06...
  • Page 24 Application and design Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 25: Installation And Commissioning

    Operating Manual Installation and commissioning MHM-97442 February 2023 Installation and commissioning This chapter describes mounting, installation, connection, and commissioning of the AMS 6300 SIS Overspeed Protection System and the requirements on the trigger wheel together with the required arrangement of the sensors at the trigger wheel. Mounting of the system The steps below describe the mounting of the AMS 6300 SIS system.
  • Page 26: Emc-Compliant Installation

    4-5, on a suitable mounting rail (NS 35/7.5). 6. Make the connection between terminal blocks and backplane through the cables A6384 A6387. Emerson recommends using the prefabricated system cables. Identify the cables by the numbers printed on the connectors: •...
  • Page 27: Connection

    Flexible cable 0.2 mm² 2.5 mm² For connection of measuring chains and control signals, Emerson recommends using a double screened cable with twisted cable pairs (for example LiYCY-CY 2x2x0.25 mm ) to ensure the specification regarding EMC. Connect the outer cable shield to protective earth...
  • Page 28: Pin Assignment Backplane And Terminal Blocks

    Installation and commissioning Operating Manual February 2023 MHM-97442 The interface for signal control and configuration and the optional PROFIBUS interface are located on the front plate of the A6370 monitor. 4.2.1 Pin assignment backplane and terminal blocks A6380 SubD interface, 9pole Connect the analog input and output signals to the AMS 6300 SIS system through the A6380 terminal blocks and the corresponding cables A6384 or A6386.
  • Page 29 Operating Manual Installation and commissioning MHM-97442 February 2023 A6381 SubD interface, 25pole Connect digital input and output signals to the AMS 6300 SIS system through the A6381 terminal blocks and the corresponding cables A6385 or A6387. See Figure 4-5 Table 4-3.
  • Page 30 Installation and commissioning Operating Manual February 2023 MHM-97442 Table 4-3: Pin assignment A6381 (continued) Terminal Designation GND(Inp) Ground binary inputs Enable Input Enable Test value Prf2 Input Test value 2 activation Ground Digital outputs Out1 Digital- / Function output 1 Out3 Digital- / Function output 3 Out5...
  • Page 31: A6371/10 Backplane 'Trip Not Voted

    Operating Manual Installation and commissioning MHM-97442 February 2023 Table 4-4: Pin assignment A6371/00 (continued) Terminal Designation NC 2oo3 Out2 Break contact Relay Out 2 NO 2oo3 Out2 Make contact Relay Out 2 R 2oo3 Out3 Changeover contact Relay Out 3 NC 2oo3 Out3 Break contact Relay Out 3 NO 2oo3 Out3...
  • Page 32: Power Supply Connection

    Installation and commissioning Operating Manual February 2023 MHM-97442 Table 4-5: Pin assignment A6371/10 (continued) Terminal Designation NC Trip B Break contact Trip Relay B NO Trip B Make contact Trip Relay B R Trip C Changeover contact Trip Relay C NC Trip C Break contact Trip Relay C NO Trip C...
  • Page 33: Connection Of Relay Logic And Trip Relay

    Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-8: Typical time-current characteristic of the built-in fuse 4.2.4 Connection of Relay Logic and Trip Relay Table 4-4 for the terminal connection plan of backplane A6371/00 'Trip Voted'. Correspondingly, see Table 4-5 for the terminal connection plan of backplane A6371/10 'Trip not Voted'.
  • Page 34 Installation and commissioning Operating Manual February 2023 MHM-97442 Relay Logic 5: Channel OK in "1 out of 3" Figure 4-9: Relay allocation 'Trip Voted' Backplane A6371/10 'Trip Not Voted' Signal combinations (see Figure 4-10): Relay Logic 1: Function output 2 in "2 out of 3" Relay Logic 2: Function output 3 in "2 out of 3"...
  • Page 35: Connection Of Analog Signals

    35 mA. VR sensors do not require a voltage supply. Eddy current sensor Cable recommendation To achieve undisturbed and proper measurements even with longer cables, Emerson recommends using cables of type LiYCY-CY 2x2x0.25mm . At distances greater than approximately 400 m between measuring chain and speed monitor, cables with bigger crosssections are recommended.
  • Page 36 H. Connection housing/protective ground (machine ground), only CON 011 Hall effect sensor Cable recommendation To achieve undisturbed and proper measurements even with longer cables, Emerson recommends using cables of type LiYCY-CY 2x2x0.25mm between terminal box and AMS 6300 SIS. At distances greater than approximately 400 m between terminal box and AMS 6300 SIS, cables with bigger crosssections are recommended.
  • Page 37 H. Protective ground VR sensor (variable reluctance sensor) Cable recommendation To achieve undisturbed and proper measurements even with longer cables, Emerson recommends using cables of type LiYCY-CY 2x2x0.25mm between terminal box and AMS 6300 SIS. At distances greater than approximately 400 m between terminal box and AMS 6300 SIS, cables with bigger crosssections are recommended.
  • Page 38 Installation and commissioning Operating Manual February 2023 MHM-97442 Figure 4-13: Connection example with variable reluctance sensor A. Variable reluctance sensor (VR sensor) B. Terminal box C. Cable LIYCY-CY 2x2x0.25mm (maximum 400 m) D. 9-pole sub-D terminal block monitor A, B, and C (analog signals) E.
  • Page 39: Connection Of Digital Signals

    Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-14: Example diagram current output 4.2.6 Connection of digital signals Connect the digital input signals, the digital output signals, and the RS 485 Bus through the 25-pole Sub-D terminal block A6381. Each monitor in the AMS 6300 SIS system is assigned to one 25-pole terminal block.
  • Page 40 Installation and commissioning Operating Manual February 2023 MHM-97442 Setting RS 485 address Before operating the RS 485 bus, assign a device address at the range of 1 to 255 to each monitor (AMS 6300 Configuration software: Monitor → Set communication parameter). Up to 31 devices can be connected to one RS 485 bus.
  • Page 41 Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-16: Connection diagram with external bus termination A. Interface converter B. Backplane C. Monitor A D. Monitor B E. Monitor C F. 120 Ω bus termination Note To preserve the functionality of the RS 485 bus in case of a card exchange, transfer the positions of the jumpers to the new monitor.
  • Page 42 Installation and commissioning Operating Manual February 2023 MHM-97442 Digital inputs Each monitor is provided with four electrically isolated digital inputs to enable and activate the test values and to reset latched alarm outputs (see Table 4-3). A digital input signal with a voltage level between 13 V and 31 V is considered as "High" signal.
  • Page 43 Operating Manual Installation and commissioning MHM-97442 February 2023 Test value 1 Use this input to activate Test value 1. A "High" signal at this input activates Test value 1 defined in tab Test (see Test). See Test values for further information about the test values. Test value 2 Use this input to activate Test value 2.
  • Page 44 Installation and commissioning Operating Manual February 2023 MHM-97442 Select the operating mode (open-circuit mode or closed-circuit mode) for the Channel OK output during the monitor configuration (see Group Output functions). Figure 4-18: Connection example function outputs A. Monitor A, B, or C B.
  • Page 45 Operating Manual Installation and commissioning MHM-97442 February 2023 depending on the interpulse period. Use the following formula to calculate the interpulse period from the signal frequency f Input = 1/2f Pause Input Example with input signal frequency f = 1600 Hz: Input = 1/2*1600 Hz = 0.0003125s = 0.3125 ms Pause...
  • Page 46 Installation and commissioning Operating Manual February 2023 MHM-97442 Figure 4-20: Pulse/pause depending on the maximum load resistance The output current of the pulse outputs are limited to 16 mA at an environmental temperature of 25°C. The cable capacity has an influence on the pulse duration. So the maximum cable length depends on the maximum output frequency and the resistance values from the diagram above.
  • Page 47: Usb Configuration Interface

    Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-21: Connection example pulse output X = approximately 2000 Ω to R (see Figure 4-20) = xxx (optional, if R is to high) Parallel A. Monitor A, B, or C (terminal block A6381) B.
  • Page 48: Profibus Dp V0 (Optional)

    Installation and commissioning Operating Manual February 2023 MHM-97442 Note There is no signal at this socket if a VR sensor is used. Socket Pulse Based on the sensor input signal and the configured trigger thresholds the card generates a TTL signal (0 to 5 V). This signal is needed for any further function of the AMS 6300 SIS and can be tapped for test purposes and fault finding at the mini SMB socket Pulse at the monitor front.
  • Page 49 Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-22: Profibus connector Switch ON = bus termination active Switch OFF = no bus termination PROFIBUS-DP, Table of Transmission and Received Bytes The transmission of data via the PROFIBUS-DP is character-oriented. Data transmission runs in form of data blocks, that means in sequences of characters.
  • Page 50 Installation and commissioning Operating Manual February 2023 MHM-97442 Table 4-6: Profibus table (continued) Parameter No. Byte Type Byte / Bit Output / Function Measuring position Input unit LW HB Reset via parameter 31 HW LB HW HB int32 LW LB Output 1/10 V LW HB...
  • Page 51 Operating Manual Installation and commissioning MHM-97442 February 2023 Table 4-6: Profibus table (continued) Parameter No. Byte Type Byte / Bit Output / Function Measuring position Input unit Bit (2) Output GapError Latch 0 → "no error" 1 → "error - latch" Reset by parameter 30 Bit (3) Output...
  • Page 52: Mechanical Prerequisites

    Installation and commissioning Operating Manual February 2023 MHM-97442 uint: unsigned integer int: signed integer Reset of parameters 14 to 17 Reset of parameter 4 Reset of the internal rotational direction information, though not of the stored status. Same function like digital input “Reset Latch” respectively command “Reset Latch” of the configuration software. Same function like digital inputs “Test value 1”...
  • Page 53 Operating Manual Installation and commissioning MHM-97442 February 2023 - Type PR 6422: 4 mm - Type PR 6423: 6 mm - Type PR 6424: 12 mm • When using trigger wheels with normal toothing, the following modules (gear parameter) are recommended: - Type PR 6422: module ≥...
  • Page 54 Installation and commissioning Operating Manual February 2023 MHM-97442 Figure 4-24: Trigger wheel with rectangular tooth profile A. Eddy current sensor PR 642x B. Tooth tip C. Tooth base The following sections describe the mechanical requirements for trigger wheels with rectangular tooth profiles. Tooth depth Chose the tooth depth of the trigger wheel so that the sensor does not detect the ground of the gap between the teeth.
  • Page 55 Operating Manual Installation and commissioning MHM-97442 February 2023 Width_of_the_wheel = 8 mm+2*3 mm+2 mm=16 mm Table 4-7: Trigger wheel width Sensor type Head diameter D [mm] Distance X [mm] PR 6422 PR 6423 PR 6424 Figure 4-26: Trigger wheel width A.
  • Page 56: Hall Effect Sensor

    Installation and commissioning Operating Manual February 2023 MHM-97442 • PR 6422: module ≥ 4 • PR 6423: module ≥ 6 • PR 6424: module ≥ 10 Note For the detection of the rotational direction in measuring mode "Trigger wheel" (AMS 6300 Configuration, parameter Measuring mode (Pulse form)) a trigger wheel with a symmetry of 50/50 is required.
  • Page 57: Vr Sensor (Variable Reluctance Sensor)

    Installation and commissioning MHM-97442 February 2023 Trigger wheel width Emerson recommends that the width of the trigger wheel should be larger than the diameter of the Hall effect sensor plus the expected axial displacement (see Figure 4-29). A smaller width of the trigger wheel may lead to the total signal loss if the axial displacement moves the trigger wheel out of the measuring range of the sensor.
  • Page 58 Installation and commissioning Operating Manual February 2023 MHM-97442 Figure 4-30: Distance A. Eddy current sensor PR 642x B. Distance Radial clearance (Radial vibration) Radial vibrations of the machine make measurements of rotational speed more difficult or even impossible when the amount of the vibration exceeds a critical value. For this reason, the influence of the radial vibrations should be kept as low as possible.
  • Page 59 Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-31: Example signal with radial vibrations Definition of the adjustment level Define with the following formula the minimum voltage level for the sensor adjustment. + (Distance* (U ) / MB Adjust Start Start Sensor...
  • Page 60 Installation and commissioning Operating Manual February 2023 MHM-97442 Figure 4-32: Sensor adjustment example Distance tooth tip - Sensor = 0.95 mm A. Eddy current sensor PR 6423 B. Sensor over tooth tip, U = -5.2 V C. Sensor over tooth base, U = approximately -21 V Important for a proper speed measurement is also a rigid and vibration-free holder for the sensor.
  • Page 61: Adjustment Of Hall Effect Sensors

    Operating Manual Installation and commissioning MHM-97442 February 2023 4. Tighten the sensor and all screws. When using signal converters CON 011, close the converter cover. 5. If it is not possible to perform the adjustment electrically with the sensor in front of a tooth of the trigger wheel, adjust the sensor mechanically with a mechanical distance gauge.
  • Page 62: Sensor Arrangement At Trigger Wheels With Rectangular Tooth Profile For Safety Function "Protection Against Wrong Rotational Direction

    Installation and commissioning Operating Manual February 2023 MHM-97442 4.4.4 Sensor arrangement at trigger wheels with rectangular tooth profile for safety function "Protection against wrong rotational direction" The detection of rotational direction and function pulse comparison require a phase shift between the input signals of the channels. This phase shift is defined during the sensor installation with the design of the mounting brackets (mounting angle).
  • Page 63 Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-34: Arrangement of the sensors A. Channel A B. Channel B C. Channel C D. Sensor A E. Sensor B F. Sensor C G. r (radius trigger wheel + distance to the sensor) Possible mounting positions for sensor B would be, for example: Position sensor A + 1,33 * P;...
  • Page 64: Gear Wheels

    Installation and commissioning Operating Manual February 2023 MHM-97442 the trigger wheel d [mm]. In general, at trigger wheels with a relatively great number of teeth the sensors have to be installed more accurately than at trigger wheels with a relatively small number of teeth. Figure 4-35: Permissible tolerance from the mounting position Depending on the diameter of the trigger wheel d [mm] and the number of teeth n[], calculate the maximum permissible deviation Δ...
  • Page 65: Minimum Distance Between Sensors

    Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-36: Pulse sequence gear wheel Minimum distance between sensors To avoid mutual influences between sensors of type PR 642x, ensure not to install them below the minimum distance between the sensor heads. See installation guide of the converter used (CON 011: MHM-97858, CON 021/031: MHM-97859, or CON 041: MHM-97860) for further information.
  • Page 66: Shielding And Grounding

    For connecting measuring chains and sensors, the use of double shielded cables with shielded twisted pairs and an additional outer shield is recommended. Emerson recommends using cables of type LIYCY-CY 2x2x0.25 mm .
  • Page 67: Power-Up And Commissioning

    Operating Manual Installation and commissioning MHM-97442 February 2023 Figure 4-38: Shield connection of sensor cable A. Terminal box B. Cabinet C. Cabinet ground D. Protection ground Shielding against electric fields The shielding against electric fields requires the grounding of the cable shield on one side. Connect the outer and inner shield of the cable connected to the sensor input to the protective earth terminal directly at the cable inlet of the control cubicle.
  • Page 68: Start A Configured System

    Installation and commissioning Operating Manual February 2023 MHM-97442 with an external signal through input Reset Latch (see Digital inputs) or with the a software command Reset Latch (see Monitor). 4.9.2 Start a configured system The AMS 6300 SIS systems starts running as soon as the supply voltage is switched on. During the startup, the display of the respective AMS 6300 SIS monitor displays the device type and the firmware version for about 3 seconds.
  • Page 69: Chapter 5 Configuration

    Operating Manual Configuration MHM-97442 February 2023 Configuration The following chapter describes the configuration of the A6370 monitors with the AMS 6300 Configuration software. Download the software by using the link (see Figure 5-1) on the CD which is part of the configuration kit "A6910 Configuration Kit". Alternatively enter http://reliabilitymobile.com/apps/registration/Account/Login.aspx into the address bar of your internet browser.
  • Page 70: Online Configuration

    Configuration Operating Manual February 2023 MHM-97442 5.1.1 Online configuration Procedure 1. Connect the +24 V power supply to the AMS 6300 SIS and switch power on (see Power supply connection). 2. Connect the interface cable to computer and monitor (see USB configuration Interface).
  • Page 71: Start The Configuration Software

    Start the configuration software After the installation of the software click the program icon on the desktop (see Figure 5-2) or click Start → Programs → Emerson Process Management → AMS 6300 → AMS 6300 Configuration. Figure 5-2: Program icon...
  • Page 72: General Description Of User Interface

    Configuration Operating Manual February 2023 MHM-97442 General description of user interface 5.3.1 Start menu If there is no communication with a monitor, the software will start with the user interface as shown in Figure 5-4. Figure 5-4: Start view A. Menu bar The individual menus with their submenus are described below.
  • Page 73 Operating Manual Configuration MHM-97442 February 2023 Open Click Open → Project to open the project files with the help of a file browser. Click a 5-5) to enable menu item Configuration. Use monitor in the project tree, (see Figure Configuration to load individual configuration files for the selected monitor. Figure 5-5: Project tree A.
  • Page 74 Configuration Operating Manual February 2023 MHM-97442 Figure 5-6: Service report indication A. Service report indication Save … and Save as… Click Save to save the data at the same location, without a further question dialog. If the data is not saved yet, the file browser opens to define file name and the storage location. Click Save as...
  • Page 75 Operating Manual Configuration MHM-97442 February 2023 Figure 5-7: Menu item Save… A. Save single monitor configuration B. Save project Close Click Close to exit the configuration software. Any unsaved changes are lost. Settings This menu contains the single menu item Communication. Click Communication to open Communication settings (see Figure 5-8) for the configuration of the serial...
  • Page 76 Configuration Operating Manual February 2023 MHM-97442 Figure 5-8: Serial communication interface settings Note The USB interface is not listed here as configuration of the USB connection is not necessary. Protocol Chose the communication protocol from the list field. • RS 232 Communication with the monitor through the configuration interface.
  • Page 77 Operating Manual Configuration MHM-97442 February 2023 Prioritized Generally, the configuration software continuously scans all detected COM ports for connected monitors. COM ports with a checkmark in the corresponding box are scanned at a higher priority. Error occurred This field shows, whether an error has occurred at this port. 485 Start Address / 485 End Address Enter here an address range.
  • Page 78 Configuration Operating Manual February 2023 MHM-97442 Figure 5-9: Configuration differences The following example describes the comparison of a stored configuration file with a configuration of a connected monitor. Procedure 1. Start the configuration software and connect the computer to an active (powered on) monitor.
  • Page 79 Without registration only the status indication of the monitors can be opened (user View). Note The password entry is case sensitive. Emerson recommends to change the password for user "Admin" after the first login. Logout Click Logout to log-off the current user. Administration Click Administration to open the user management.
  • Page 80 Configuration Operating Manual February 2023 MHM-97442 Figure 5-10: User management A. Entry fields for user data B. Admin rights selection C. Command rights selection D. Configuration rights selection E. List of registered users F. Buttons User Enter the data of the user into this field. Login name is filled in automatically with the registration of a new user.
  • Page 81 Operating Manual Configuration MHM-97442 February 2023 Note Modifications of the data of user Admin or removing this user is not possible. It is only possible to change the administrator password. Configuration rights Place a checkmark in the corresponding box to assign one or more of the following authorizations for the configuration of monitors to the users.
  • Page 82 Configuration Operating Manual February 2023 MHM-97442 This list shows all available user accounts. Click the corresponding line to chose an user account and edit it. Editing requires the admin rights Edit right of other users and Edit users. Buttons Add user Click Add user to create a new user, provided the user has the corresponding authorization for this.
  • Page 83 Operating Manual Configuration MHM-97442 February 2023 Change Password Click Change Password to change the password of the currently logged in user. The password has to consist of at least 6 and not more than 20 characters. Language Click Language to open the selection list. Select the desired language. Help About…...
  • Page 84 Configuration Operating Manual February 2023 MHM-97442 command File → New or by connecting a monitor through an interface (USB, COM Port, or RS 485). The monitor name consists of the product name and the serial number or the name of the measurement (see Group Label).
  • Page 85: Monitor - Graphical User Interface

    Operating Manual Configuration MHM-97442 February 2023 Figure 5-13: Delete monitor A. Pop-up menu with command: delete monitor 2. Click Delete monitor to delete the selected monitor from the project tree. All previous changes of its configuration are lost. 5.3.2 Monitor - graphical user interface For a monitor selected in the rack overview, the user interface offers two main interfaces, the monitor status interface Status and the monitor configuration interface Configuration.
  • Page 86 Configuration Operating Manual February 2023 MHM-97442 Enable test values Select Enable test values to open the Enable test values dialog for activating or deactivating of both configured test values (Figure 5-14). See Test values for further information on the use of test values. Figure 5-14: Dialog Enable test values Proof test Select Proof test to open the Proof test dialog.
  • Page 87 Operating Manual Configuration MHM-97442 February 2023 ! " # $ % & ' ( ) * + , . / : ; < = > ? @ [ \ ] ^ _ ` { | } ∼ • Figure 5-15: Dialog New monitor Keyword Note After the first input of the monitor keyword within one session (time period with a user has logged in) the keyword remains stored until the user is logged off again.
  • Page 88 Configuration Operating Manual February 2023 MHM-97442 3. Click Monitor → Set monitor keyword to open the New monitor Keyword dialog. 4. Enter the received keyword for the reset in field Old monitor keyword and define a new keyword for the monitor (fields New monitor keyword and Confirm new monitor keyword).
  • Page 89 Operating Manual Configuration MHM-97442 February 2023 Click Send to load configuration parameters to the monitor. Before the loading process starts, a dialog opens to confirm the safety relevant parameters. Initialize Click Initialize to open the assistant for the monitor configuration (see Figure 5-18).
  • Page 90 Configuration Operating Manual February 2023 MHM-97442 Figure 5-19: Warning Monitor initialization Print Click Print to print the configuration of the chosen monitor, for example, for documentation or archiving purposes. Service report Click Service report → Create to generate a service report containing the configuration parameters and all current status information.
  • Page 91 Operating Manual Configuration MHM-97442 February 2023 Figure 5-20: Status Figure 5-21: Configuration MHM-97442, Rev. 2.06...
  • Page 92: Configuration - Offline

    Configuration Operating Manual February 2023 MHM-97442 5.3.3 Configuration - offline In the offline operation (without a connection between computer and A6370 monitor), prepare and store parameter sets as configuration files on the computer. At any time later, with an existing connection between computer and monitor, load the configuration files to the monitor.
  • Page 93 Click User → Login and login with the following credentials: User name: Admin Password: 3637766 Emerson recommends to crate an account for every user. For more details on the user administration see User management. Plausibility check Inconsistent settings are indicated below the tabs. As long as an error message is indicated, the configuration cannot be loaded into the monitor.
  • Page 94 Configuration Operating Manual February 2023 MHM-97442 Figure 5-24: Information Group Monitor Monitor type The entry in this field shows the predefined or chosen monitor type. The entry cannot be changed here. Last change by The entry in this field shows the name of the user who last made and saved parameter changes at this configuration.
  • Page 95 Operating Manual Configuration MHM-97442 February 2023 Enter here the KKS/RDS-PP number according to the power plant identification system under which sensor or measuring chain are documented in the project documentation. This designation is stored in the monitor and serves as identification. The maximum length for the KKS/RDS_PP text is 20 characters.
  • Page 96 Configuration Operating Manual February 2023 MHM-97442 • Hall Choose Hall if a Hall effect sensor is connected. • Choose VR if a variable reluctance sensor is connected Sensor monitoring The checkbox Sensor monitoring is available when Hall or VR has been selected as sensor type.
  • Page 97 Operating Manual Configuration MHM-97442 February 2023 Table 5-1: Recommended limit values (continued) Sensor type Upper sensor Lower sensor Explanation voltage limit voltage limit Hall effect sensor 18.5 V Channel OK is switched off if the input voltage is within the defined range.
  • Page 98 Configuration Operating Manual February 2023 MHM-97442 Figure 5-26: TTL signal These parameters are grayed out if VR has been selected for parameter Sensortyp. Upper gap limit and Lower gap limit These parameters serve the supervision of the signal level to indicate a warning message when the distance between sensor and trigger wheel has changed in an inadmissible way.
  • Page 99 Operating Manual Configuration MHM-97442 February 2023 Figure 5-27: Example signal form with trigger thresholds and limit values for sensor type PR 6423 Signal range: -2 to -18 V Distance sensor - tooth: approximately 0.90 - 1.0 mm (sensor PR 6423) Adjusted to approximately -5.5 V over tooth A.
  • Page 100 Configuration Operating Manual February 2023 MHM-97442 Figure 5-28: Basic Settings Group Measuring functions Safety function (Trip) Define here the safety function of the system. When the condition for the selected safety function is met, the trip will be released. The trip signal is routed to the relay logic on the backplane.
  • Page 101 Operating Manual Configuration MHM-97442 February 2023 • 1x per revolution The monitor measures the speed once per revolution. This mode is recommended when variations in the measurements are expected, and when acceleration measurements shall be performed. See Table 5-2 for the maximum measurement time depending on the selected measuring mode.
  • Page 102 Configuration Operating Manual February 2023 MHM-97442 Place a checkmark in the check box to activate offset tracking. Note With safety function Speed + Direction or Direction of rotation Offset tracking cannot be used. Offset tracking serves the adaptation of the trigger thresholds depending on changes of the DC signal component caused by radial shaft displacements, for example.
  • Page 103 Acceleration and digital outputs assigned to function … Acceleration limit value …. For stable measurements Emerson recommends using a time constant >0.1 seconds and the measuring mode 1 x per revolution. If this parameter is set to "0", the indication is not smoothed.
  • Page 104 Pulse (see Socket Pulse). Emerson recommends to check the pulse width ratio at nominal speed and to adjust it if necessary as the pulse width at nominal speed is crucial for the noise pulse filter.
  • Page 105 Operating Manual Configuration MHM-97442 February 2023 Figure 5-30: Diagram symmetry 50% - TTL signal A. Pulse width = Pulse pause (B-A) B. Pulse width + Pulse pause Figure 5-31: Diagram symmetry 20% - TTL signal A. Period portion <50% B. Pulse width + Pulse pause The symmetry value always based on the period portion <50%.
  • Page 106 Configuration Operating Manual February 2023 MHM-97442 Note Set the symmetry to 1% if the calculated symmetry is less than 10%. The noise pulse filter has the widest passband at this setting. This is valid, independently if the symmetry has been calculated by means of the TTL signal or based on the trigger wheel dimensions. Set the symmetry to the same value for all three channels.
  • Page 107 Operating Manual Configuration MHM-97442 February 2023 Figure 5-35: Trigger Wheel with chamfered flanks - symmetry 10% A. Tooth width < Gap width (B-A) B. Tooth width + Gap width Figure 5-36: Trigger Wheel with chamfered flanks - symmetry 30% A. Gap width < Tooth width (B-A) B.
  • Page 108 Configuration Operating Manual February 2023 MHM-97442 Analog Output 1 and Analog Output 2 Figure 5-37: Analog output Characteristic Use this list field to assign the current output to a characteristic value. Select from the following options: • The current output is not used and is deactivated. •...
  • Page 109 Operating Manual Configuration MHM-97442 February 2023 Current suppression Place a checkmark in this box to activate the current suppression for the current output ranges 4 to 20 mA and 20 to 4 mA. When current suppression is activated, the current output is switched to 0 mA if Channel OK is switched off.
  • Page 110 Configuration Operating Manual February 2023 MHM-97442 Figure 5-39: Diagram current output smoothing or Maximum acceleration Maximum speed Depending on the setting of parameter Characteristic, define here the end value for the asymmetric range for the scaling of the current output on Speed (see Figure 5-40) or for the symmetric range for the scaling of the current output on Acceleration (see...
  • Page 111 Operating Manual Configuration MHM-97442 February 2023 Figure 5-41: Diagram current output scaling - acceleration Minimum speed Define here the start point of the range for scaling the current output (see Figure 5-40). The current output is proportional to the speed. Break point Place a checkmark in this box to activate the break point function.
  • Page 112 Configuration Operating Manual February 2023 MHM-97442 Figure 5-42: Break point example Digital Outputs Use this tab to configure the 6 function outputs, output Channel OK, and the safety output. Figure 5-43: Digital Outputs Group Safety output Trip limit value Enter here the limit value for the overspeed trip. This value must be at least 67% of the entered maximal speed (Basic Settings →...
  • Page 113 Operating Manual Configuration MHM-97442 February 2023 when the speed value of the channel reaches the limit value or if Channel OK is switched off. Trip limit value = Maximum speed * 0.67 Example with a maximum speed = 4000 rpm: Trip limit value = 4000 rpm * 0.67 = 2680 rpm In this example, the trip limit must not be lower than 2680 rpm and must not exceed 4000...
  • Page 114 Configuration Operating Manual February 2023 MHM-97442 The function output remains in the initial state and is not switched. Define the condition of the initial state with parameter Mode. >= Limit Value The characteristic of the switch is increasing. The condition for the output is met when the speed of the channel reaches the defined limit value Value 1.
  • Page 115 Operating Manual Configuration MHM-97442 February 2023 rotational direction is activated (Basic Settings → Reset of rotational direction (extern), a further option is to use the digital input Reset latch for the reset. Sensor error The indication of the check of the connected sensor. The output is set when an error has been detected at the connected sensor.
  • Page 116 Configuration Operating Manual February 2023 MHM-97442 Define with limit value Value 1 and limit value Value 2 a limit window. The function output is set when the speed value of this channel is within the window. See Figure 5-45 Figure 5-45: Diagram limit monitoring Inside window A.
  • Page 117 Operating Manual Configuration MHM-97442 February 2023 If the acceleration exceeds the limit value plus hysteresis again, the alarm output is reset. Enter the hysteresis in input field Hysteresis. >= Acceleration limit value + Latch The characteristic of the switch is increasing. The condition for the output is met when the acceleration reaches the defined limit value Value 1.
  • Page 118 Configuration Operating Manual February 2023 MHM-97442 Enter here the limit value for functions with limit monitoring. The unit of the limit value for the function output is in [rpm] for the speed and in [rpm/s] for acceleration. Parameter Value 1 must always be smaller than Value 2. Hysteresis Enter here the hysteresis.
  • Page 119 Operating Manual Configuration MHM-97442 February 2023 Figure 5-47: Test and Test value 2 Test value 1 Enter here the two test values. Set, for example, Test value 1 to trip limit +15 rpm and Test value 2 to trip limit -15 rpm. Activate and Deactivate Click Activate or Deactivate beside the input fields of the test values to activate or...
  • Page 120 Configuration Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 121: Chapter 6 Visualization

    Operating Manual Visualization MHM-97442 February 2023 Visualization Display After switching on the power supply or after plugging the monitor into a rack with a connected power supply, the display shows the text "A6370" and then for about 2 seconds the firmware version of the monitor such as: V 2.00 After this, the display shows START-UP and then the speed value RPM XXXXX.
  • Page 122: Leds On The Monitor Front

    Visualization Operating Manual February 2023 MHM-97442 Table 6-1: Error, warning, and status messages (continued) Message Meaning SENSOR Is shown when the sensor voltage at the input exceeds the configured sensor voltage limits. See Upper sensor voltage limit and Lower sensor voltage limit).
  • Page 123: View Monitor-Status

    Operating Manual Visualization MHM-97442 February 2023 The operating principle (Open-circuit mode or Closed-circuit mode) of the outputs can individually be set. View Monitor-Status This status view requires an online connection between monitor and computer. Click the respective monitor in the rack overview to open the status view. The online view shows the front of the module including the display with the measuring value and with the LEDs which are an exact copy of the LEDs on the front of the monitor.
  • Page 124 Visualization Operating Manual February 2023 MHM-97442 the safe state (trip limit exceeded) is indicated with a red LED. If the trip condition is not met, the LED is switched off. Test values Active test values are indicated with a yellow LED. Click Details to open Service-Status to get further information on the test values.
  • Page 125: Trending

    Operating Manual Visualization MHM-97442 February 2023 Reboots This counter increases after every monitor restart, initiated by the software. With an existing online connection to the monitor, use command Monitor → Reset start counter to reset the counter Reboots. A corresponding access authorization is required. Cold starts This counter is increased after every power-on.
  • Page 126: Service-Values

    Visualization Operating Manual February 2023 MHM-97442 6.2.3 Service-Values This tab contains several voltage levels, currents, and further parameters which may help, for example, to narrow down the cause in case of disturbances. See Figure 6-4. Figure 6-4: Service-Values Group Sensor Voltage This field displays the current measuring signal of the connected sensor.
  • Page 127 Operating Manual Visualization MHM-97442 February 2023 this monitor. Voltage Analog 2 is assigned to the third monitor (Monitor C) and Analog 3 to the first monitor (monitor A). Figure 6-5: Example - monitor assignment to the analog voltages A. Monitor A B.
  • Page 128 Visualization Operating Manual February 2023 MHM-97442 Group Trigger threshold The trigger thresholds currently adjusted are displayed here. These values may vary depending on the distance between sensor and trigger wheel if function Basic Settings → Offset tracking has been activated. Group Analog outputs The set value of both current outputs is shown here —...
  • Page 129: Service-Status

    Operating Manual Visualization MHM-97442 February 2023 Group Miscellaneous Acceleration The current acceleration value is shown here. Measured speed This field displays the unaffected speed value. An activated test value, for example, affects the measured speed values. 6.2.4 Service-Status Servicestatus indicates warnings, fault functions, and feedbacks with graphical LEDs. Figure 6-6: Service-Status Group Modes This graphical LEDs indicate the state of the functions Offset tracking (see...
  • Page 130 Visualization Operating Manual February 2023 MHM-97442 Table 6-2: Meaning and possible reasons for fault functions Warning / Fault Meaning Reason Gap warning The sensor voltage has exceeded the Distance trigger wheel sensor has upper gap limit or has fallen below the changed: lower gap limit.
  • Page 131 Operating Manual Visualization MHM-97442 February 2023 Table 6-3: Meaning of the feedbacks Feedback Meaning Digital 1 The green flashing LED shows the change of the logical state (Low or High) of the TTL signal for the monitor just being in communication with the computer. Digital 2 Logical state of the next monitor clockwise.
  • Page 132 Visualization Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 133: Functions And Applications

    Operating Manual Functions and applications MHM-97442 February 2023 Functions and applications Beside the AMS 6300 SIS function descriptions, this chapter also contains application descriptions and instructions for fault finding. Related information Technical support Speed measurement For the determination of the speed, the AMS 6300 SIS processes the sensor signal with the configured trigger thresholds to generate the 0 to +5 V TTL signal.
  • Page 134: Detection Of Rotational Direction At Gear Wheels

    Functions and applications Operating Manual February 2023 MHM-97442 wheels Detection of rotational direction in safety function Protection against wrong direction of rotation. Note Detection of rotational direction is not possible when using VR sensors. Related information Technical support 7.2.1 Detection of rotational direction at gear wheels The detection of rotational direction at gear wheels is no safety function of the AMS 6300 SIS.
  • Page 135: Definition Of Rotational Direction

    Operating Manual Functions and applications MHM-97442 February 2023 Figure 7-1: Channel assignment for rotational direction A. Safety B. Availability When the detected rotational direction is opposite to the normal rotational direction, the trip for the monitor is released. The output of the rotational direction is made through the monitor status indication and through a function output with a corresponding configuration.
  • Page 136: Acceleration Measurement

    Functions and applications Operating Manual February 2023 MHM-97442 Related information Technical support Acceleration measurement The AMS 6300 SIS measures the shaft acceleration in [rpm/s]. The measured acceleration can be checked on limit exceeding (see Group Parameter for output functions). Figure 7-2 below shows a diagram of the acceleration measurement.
  • Page 137: Automatic Trigger Threshold Detection

    Operating Manual Functions and applications MHM-97442 February 2023 Consider that the signal level at this socket corresponds to the absolute value of the original signal multiplied with factor 0.15. Divide the signal at this socket by 0.15 to get the original signal at the sensor output: / 0.15 Signal Sens.
  • Page 138: System Supervision Functions

    Functions and applications Operating Manual February 2023 MHM-97442 the configuration parameters. To activate the new trigger thresholds for the measurement, load the configuration parameters into the monitor. System supervision functions The AMS 6300 SIS is provided with several internal supervision functions: •...
  • Page 139: Pulse Comparison

    Operating Manual Functions and applications MHM-97442 February 2023 Figure 7-4: Comparison functions (Analog comparison / Pulse comparison) A. Analog voltage / Digital signal A B. Analog voltage / Digital signal B C. Analog voltage / Digital signal C 7.5.2 Pulse comparison The pulse comparison function of the AMS 6300 SIS serves the supervision of the sensor positions at the machine.
  • Page 140 Functions and applications Operating Manual February 2023 MHM-97442 • Input pulse comparison The advanced pulse comparison functions serve the better fault recognition. Activate the advanced pulse comparison functions with parameter Basic Settings → Advanced pulse comparison. See Visualization for the indication of pulse errors. Pulse comparison "Pulse wheel dynamic"...
  • Page 141: Channel Ok Channel Supervision

    Operating Manual Functions and applications MHM-97442 February 2023 Input pulse comparison The function "Input pulse comparison" compares the input pulses of all three monitors. If more than five pulses, compared with the other two monitors, are missing in the TTL signal , the monitor indicates the "Input pulse comparison"...
  • Page 142: Standstill Indication

    Functions and applications Operating Manual February 2023 MHM-97442 7.5.4 Standstill indication The monitor has two types of standstill indication: the monitor internal indication and an external indication through a digital output. The standstill indication is also available through the optional PROFIBUS interface, if a digital output is configured for the standstill indication.
  • Page 143 Operating Manual Functions and applications MHM-97442 February 2023 Figure 7-6: Proof test - start The test function checks whether all conditions for execution of the proof test are met. With a successful check, the button Start is enabled otherwise it is grayed out. 2.
  • Page 144 Functions and applications Operating Manual February 2023 MHM-97442 Figure 7-8: Report of a successful proof test Test values The test values serve the check of monitor functions, for example, during installation and commissioning when measuring signals from the machine are not yet available. After the activation, the entered constant test value is checked instead of the measuring value when the measuring value is smaller than the test value.
  • Page 145 Operating Manual Functions and applications MHM-97442 February 2023 Activation of test values CAUTION The activated test values in the AMS 6300 SIS replace the measuring values. To avoid an unintentional trip during the ongoing operation, ensure that at any one time not more than one monitor has activated Test value ≥...
  • Page 146 Functions and applications Operating Manual February 2023 MHM-97442 Simulation of speed and rotational direction The function of the AMS 6300 SIS can also be checked by the simulation of the sensor signals. For this, you need a function generator, suitable to generate signal levels according to the requirements of the sensor input.
  • Page 147 Operating Manual Functions and applications MHM-97442 February 2023 Figure 7-9: Function generator - example eddy current sensor signal A. Function generator B. 9-pole Sub-D terminal block monitor A, B, and C (analog signals) C. AMS 6300 SIS D. Sensor supply E.
  • Page 148 Functions and applications Operating Manual February 2023 MHM-97442 Figure 7-10: Function generator - example Hall effect sensor signal A. Function generator B. 9-pole Sub-D terminal block monitor A, B, and C (analog signals) C. AMS 6300 SIS D. Sensor supply E.
  • Page 149: Remedy Of Faults

    Before contacting a service field office, click Monitor → Service report → Create to generate a report which contains monitor status and monitor configuration. Pass it on to an Emerson service center to simplify fault finding. For service center addresses see the introduction of this manual.
  • Page 150 Functions and applications Operating Manual February 2023 MHM-97442 For support see Monitor-Status view for status messages and measuring values (View Monitor-Status). Analog comparison indicates Analog error The indications Analog 1, Analog 2, and Analog 3 on tab MonitorStatus → ServiceValues show the current analog voltages of the three monitors.
  • Page 151: Replace A Monitor

    Operating Manual Functions and applications MHM-97442 February 2023 • Check whether the ground references of the input circuits are available and connected correctly. Since the measuring inputs of the AMS 6300 SIS are symmetrical and floating, the missing reference may result into instable and fluctuating measurements (see Sensor connection).
  • Page 152 Functions and applications Operating Manual February 2023 MHM-97442 Do not close AMS 6300 Configuration. 2. Where appropriate, unplug the PROFIBUS cable. 3. Unscrew the mounting screws, unplug the configuration cable and remove the monitor from the slot. 4. Set the jumper for the RS 485 interface of the new monitor in accordance to the jumper settings of the old monitor.
  • Page 153: Chapter 8 Technical Data

    Operating Manual Technical data MHM-97442 February 2023 Technical data Only specifications with indicated tolerances or limit values are binding. Data without tolerances or without error limits are informative data and not guaranteed. Technical modifications, especially of the software, are subject to changes without notice. If not specified otherwise, all data are referred to an environmental temperature of 20°C.
  • Page 154: Pulse Outputs

    Technical data Operating Manual February 2023 MHM-97442 Sensor signal output SMB socket Sens. Permissible voltage range 0 to 3.9 V Signal: Absolute value of sensor input signal multiplied with factor 0.15 ±3%, reference system ground Output Impedance Typically 10 kΩ No output signal if a VR sensor is connected.
  • Page 155: Function Outputs And Channel Ok Output

    Operating Manual Technical data MHM-97442 February 2023 Binary inputs Number 4 (Test value 1, Test value 2, Enable Test value, Reset Latch) Signal level "Low" 0 to 5 V Signal level "High" 13 V to 31.2 V Input resistance Typically 6.8 kΩ Function outputs and Channel OK output Binary outputs Electrically isolated and short circuit proof...
  • Page 156: Communication Interfaces

    Technical data Operating Manual February 2023 MHM-97442 Communication interfaces USB 2.0 Interface Configuration interface on the monitor front plate Socket Type B RS 485 Interface Bus interface for the communication with external devices Maximum number of devices Baud rate 38400, 57600, or 115200 Baud Profibus DP-V0 interface Optional interface for the communication with external systems (only monitors A6370D/DP), 9- pole Sub-D socket on front plate.
  • Page 157: Environmental Conditions And Mechanical Design

    Operating Manual Technical data MHM-97442 February 2023 Response time Detection of rotational direction < 3 * Period of input signal + 8 ms Typical reaction time Mode of measurement 1x per rotation: 35 ms at 3000 Mode of measurement Automatic: 12.5 ms at 3000 8.10 Environmental conditions and mechanical design...
  • Page 158 Technical data Operating Manual February 2023 MHM-97442 Dimensions Backplane A6371/10 W 211 mm x H 130 mm x D 58 mm SubD Interface A6380 W 34.7 mm x H 65.5 mm x D 45.1 mm SubD Interface A6381 W 57.4 mm x H 69 mm x D 62 mm 19“...
  • Page 159: Diagrams And Certificates

    Operating Manual Diagrams and certificates MHM-97442 February 2023 Diagrams and certificates Connection diagrams Figure 9-1: Connection diagram analog signals The connection of the analog inputs and outputs is identical for each monitor. Thus, only the input and output connection for one terminal is shown. For detailed sensor connection Figure 9-5, Figure...
  • Page 160 Diagrams and certificates Operating Manual February 2023 MHM-97442 Figure 9-2: Connection diagram digital signals The connection of the digital inputs and outputs is identical for each monitor. Thus, only the input and output connection for one terminal is shown. MHM-97442, Rev. 2.06...
  • Page 161 Operating Manual Diagrams and certificates MHM-97442 February 2023 Figure 9-3: Connection example power supply and trip-relay, A6371/00 * Both 2oo3 trip outputs Trip 1 and Trip 2 must be connected in series to be connected to the actuator. The make contact of the trip relays is closed if no trip is present. Both make contacts are opened in case of a trip or supply voltage failure.
  • Page 162 Diagrams and certificates Operating Manual February 2023 MHM-97442 Figure 9-4: Connection example power supply and trip-relay, A6371/10 * For the safety path at use in safety related systems only the make contacts of the trip relays must be used. The make contact of the trip relays is closed if no trip is present. The make contacts are opened in case of a trip or supply voltage failure.
  • Page 163 Operating Manual Diagrams and certificates MHM-97442 February 2023 Figure 9-5: Connection of eddy current measuring chains PR 642x + CON 0x1 A. Eddy current sensor PR 642x B. Signal converter CON 0x1 C. Cable LIYCY-CY 2x2x0.25mm (maximum 400 m) D. 9-pole sub-D terminal block monitor A, B, and C (analog signals) E.
  • Page 164 Diagrams and certificates Operating Manual February 2023 MHM-97442 Figure 9-6: Connection example with PR 9376 Hall-effect sensor A. Hall effect sensor PR 9376 B. Terminal box C. Cable LIYCY-CY 2x2x0.25mm (maximum 400 m) D. 9-pole sub-D terminal block monitor A, B, and C (analog signals) E.
  • Page 165 Operating Manual Diagrams and certificates MHM-97442 February 2023 Figure 9-7: Connection example with variable reluctance sensor A. Variable reluctance sensor (VR sensor) B. Terminal box C. Cable LIYCY-CY 2x2x0.25mm (maximum 400 m) D. 9-pole sub-D terminal block monitor A, B, and C (analog signals) E.
  • Page 166: Certificates

    Diagrams and certificates Operating Manual February 2023 MHM-97442 Certificates MHM-97442, Rev. 2.06...
  • Page 167 Operating Manual Diagrams and certificates MHM-97442 February 2023 MHM-97442, Rev. 2.06...
  • Page 168 Diagrams and certificates Operating Manual February 2023 MHM-97442 MHM-97442, Rev. 2.06...
  • Page 169 Operating Manual MHM-97442 February 2023 MHM-97442, Rev. 2.06...
  • Page 170 The Emerson logo is a trademark and service mark of Emerson Electric Co. The AMS logo is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
