1. Product summary

This document is an operation manual for a SI (Serial Interface) Unit which controls EtherCAT
vacuum (ejector) manifold (ZKJ series). EtherCAT
licensed by Beckhoff Automation GmbH, Germany. The SI Unit controls a vacuum manifold which has 16
supply valves max., 16 release valves max. and 16 pressure sensors max..
No.
1 Communication connector 1 (ECAT IN)
2 Communication connector 2 (ECAT OUT)
3 Power connector 1 (PWR IN)
4 Power connector 2 (PWR OUT)
5 FE terminal
6 LED display
7 Valve manifold connection
8 Mounting hole
9 Product information label
Accessories
No. Item
1 Seal cap
For further details on mounting, installation, etc. of the vacuum manifold, refer to the manual for vacuum
manifold (ZKJ series).
Caution
The SI Unit must be connected to the vacuum manifold before it is powered ON.
Item
2 pcs. M8 seal cap for unused communication and power connectors.
Refer to Section

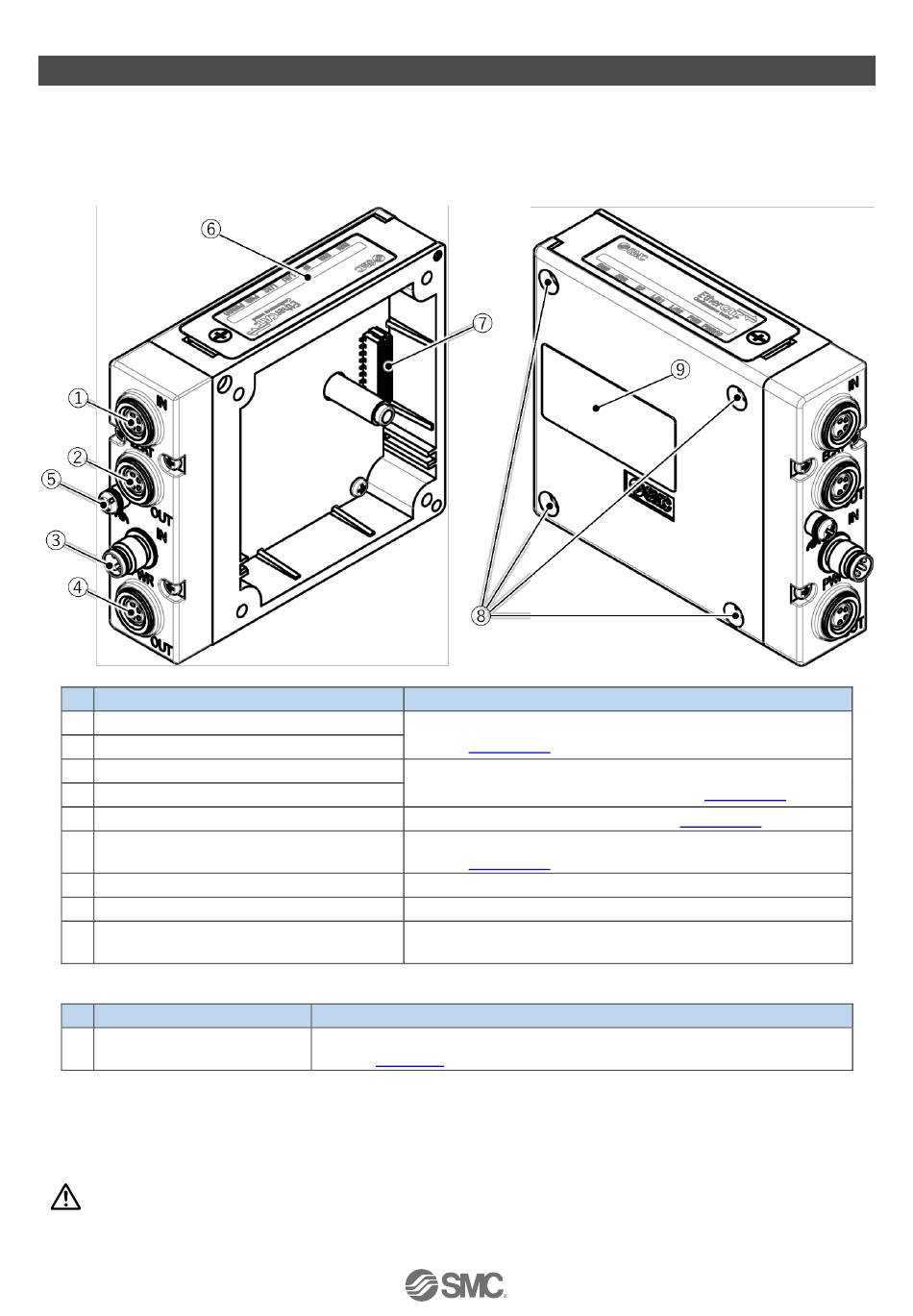

Fig 1-1. The SI Unit structure
is registered trademark and patented technology,
®
EtherCAT connection. (M8 4-pin socket, A-coded)
®
Refer to Section 2.1.
Power supply for logic/input and output.
(M8 4-pin plug/socket, A-coded) Refer to
Functional earth. (M3 screw) Refer to
LED display to indicate the status of the SI Unit.
Refer to Section 7.1.
Connection for the vacuum manifold.
Mounting hole for connection to the vacuum manifold.
Information label to indicate the SI Unit details such as
software version or serial number etc..
Description
9.
-10-
Description
Section
Section 2.3.
No.DOC1048575-1
