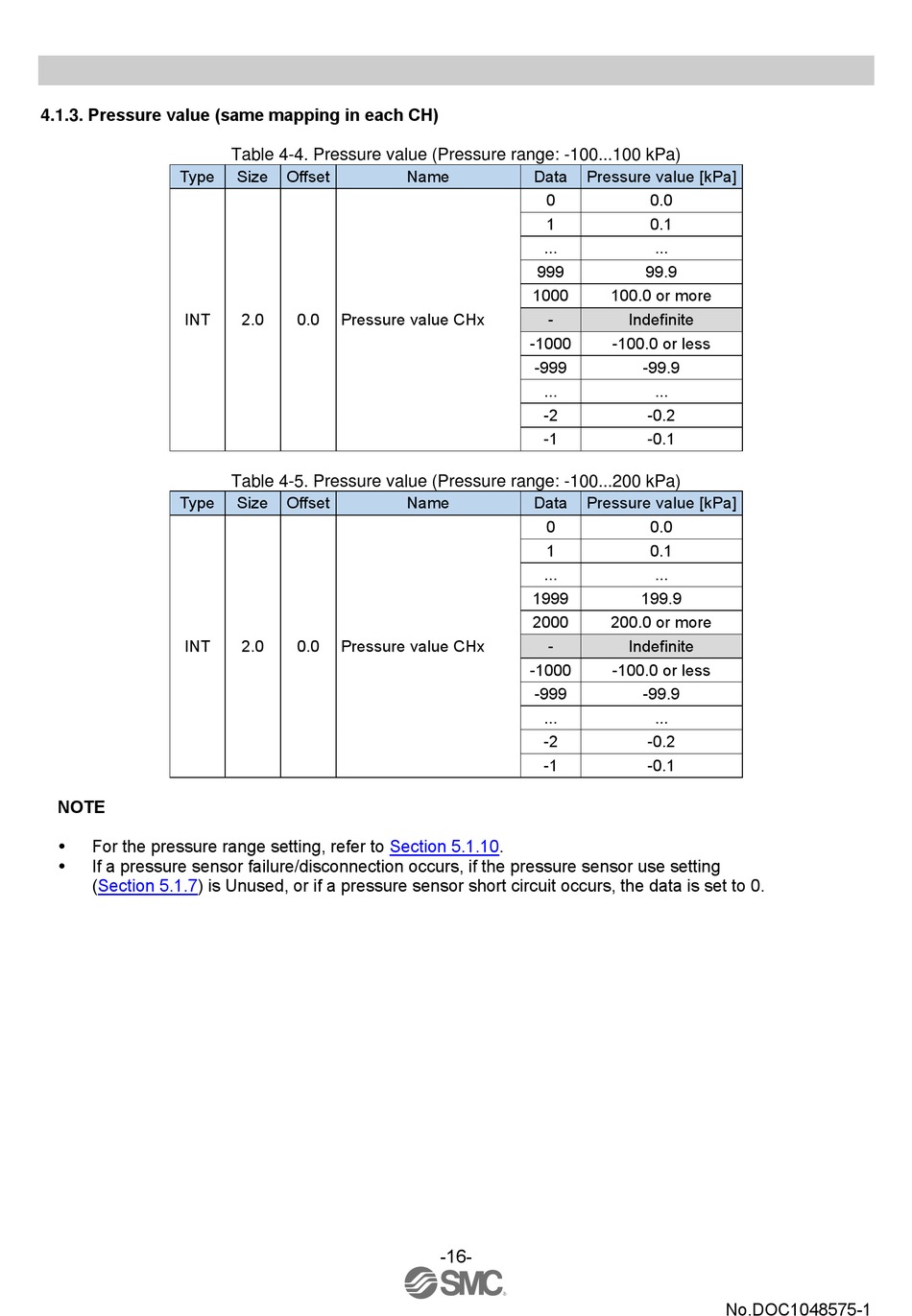

4.1.3. Pressure value (same mapping in each CH)
Type
INT
Type
INT
NOTE
 For the pressure range setting, refer to
 If a pressure sensor failure/disconnection occurs, if the pressure sensor use setting
(Section 5.1.7) is Unused, or if a pressure sensor short circuit occurs, the data is set to 0.
Table 4-4. Pressure value (Pressure range: -100...100 kPa)
Size Offset
2.0 0.0 Pressure value CHx
Table 4-5. Pressure value (Pressure range: -100...200 kPa)
Size Offset
2.0 0.0 Pressure value CHx
Section
Name Data
0
1
...
999
1000
-
-1000
-999
...
-2
-1
Name Data
0
1
...
1999
2000
-
-1000
-999
...
-2
-1
5.1.10.
-16-
Pressure value [kPa]
0.0
0.1
...
99.9
100.0 or more
Indefinite
-100.0 or less
-99.9
...
-0.2
-0.1
Pressure value [kPa]
0.0
0.1
...
199.9
200.0 or more
Indefinite
-100.0 or less
-99.9
...
-0.2
-0.1
No.DOC1048575-1
