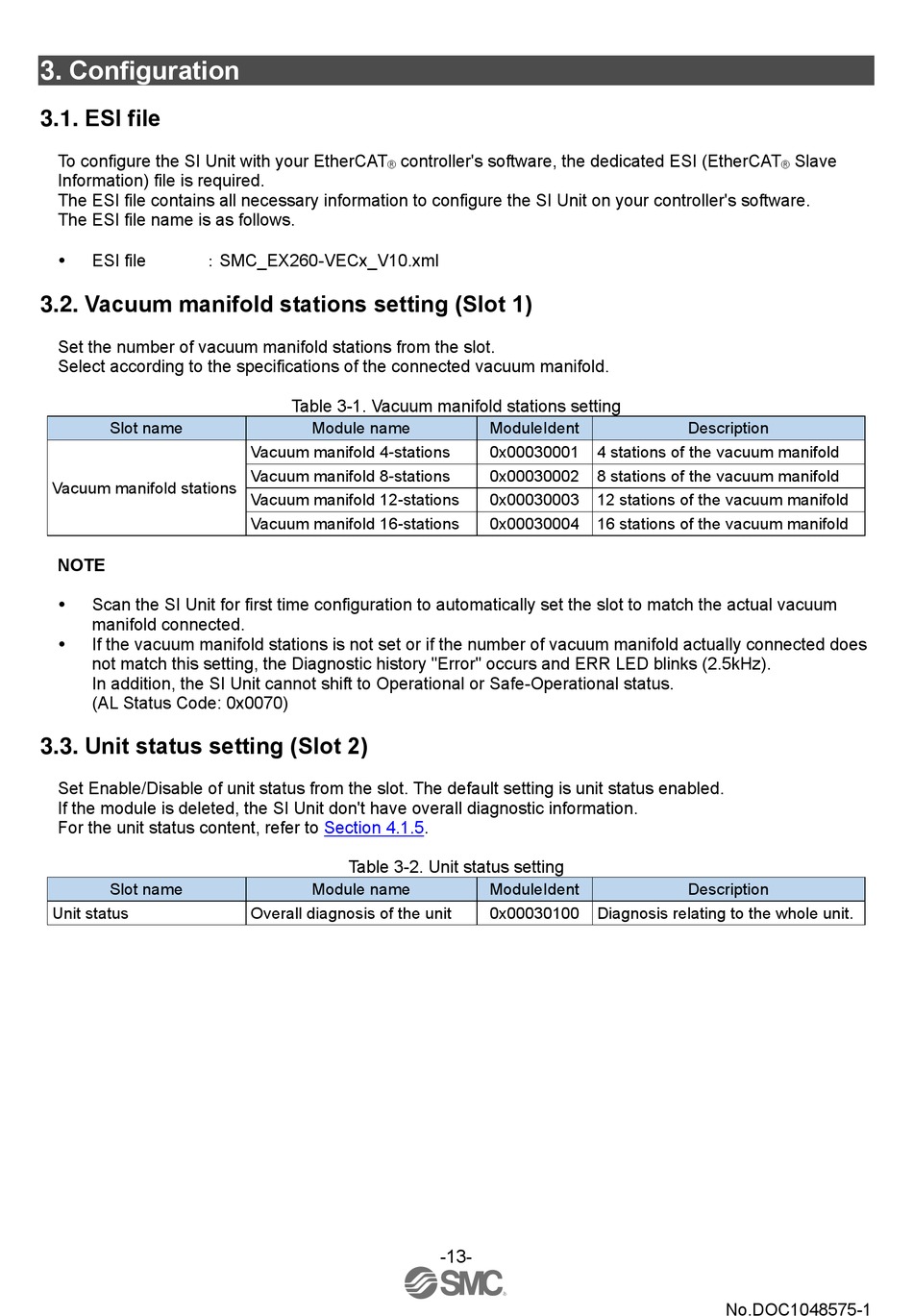

3. Configuration

3.1. ESI file

To configure the SI Unit with your EtherCAT
Information) file is required.
The ESI file contains all necessary information to configure the SI Unit on your controller's software.
The ESI file name is as follows.
 ESI file
：SMC_EX260-VECx_V10.xml
3.2. Vacuum manifold stations setting (Slot 1)
Set the number of vacuum manifold stations from the slot.
Select according to the specifications of the connected vacuum manifold.
Slot name
Vacuum manifold stations
NOTE
 Scan the SI Unit for first time configuration to automatically set the slot to match the actual vacuum
manifold connected.
 If the vacuum manifold stations is not set or if the number of vacuum manifold actually connected does
not match this setting, the Diagnostic history "Error" occurs and ERR LED blinks (2.5kHz).
In addition, the SI Unit cannot shift to Operational or Safe-Operational status.
(AL Status Code: 0x0070)
3.3. Unit status setting (Slot 2)
Set Enable/Disable of unit status from the slot. The default setting is unit status enabled.
If the module is deleted, the SI Unit don't have overall diagnostic information.
For the unit status content, refer to
Slot name
Unit status
controller's software, the dedicated ESI (EtherCAT
®
Table 3-1. Vacuum manifold stations setting
Module name
Vacuum manifold 4-stations
Vacuum manifold 8-stations
Vacuum manifold 12-stations
Vacuum manifold 16-stations
Section 4.1.5.
Table 3-2. Unit status setting
Module name
Overall diagnosis of the unit
ModuleIdent
0x00030001 4 stations of the vacuum manifold
0x00030002 8 stations of the vacuum manifold
0x00030003 12 stations of the vacuum manifold
0x00030004 16 stations of the vacuum manifold
ModuleIdent
0x00030100 Diagnosis relating to the whole unit.
-13-
Slave
®
Description
Description
No.DOC1048575-1
