1. Product summary

1.1 Features

SI (serial interface) unit is an EtherNet/IP™ device for pneumatic solenoid valves manufactured by
SMC. The SI unit can control a 64 (2 solenoid valves per station) stations valve manifold and has the
following characteristics.
・Protection rating of enclosure IP67
・Two M12 connectors (4-pin socket, D-code) for EtherNet/IP™ communication
・M12 connector (4-pin plug, A-code) for power supply
・Maximum number of valves/points that can be controlled 64 valves/128 points
・QuickConnect™ function
・DLR (Device Level Ring) function
・Web server function
・Internal insulation structure for two power supply voltages
・Integrated diagnostic and short circuit protection function
Applicable valve manifold
・64 stations valve manifold series

1.2 Summary of Product elements

No. Item
Communication connector
1
(BUS OUT)
Communication connector
2
(BUS IN)
Power connector
3
(PWR)
4 FE terminal
5 Connector
6 LED display
7 Mounting holes
8 Production information label

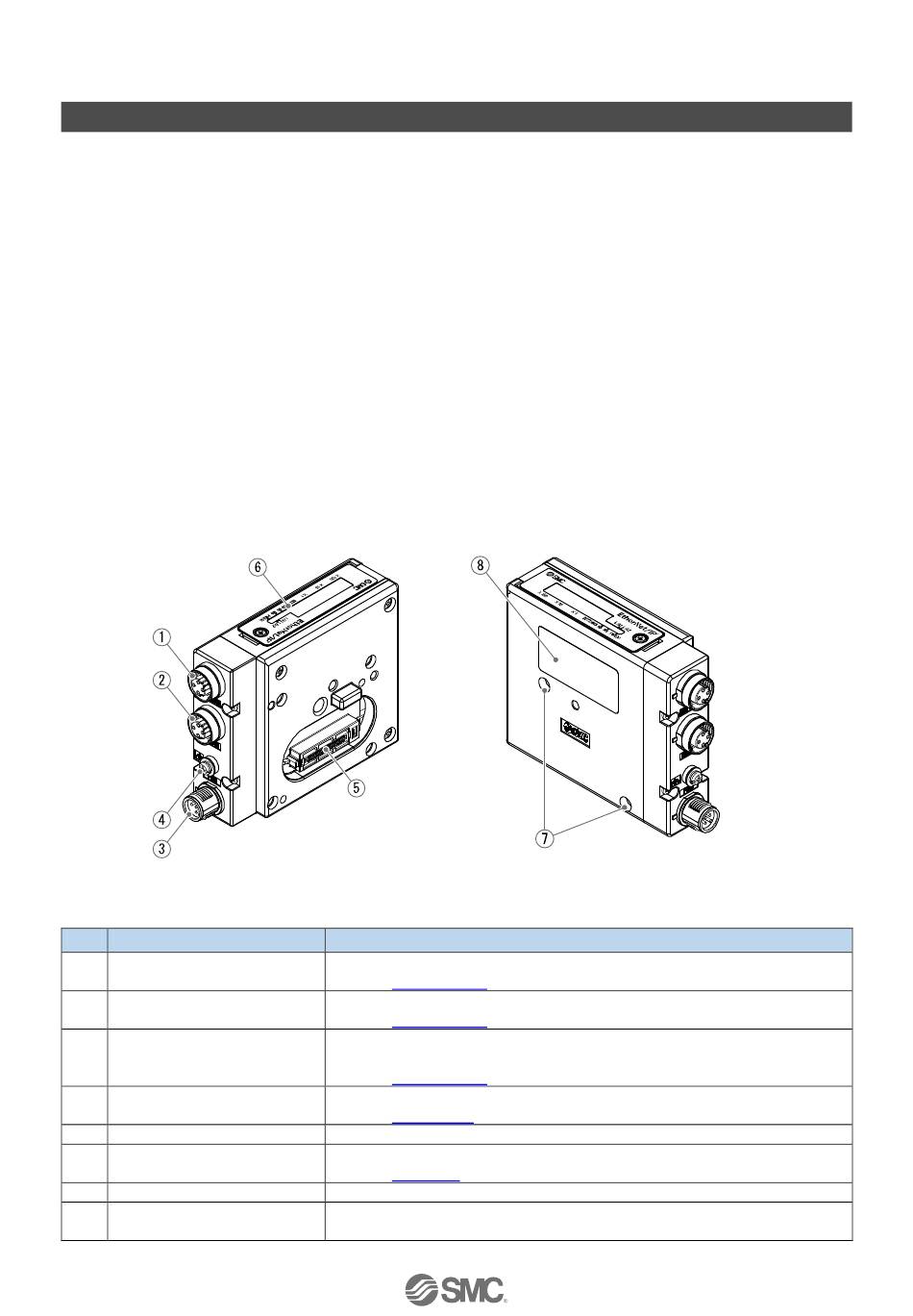

Fig.1 SI Unit structure
EtherNet/IP connection port 2. (M12 4 pin socket D-coded)
TM
Refer to Section 2.2.1.
EtherNet/IP connection port 1. (M12 4 pin socket D-coded)
TM
Refer to Section 2.2.1.
Power supply for logic/sensors and valves voltage.
(M12 4 pin plug A-coded)
Refer to Section 2.2.2.
Functional earth. (M3 screw)
Refer to Section 2.3.
Communication connection to valve manifold.
LED display to indicate the status of the SI Unit.
Refer to Section 7.
Connects to vacuum manifold.
Information label to indicate an information of the SI Unit such as
MAC address or serial number etc..
-11-
Description
