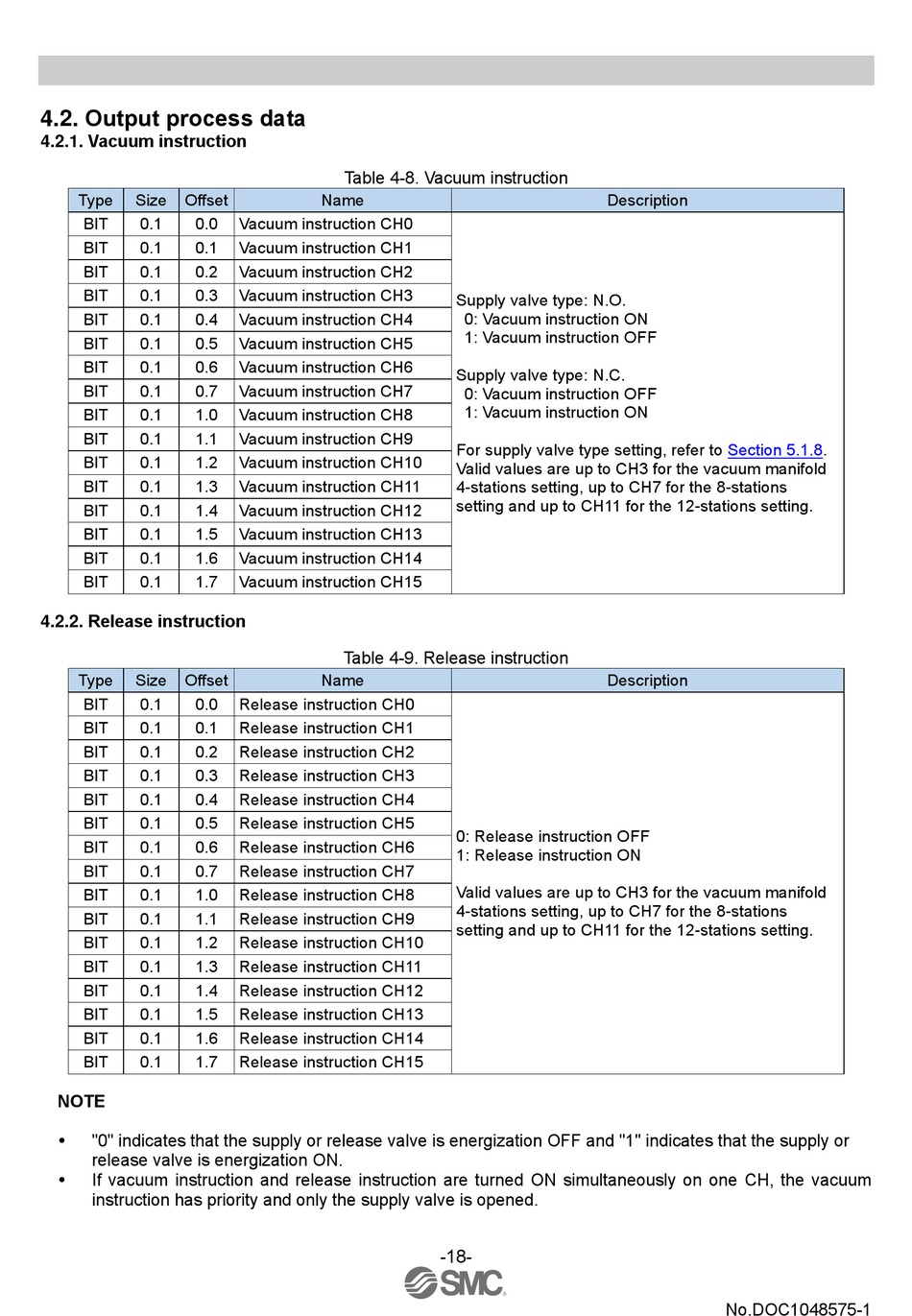

4.2. Output process data

4.2.1. Vacuum instruction
Type Size Offset
BIT 0.1 0.0
BIT 0.1 0.1
BIT 0.1 0.2
BIT 0.1 0.3
BIT 0.1 0.4
BIT 0.1 0.5
BIT 0.1 0.6
BIT 0.1 0.7
BIT 0.1 1.0
BIT 0.1 1.1
BIT 0.1 1.2
BIT 0.1 1.3
BIT 0.1 1.4
BIT 0.1 1.5
BIT 0.1 1.6
BIT 0.1 1.7
4.2.2. Release instruction
Type Size Offset
BIT 0.1 0.0
BIT 0.1 0.1
BIT 0.1 0.2
BIT 0.1 0.3
BIT 0.1 0.4
BIT 0.1 0.5
BIT 0.1 0.6
BIT 0.1 0.7
BIT 0.1 1.0
BIT 0.1 1.1
BIT 0.1 1.2
BIT 0.1 1.3
BIT 0.1 1.4
BIT 0.1 1.5
BIT 0.1 1.6
BIT 0.1 1.7
NOTE
 "0" indicates that the supply or release valve is energization OFF and "1" indicates that the supply or
release valve is energization ON.
 If vacuum instruction and release instruction are turned ON simultaneously on one CH, the vacuum
instruction has priority and only the supply valve is opened.
Table 4-8. Vacuum instruction
Name
Vacuum instruction CH0
Vacuum instruction CH1
Vacuum instruction CH2
Vacuum instruction CH3
Vacuum instruction CH4
Vacuum instruction CH5
Vacuum instruction CH6
Vacuum instruction CH7
Vacuum instruction CH8
Vacuum instruction CH9
Vacuum instruction CH10
Vacuum instruction CH11
Vacuum instruction CH12
Vacuum instruction CH13
Vacuum instruction CH14
Vacuum instruction CH15
Table 4-9. Release instruction
Name
Release instruction CH0
Release instruction CH1
Release instruction CH2
Release instruction CH3
Release instruction CH4
Release instruction CH5
Release instruction CH6
Release instruction CH7
Release instruction CH8
Release instruction CH9
Release instruction CH10
Release instruction CH11
Release instruction CH12
Release instruction CH13
Release instruction CH14
Release instruction CH15
Description
Supply valve type: N.O.
0: Vacuum instruction ON
1: Vacuum instruction OFF
Supply valve type: N.C.
0: Vacuum instruction OFF
1: Vacuum instruction ON
For supply valve type setting, refer to
Valid values are up to CH3 for the vacuum manifold
4-stations setting, up to CH7 for the 8-stations
setting and up to CH11 for the 12-stations setting.
Description
0: Release instruction OFF
1: Release instruction ON
Valid values are up to CH3 for the vacuum manifold
4-stations setting, up to CH7 for the 8-stations
setting and up to CH11 for the 12-stations setting.
-18-
Section 5.1.8.
