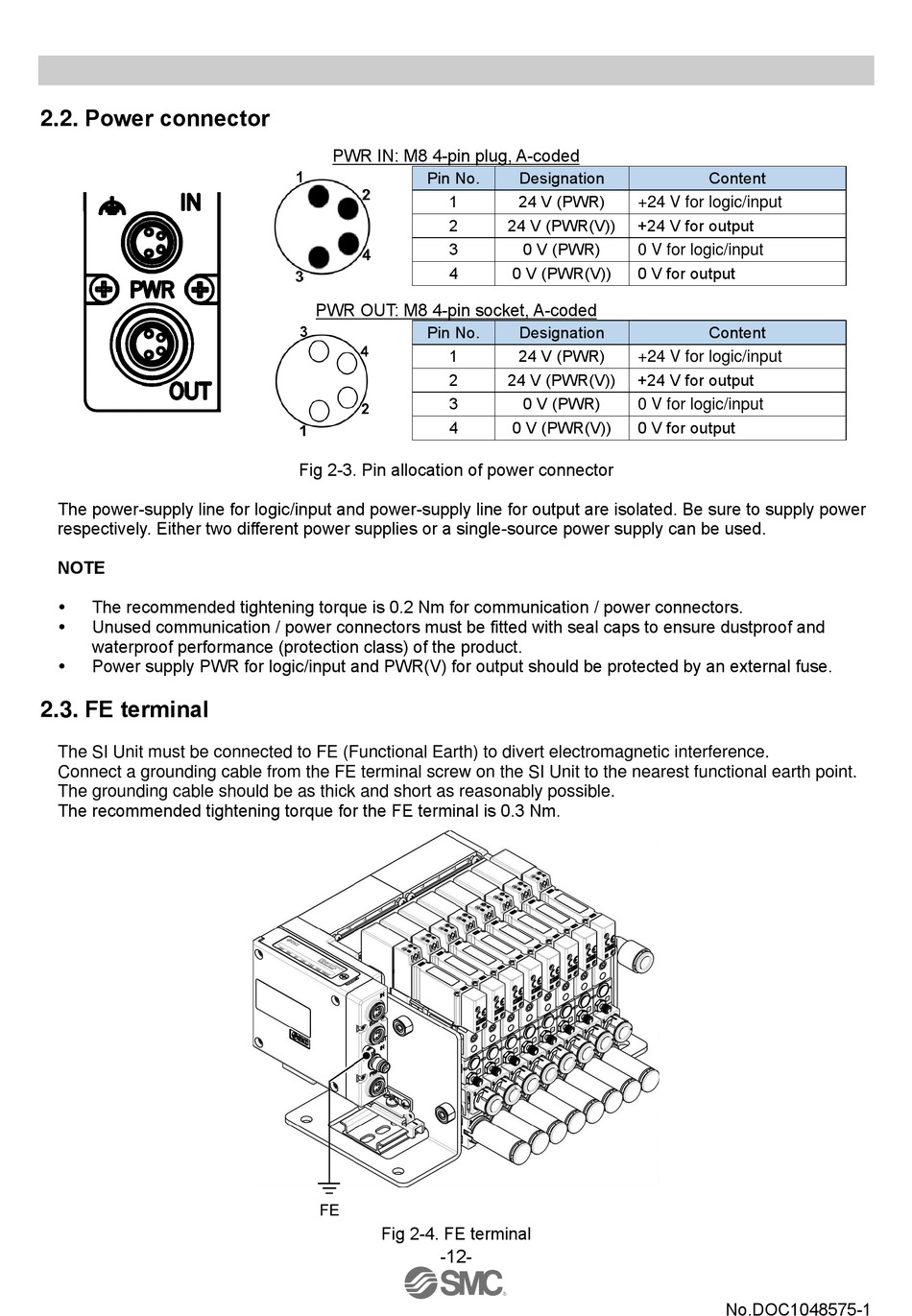

2.2. Power connector

The power-supply line for logic/input and power-supply line for output are isolated. Be sure to supply power
respectively. Either two different power supplies or a single-source power supply can be used.
NOTE
 The recommended tightening torque is 0.2 Nm for communication / power connectors.
 Unused communication / power connectors must be fitted with seal caps to ensure dustproof and
waterproof performance (protection class) of the product.
 Power supply PWR for logic/input and PWR(V) for output should be protected by an external fuse.

2.3. FE terminal

The SI Unit must be connected to FE (Functional Earth) to divert electromagnetic interference.
Connect a grounding cable from the FE terminal screw on the SI Unit to the nearest functional earth point.
The grounding cable should be as thick and short as reasonably possible.
The recommended tightening torque for the FE terminal is 0.3 Nm.
PWR IN: M8 4-pin plug, A-coded
Pin No.
1
2
3
4
PWR OUT: M8 4-pin socket, A-coded
Pin No.
1
2
3
4
Fig 2-3. Pin allocation of power connector
Fig 2-4. FE terminal
-12-
Designation
24 V (PWR)
+24 V for logic/input
24 V (PWR(V)) +24 V for output
0 V (PWR)
0 V for logic/input
0 V (PWR(V)) 0 V for output
Designation
24 V (PWR)
+24 V for logic/input
24 V (PWR(V)) +24 V for output
0 V (PWR)
0 V for logic/input
0 V (PWR(V)) 0 V for output
Content
Content
No.DOC1048575-1
