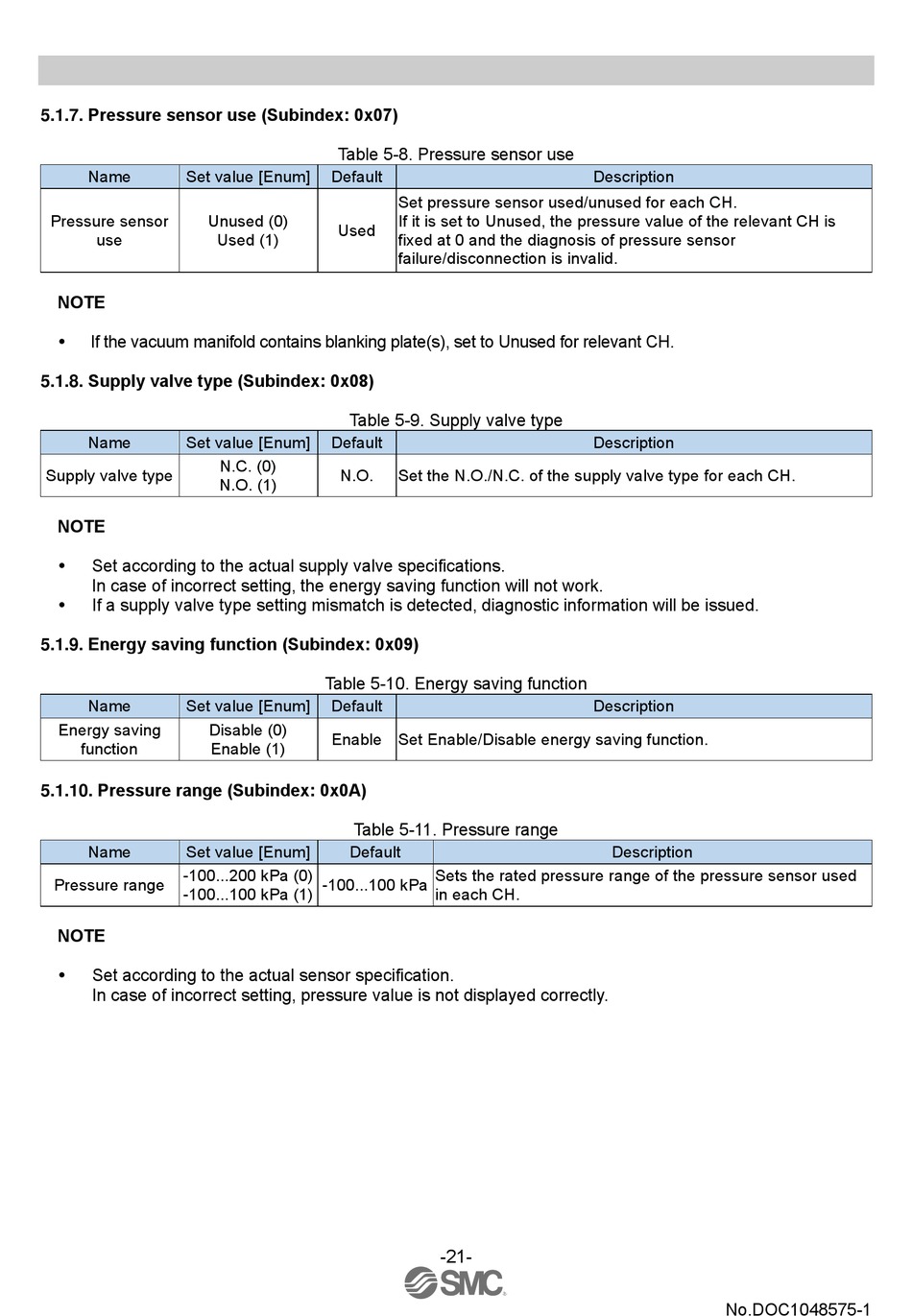

SMC Networks EtherCAT EX260-VEC1 Operation Manual page 21

5.1.7. Pressure sensor use (Subindex: 0x07)
Name Set value [Enum]
Pressure sensor Unused (0)
use
NOTE
 If the vacuum manifold contains blanking plate(s), set to Unused for relevant CH.
5.1.8. Supply valve type (Subindex: 0x08)
Name Set value [Enum]
Supply valve type
NOTE
 Set according to the actual supply valve specifications.
In case of incorrect setting, the energy saving function will not work.
 If a supply valve type setting mismatch is detected, diagnostic information will be issued.
5.1.9. Energy saving function (Subindex: 0x09)
Name Set value [Enum]
Energy saving Disable (0)
function Enable (1)
5.1.10. Pressure range (Subindex: 0x0A)
Name Set value [Enum]
-100...200 kPa (0)
Pressure range
-100...100 kPa (1)
NOTE
 Set according to the actual sensor specification.
In case of incorrect setting, pressure value is not displayed correctly.
Table 5-8. Pressure sensor use
Default
Used
Used (1)
Table 5-9. Supply valve type
Default
N.C. (0)
N.O.
N.O. (1)
Table 5-10. Energy saving function
Default
Enable Set Enable/Disable energy saving function.
Table 5-11. Pressure range
Default
-100...100 kPa
Set pressure sensor used/unused for each CH.
If it is set to Unused, the pressure value of the relevant CH is
fixed at 0 and the diagnosis of pressure sensor
failure/disconnection is invalid.
Set the N.O./N.C. of the supply valve type for each CH.
Sets the rated pressure range of the pressure sensor used
in each CH.
-21-
Description
Description
Description
Description
No.DOC1048575-1
